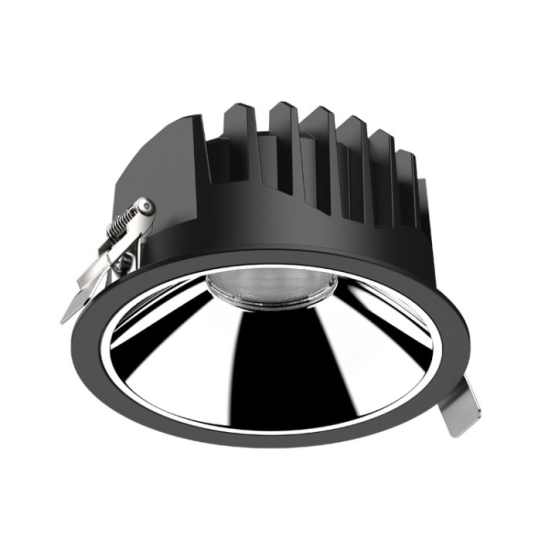

LB3305 Down Light

LB3305: specifications and applications

LB3305 is the ESPEJO LB3305 - DOWN LIGHT lighting model in the lumi indoor catalogue, listed under DOWN LIGHT. This page keeps the specifications, configuration choices and project notes for LB3305 together, so it can be compared with other ESPEJO models without substituting the dimensions or options of a neighbouring article.

The LB3305 catalogue record lists power: 18W. Coordinate this load with the circuit schedule and the selected control gear.

The LB3305 catalogue record lists body dimensions: Ø101x60mm. Check the housing against the architectural detail and the space reserved for installation.

The LB3305 catalogue record lists cut-out: Ø85mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The LB3305 catalogue record lists colour temperature: 3000K, 4000K, 5000K, 6500K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LB3305 catalogue record lists colour rendering: 90. Include this catalogue value in the material and display-lighting comparison for the project.

The LB3305 catalogue record lists optical distribution: 24°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LB3305 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LB3305 catalogue record lists electrical requirement: 220-240VAC. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LB3305 catalogue record lists finish or material: Black+Mirror Silver. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LB3305 catalogue record lists mounting: recessed. Check the fixing arrangement and access for installation before finalising the detail.

Compare LB3305 with the lighting brief for the room, feature or circulation area being designed. Review the available model data alongside the architectural layout, viewing positions and intended control scenes. Keep the article reference visible in the schedule so the design team can coordinate the selected product with its mounting detail and any associated equipment. Project-specific suitability depends on that complete selection.

LB3305 has 3 listed order-code configurations. Examples from this model are LB3305.N.940.PAB+MSR.24.DR, LB3305.W.927.PAB+MSR.24.DR, LB3305.W.930.PAB+MSR.24.DR. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LB3305 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another ESPEJO article.

Main model page: LB3305

Model specifications

Light SourceEpistar
Power18W
Input Voltage220-240VAC
DriverLifud 450mA/25-40VDC
Colour Temperature3000K/4000K/5000K/6500K
IP RatingIP20
Beam Angle24°
Body FinishBlack+Mirror Silver
DimensionsØ101x60mm
Cut-OutØ85mm
MaterialDie Casting Aluminum
WarrantyWritten eligibility and policy confirmation required
Luminous Efficacy80-85lm/W
