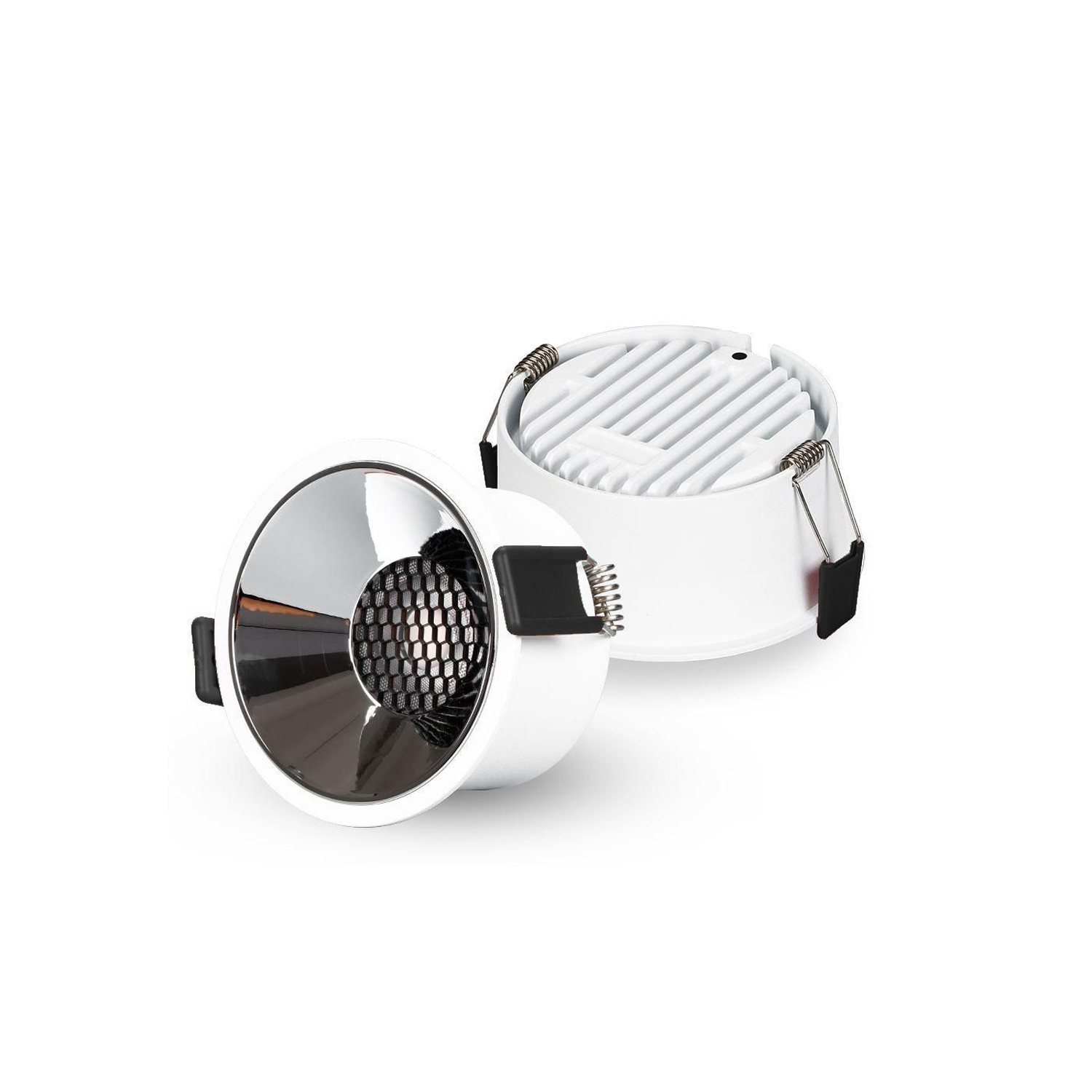

LBE2078 Spot Light
BASE: LBE2078FELIS lighting solution with professional specifications
Specifications at a Glance
8W
Power
2700K3000K4000K6000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP20
Protection Rating
15 / 15° / 24° / 36°
Beam Angle
220-240VAC
Input
Ø75mm
Cutout Size
Ø80*44.5mm
Body Dimensions
White
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
BRIDGELUX LED
LED Chip
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
25 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2078.W.930.PAW+MBK.24.DR
CCT:
3000K
Power:8W
Beam:
24°
Finish:
CRI 90IP20White
LBE2078.W.930.PAW+MBK.36
CCT:
3000K
Power:8W
Beam:
36°
Finish:
CRI 90IP20White
LBE2078.C.960.PAW+CPR.36.DR
CCT:
6000K
Power:8W
Beam:
36°
Finish:
CRI 90IP20White
LBE2078.C.960.PAW+MBK.36.DR
CCT:
6000K
Power:8W
Beam:
36°
Finish:
CRI 90IP20White
LBE2078.C.960.PAW+CPR.24.DR
CCT:
6000K
Power:8W
Beam:
24°
Finish:
CRI 90IP20White
LBE2078.C.960.PAW+MBK.24.DR
CCT:
6000K
Power:8W
Beam:
24°
Finish:
CRI 90IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- Felis
- Family:
- FELIS
- Dimension:
- Ø80*44.5mm
- Input Voltage:
- 220-240VAC
- Light Source:
- BRIDGELUX LED
- Cut-Out:
- Ø75mm
Catalogue Specification
- Power:
- 8W
- Light Source:
- BRIDGELUX LED
- CRI:
- 90
- Colour Temperature:
- 2700K/3000K/4000K/6000K
- Driver:
- EAGERISE DRIVER
- Power Factor:
- 0.5
- Flicker:
- no flicker
- Reflector:
- LENS
- Beam Angle:
- 15°,24°,36°
- Dimensions:
- Ø80*44.5mm
- Cut-Out:
- Ø75mm
- Body Finish:
- Sandy white/black
- Front Ring:
- chrome black/copper

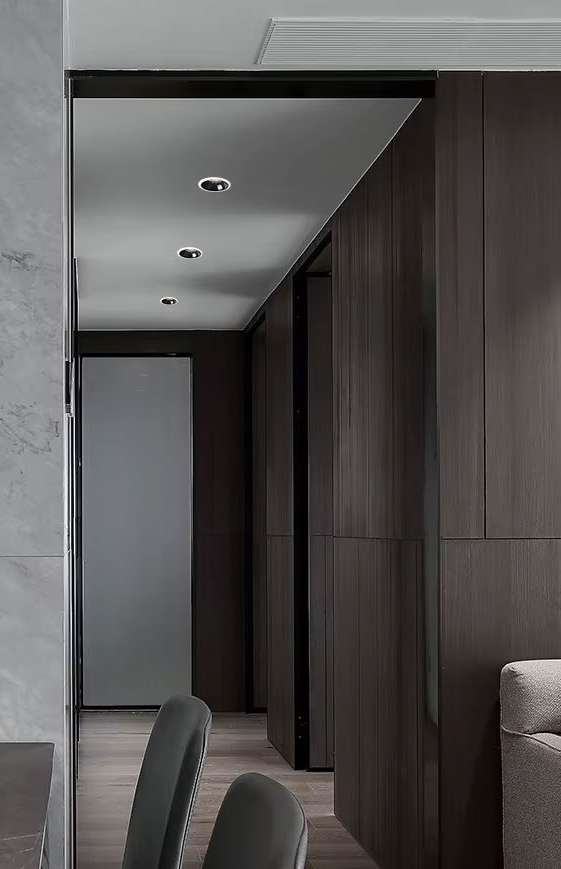

Applications
Jewellery Display
Retail
Configure your product
LBE2078
Order code
Listed configurationLBE2078.W.930.PAW+MBK.24.DR
25 listed configurations · availability requires confirmation
