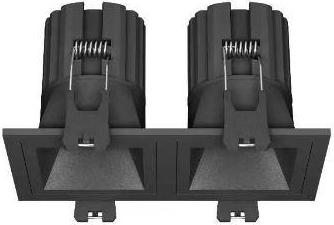

FILLY LBE2046 - SPOT LIGHT
BASE: LBE2046FILLY lighting solution with professional specifications
Specifications at a Glance
9W
Power
500LM
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
200mA
Input
60x66mm
Cutout Size
70x70x72mm
Body Dimensions
BLACKBlackBlack With SandBlack+GoldenGolden+WhitePainted In BlackPainted In Black+Painted In GoldenWHITEWhiteWhite With SandWhite+BlackWhite+GoldenWhite+Painted In Black
Available Finishes
DALINon-DimmableTriac
Dimming Options
Cree 1304
LED Chip
Aluminium
Material
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty
CONFIGURE YOUR PRODUCT
Select your preferred specifications to generate the exact order code.
CRI 80
24°
Generated Order Code
LBE2046.827
Total Available Configurations: 6
Your Configuration
Color Temperature
2700K
Body Finish
Black
Cri
CRI 80
Dimming
⚡
DALIBeam Angle
24°
Need help configuring? Contact our sales team for assistance.
AVAILABLE CONFIGURATIONS
6 standard configurations ready for immediate order
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2046.W.930.PAW.24
CCT:
3000K
Power:9W
Lumen:500LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2046.N.940.PAW.24
CCT:
4000K
Power:9W
Lumen:500LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2046.C.950.PAW.24
CCT:
5000K
Power:9W
Lumen:500LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2046.C.950.PAB.24
CCT:
5000K
Power:9W
Lumen:500LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2046.N.940.PAB.24
CCT:
4000K
Power:9W
Lumen:500LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2046.W.930.PAB.24
CCT:
3000K
Power:9W
Lumen:500LM
Beam:
24°
Finish:
CRI >90IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- FILLY
- Family:
- FILLY
- Dimension:
- 70x70x72mm
- Input Voltage:
- 200mA
- Light Source:
- Cree 1304
- Material:
- Aluminium
- Cut-Out:
- 60x66mm
Catalogue Specification
- Light Source:
- Cree 1304
- Power:
- 9W
- CRI:
- >90
- Driver:
- 200mA36VDC
- Beam Angle:
- 24°
- Colour Temperature:
- 4000K
- Material:
- Aluminium
- Cut-Out:
- 60x66mm
- Body Finish:
- White with sand
- IP Rating:
- IP20
- Dimensions:
- 70x70x72mm
Applications
Retail
Jewellery Display
