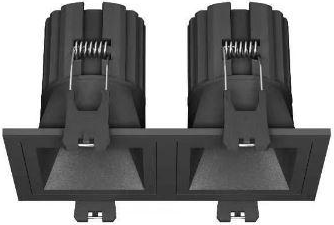

FILLY LBE2047 - SPOT LIGHT
BASE: LBE2047FILLY lighting solution with professional specifications
Specifications at a Glance
2x9W
Power
1000LM
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
200mA
Input
125x66mm
Cutout Size
135x70x72mm
Body Dimensions
BLACKBlackBlack With SandBlack+GoldenGolden+WhitePainted In BlackPainted In Black+Painted In GoldenWHITEWhiteWhite With SandWhite+BlackWhite+GoldenWhite+Painted In Black
Available Finishes
DALINon-DimmableTriac
Dimming Options
Cree 1304
LED Chip
Aluminium
Material
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty
CONFIGURE YOUR PRODUCT
Select your preferred specifications to generate the exact order code.
CRI 80
24°
Generated Order Code
LBE2047.827
Total Available Configurations: 6
Your Configuration
Color Temperature
2700K
Body Finish
Black
Cri
CRI 80
Dimming
⚡
DALIBeam Angle
24°
Need help configuring? Contact our sales team for assistance.
AVAILABLE CONFIGURATIONS
6 standard configurations ready for immediate order
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2047.W.930.PAW.24
CCT:
3000K
Power:2x9W
Lumen:1000LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2047.N.940.PAW.24
CCT:
4000K
Power:2x9W
Lumen:1000LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2047.C.950.PAW.24
CCT:
5000K
Power:2x9W
Lumen:1000LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2047.C.950.PAB.24
CCT:
5000K
Power:2x9W
Lumen:1000LM
Beam:
24°
Finish:
CRI >90IP20Black
LBE2047.N.940.PAB.24
CCT:
4000K
Power:2x9W
Lumen:1000LM
Beam:
24°
Finish:
CRI >90IP20Black
LBE2047.W.930.PAB.24
CCT:
3000K
Power:2x9W
Lumen:1000LM
Beam:
24°
Finish:
CRI >90IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
Product Information
- Category:
- SPOT LIGHT
- Series:
- FILLY
- Family:
- FILLY
- Dimension:
- 135x70x72mm
- Input Voltage:
- 200mA
- Light Source:
- Cree 1304
- Material:
- Aluminium
- Cut-Out:
- 125x66mm
Catalogue Specification
- Light Source:
- Cree 1304
- Power:
- 2x9W
- CRI:
- >90
- Driver:
- 200mA36VDC
- Beam Angle:
- 24°
- Colour Temperature:
- 4000K
- Material:
- Aluminium
- Cut-Out:
- 125x66mm
- Body Finish:
- White with sand
- IP Rating:
- IP20
- Dimensions:
- 135x70x72mm
Applications
Retail
Jewellery Display
