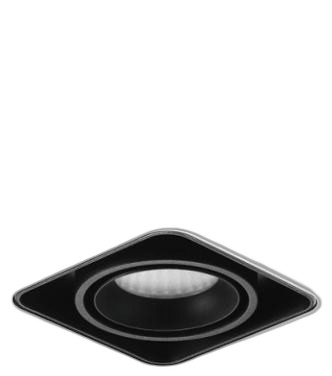

L02004 Ceiling Light
BASE: L02004FILON lighting solution with professional specifications
Specifications at a Glance
10W
Power
1500LM
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP20
Protection Rating
15° / 24° / 36° / 60°
Beam Angle
LENS
UGR / Optics
AC220-240V
Input
3x10
Cutout Size
D100*H100mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
surface-mounted
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
33 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L02004.930.01.04.24
CCT:
3000K
Power:10W
Lumen:1500LM
Beam:
24°
Finish:
CRI 90IP20White
L02004.960.03.60
CCT:
6000K
Power:10W
Lumen:1500LM
Beam:
60°
Finish:
CRI 90IP20Black
L02004.960.03.36
CCT:
6000K
Power:10W
Lumen:1500LM
Beam:
36°
Finish:
CRI 90IP20Black
L02004.960.03.24
CCT:
6000K
Power:10W
Lumen:1500LM
Beam:
24°
Finish:
CRI 90IP20Black
L02004.960.03.15
CCT:
6000K
Power:10W
Lumen:1500LM
Beam:
15°
Finish:
CRI 90IP20Black
L02004.940.03.60
CCT:
4000K
Power:10W
Lumen:1500LM
Beam:
60°
Finish:
CRI 90IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING SURFACE LIGHT
- Series:
- FILON
- Family:
- FILON
- Dimension:
- D100*H100mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM
- Cut-Out:
- 3x10
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 10W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K
- Beam Angle:
- 15°/24°/36°/60°
- CRI:
- 90
- IP Rating:
- IP20
- Body Finish:
- WHITE/BLACK
- Dimensions:
- D100*H100mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
