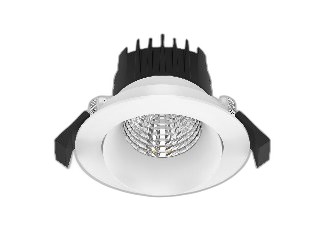

L01073 Ceiling Light
BASE: L01073FILONE lighting solution with professional specifications
Specifications at a Glance
8W
Power
800LM
Lumen Output
2700K3000K4000K5000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP44
Protection Rating
24° / 36°
Beam Angle
REFLECTOR
UGR / Optics
220-240VAC
Input
Ø75-83mm
Cutout Size
Ø90*67mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
CITIZEN COB
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
16 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01073.850.03.36.DR
CCT:
5000K
Power:8W
Lumen:800LM
Beam:
36°
Finish:
CRI 80IP44Black
L01073.840.03.36.DR
CCT:
4000K
Power:8W
Lumen:800LM
Beam:
36°
Finish:
CRI 80IP44Black
L01073.830.03.36.DR
CCT:
3000K
Power:8W
Lumen:800LM
Beam:
36°
Finish:
CRI 80IP44Black
L01073.827.03.36.DR
CCT:
2700K
Power:8W
Lumen:800LM
Beam:
36°
Finish:
CRI 80IP44Black
L01073.850.01.36.DR
CCT:
5000K
Power:8W
Lumen:800LM
Beam:
36°
Finish:
CRI 80IP44White
L01073.840.01.36.DR
CCT:
4000K
Power:8W
Lumen:800LM
Beam:
36°
Finish:
CRI 80IP44White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- FILONE
- Family:
- FILONE
- Dimension:
- Ø90*67mm
- Input Voltage:
- 220-240VAC
- Light Source:
- CITIZEN COB
- Material:
- ALUMINUM
- Cut-Out:
- Ø75-83mm
Catalogue Specification
- Light Source:
- CITIZEN COB
- Power:
- 8W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 800LM
- Beam Angle:
- 24°/36°
- CRI:
- 80
- IP Rating:
- IP44
- Body Finish:
- WHITE/BLACK/SILVER
- Dimensions:
- Ø90*67mm
- Cut-Out:
- Ø75-83mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
