LBE2108 Spot Light

LBE2108: specifications and applications

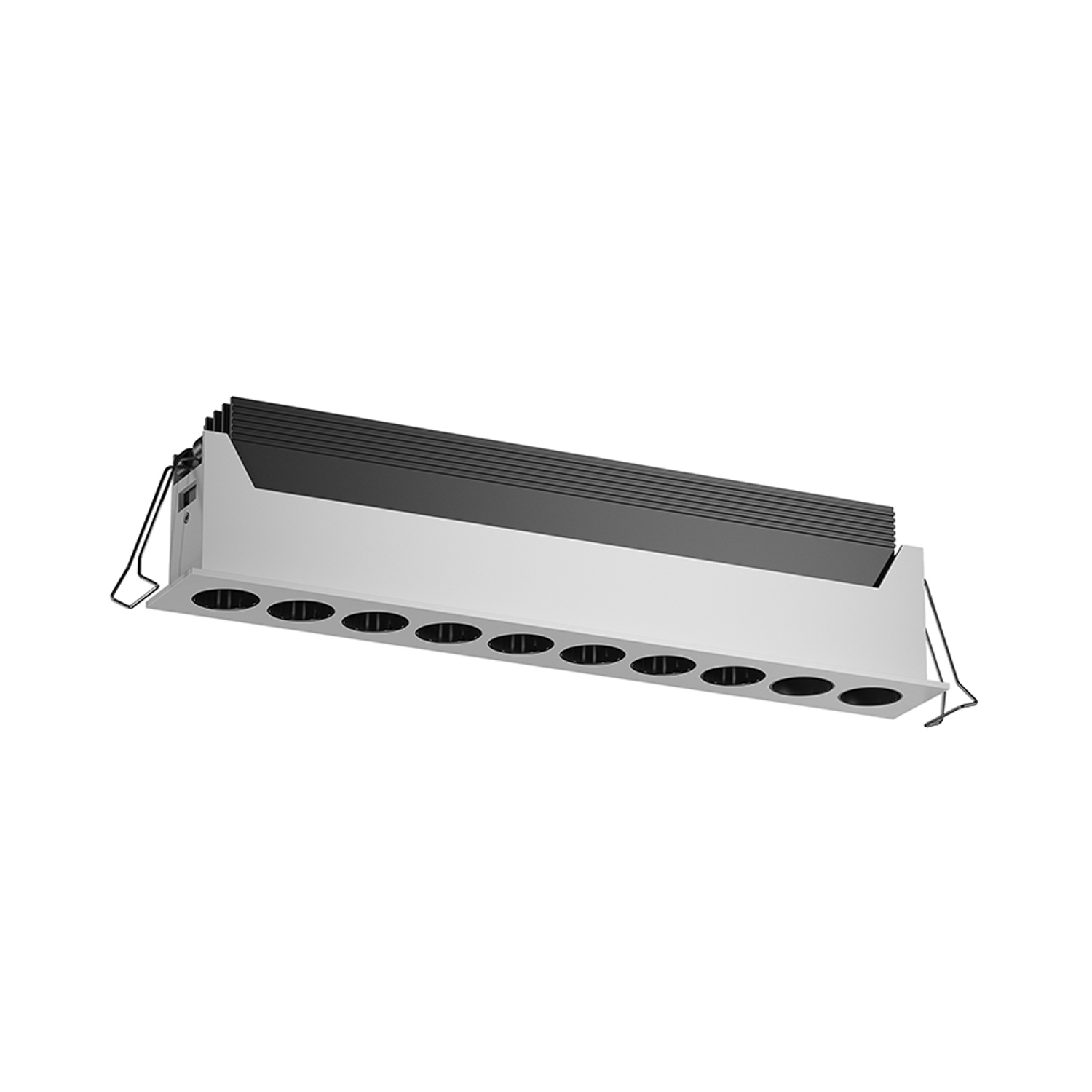

LBE2108 is the LUMIBRIGHT FUSION SERIES 10X2W 242X34X57MM IP20 CEILING RECESSED LINEAR SPOTLIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LBE2108 together, so it can be compared with other FUSION models without substituting the dimensions or options of a neighbouring article.

The LBE2108 catalogue record lists power: 20W. Coordinate this load with the circuit schedule and the selected control gear.

The LBE2108 catalogue record lists body dimensions: 242x34x57mm. Check the housing against the architectural detail and the space reserved for installation.

The LBE2108 catalogue record lists cut-out: 234x25mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The LBE2108 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LBE2108 catalogue record lists colour rendering: 90. Include this catalogue value in the material and display-lighting comparison for the project.

The LBE2108 catalogue record lists optical distribution: 15°/24°/38°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LBE2108 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LBE2108 catalogue record lists electrical requirement: 220-240VAC. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LBE2108 catalogue record lists finish or material: Matt White/Matt Black. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LBE2108 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

Linear lighting can form part of a workplace ceiling, a circulation route, joinery or a continuous architectural reveal. Plan the run around the actual module dimensions and connection details, with accessible control gear and an agreed approach at corners and ends. Compare the illuminated effect on the intended surface rather than using physical length as a substitute for a lighting calculation.

The current record for LBE2108 does not supply a complete list of order-code combinations. Use this base reference when requesting the model schedule, and confirm the exact finish, optical selection, electrical arrangement and included components before an order is specified. Missing options are not presented as available configurations.

For a LBE2108 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another FUSION article.

Main model page: LBE2108

Model specifications

Light SourceLuminus LED
Product TypeRecessed spot light
Power20W
Input Voltage220-240VAC
Lumen Output1300lm
Colour Temperature2700K/3000K/4000K/5000K
CRI90
IP RatingIP20
Beam Angle15°/24°/38°
Output Voltage30VDC
Output Current600mA
MaterialAluminium
Body FinishMatt White/Matt Black
Dimensions242x34x57mm
Cut-Out234x25mm
LED Life Time50,000Hrs
WarrantyWritten eligibility and policy confirmation required

LBE2108 datasheet
