LBE2113 Spot Light

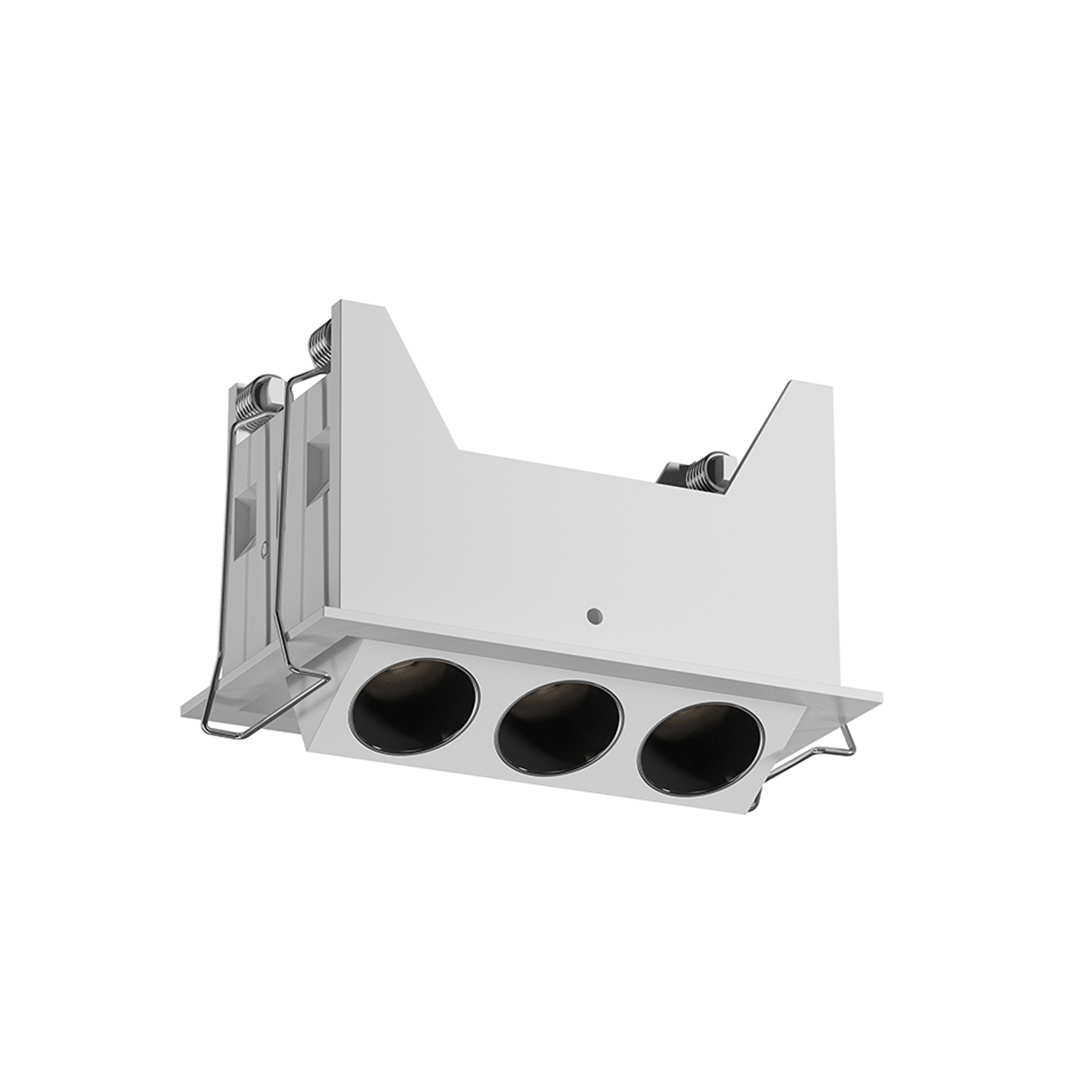

BASE: LBE2113FUSION SERIES 3X2W 89X51X50MM IP20 CEILING RECESSED ADJUSTABLE LINEAR INTAKE FRAME SPOTLIGHT
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusNo standard configurations available.
Please contact us for custom options.
Product Information
- Category:
- SPOT LIGHT
- Family:
- FUSION
- Dimension:
- 89x51x50mm
- Input Voltage:
- 220-240VAC
- Light Source:
- Luminus LED
- Material:
- Aluminium
- Life Time:
- 50,000Hrs
- Operating Temp:
- -20°C~+40°C
- Usage:
- INDOOR
- Cut-Out:
- 82x44mm
Catalogue Specification
- Light Source:
- Luminus LED
- Product Type:
- Recessed adjustable spot light
- Power:
- 6W
- Input Voltage:
- 220-240VAC
- Lumen Output:
- 390lm
- Colour Temperature:
- 2700K/3000K/4000K/5000K
- CRI:
- 90
- IP Rating:
- IP20
- Beam Angle:
- 15°/24°/38°
- Output Voltage:
- 9VDC
- Output Current:
- 500mA
- Material:
- Aluminium
- Body Finish:
- Matt White/Matt Black
- Dimensions:
- 89x51x50mm
- Cut-Out:
- 82x44mm
- LED Life Time:
- 50,000Hrs
- Warranty:
- Written eligibility and policy confirmation required
Applications
LBE2113: specifications and applications
LBE2113 is the LUMIBRIGHT FUSION SERIES 3X2W 89X51X50MM IP20 CEILING RECESSED ADJUSTABLE LINEAR INTAKE FRAME SPOTLIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LBE2113 together, so it can be compared with other FUSION models without substituting the dimensions or options of a neighbouring article.
The LBE2113 catalogue record lists power: 6W. Coordinate this load with the circuit schedule and the selected control gear.
The LBE2113 catalogue record lists body dimensions: 89x51x50mm. Check the housing against the architectural detail and the space reserved for installation.
The LBE2113 catalogue record lists cut-out: 82x44mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.
The LBE2113 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.
The LBE2113 catalogue record lists colour rendering: 90. Include this catalogue value in the material and display-lighting comparison for the project.
The LBE2113 catalogue record lists optical distribution: 15°/24°/38°. Compare the listed option with target distance, spacing and the surface being illuminated.
The LBE2113 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.
The LBE2113 catalogue record lists electrical requirement: 220-240VAC. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.
The LBE2113 catalogue record lists finish or material: Matt White/Matt Black. Review the stated construction alongside adjoining architectural materials and sample approvals.
The LBE2113 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.
Linear lighting can form part of a workplace ceiling, a circulation route, joinery or a continuous architectural reveal. Plan the run around the actual module dimensions and connection details, with accessible control gear and an agreed approach at corners and ends. Compare the illuminated effect on the intended surface rather than using physical length as a substitute for a lighting calculation.
The current record for LBE2113 does not supply a complete list of order-code combinations. Use this base reference when requesting the model schedule, and confirm the exact finish, optical selection, electrical arrangement and included components before an order is specified. Missing options are not presented as available configurations.
For a LBE2113 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another FUSION article.
