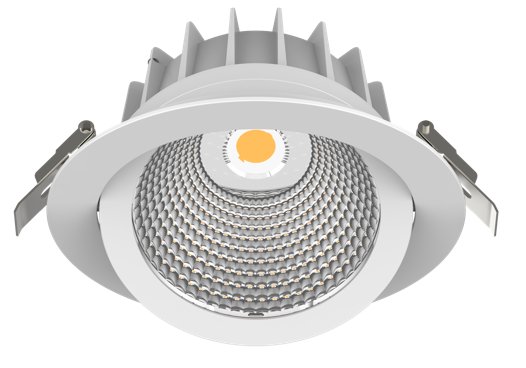

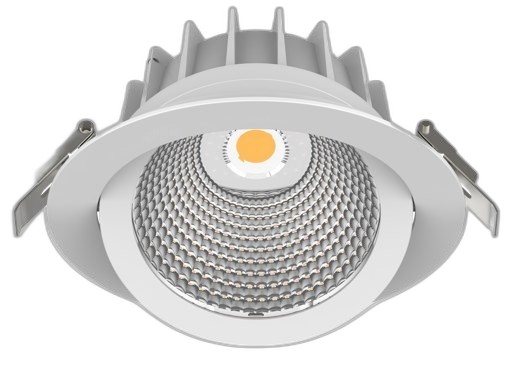

L01083 Ceiling Light
BASE: L01083GARNET lighting solution with professional specifications
Specifications at a Glance
35W
Power
3250-3700LM
Lumen Output
2700K3000K4000K5000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP54
Protection Rating
15° / 24° / 36° / 60°
Beam Angle
REFLECTOR
UGR / Optics
220-240VAC
Input
Ø160-170mm
Cutout Size
Ø180x81mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
32 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01083.850.03.60.DR
CCT:
5000K
Power:35W
Lumen:3250-3700LM
Beam:
60°
Finish:
CRI 80IP54Black
L01083.850.01.60.DR
CCT:
5000K
Power:35W
Lumen:3250-3700LM
Beam:
60°
Finish:
CRI 80IP54White
L01083.850.03.36.DR
CCT:
5000K
Power:35W
Lumen:3250-3700LM
Beam:
36°
Finish:
CRI 80IP54Black
L01083.850.01.36.DR
CCT:
5000K
Power:35W
Lumen:3250-3700LM
Beam:
36°
Finish:
CRI 80IP54White
L01083.850.03.24.DR
CCT:
5000K
Power:35W
Lumen:3250-3700LM
Beam:
24°
Finish:
CRI 80IP54Black
L01083.850.01.24.DR
CCT:
5000K
Power:35W
Lumen:3250-3700LM
Beam:
24°
Finish:
CRI 80IP54White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- GARNET
- Family:
- GARNET
- Dimension:
- Ø180x81mm
- Input Voltage:
- 220-240VAC
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM
- Cut-Out:
- Ø160-170mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 35W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 3250-3700LM
- Beam Angle:
- 15°/24°/36°/60°
- CRI:
- 80
- IP Rating:
- IP54
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø180x81mm
- Cut-Out:
- Ø160-170mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR GLASS
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
Configure your product
L01083
Order code
Listed configurationL01083.850.03.60.DR
32 listed configurations · availability requires confirmation
