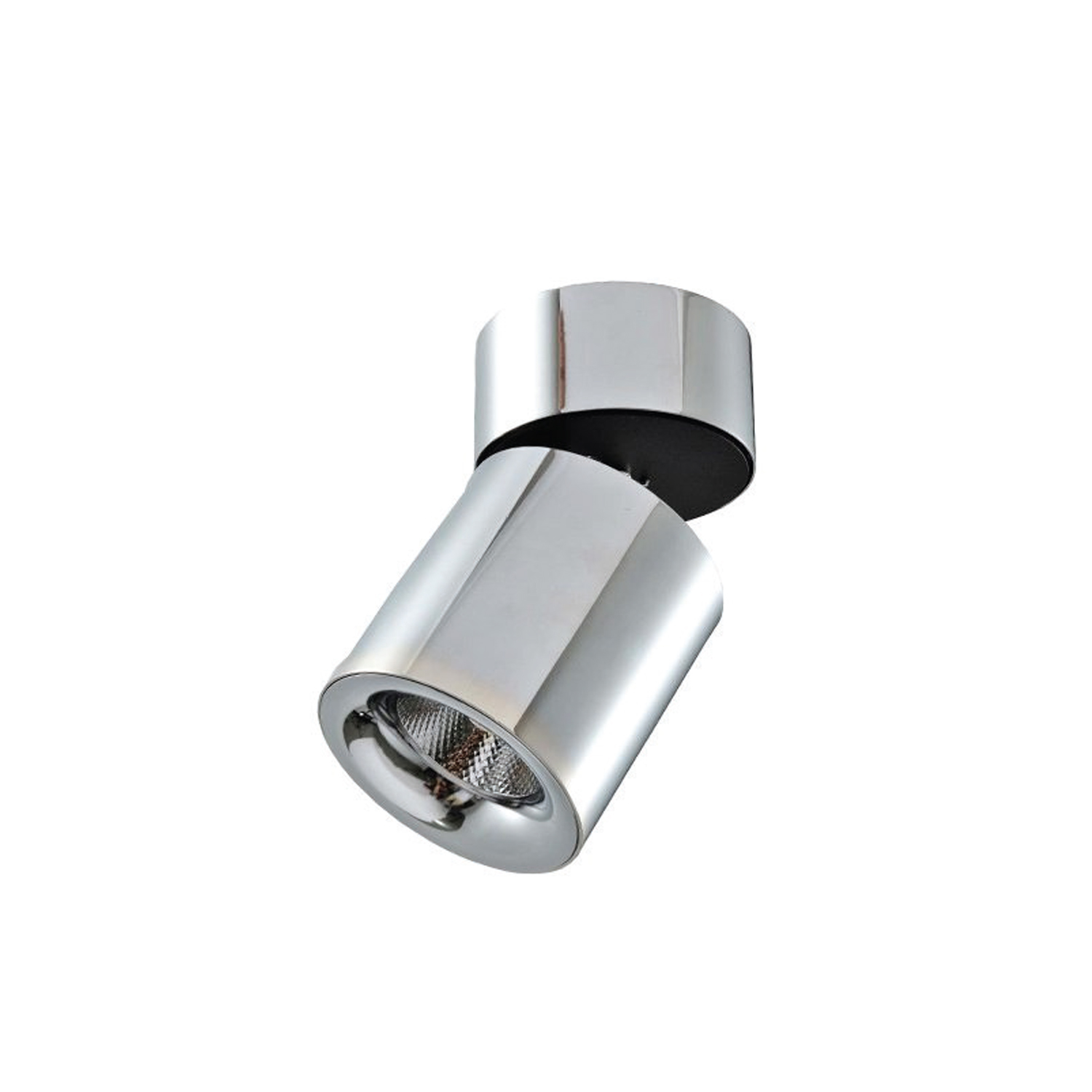

LB2833 Spot Light
BASE: LB2833HALCON lighting solution with professional specifications
Specifications at a Glance
10W
Power
800lm
Lumen Output
3000K4000K5000K6000K
Available Colour Temperatures
CRI >80
Colour Rendering Index
IP20
Protection Rating
24° / 36° / 60°
Beam Angle
UGR<19
UGR / Optics
85-265VAC
Input
Ø80x82mm
Body Dimensions
BlackChromeMirror BlackPainted In GoldenWhite
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB
LED Chip
Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
51 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB2833.W.830.MBK.24
CCT:
3000K
Power:10W
Lumen:800lm
Beam:
24°
Finish:
CRI >80IP20Black
LB2833.W.830.WBK.24
CCT:
3000K
Power:10W
Lumen:800lm
Beam:
24°
Finish:
CRI >80IP20Black
LB2833.W.830.WWH.24
CCT:
3000K
Power:10W
Lumen:800lm
Beam:
24°
Finish:
CRI >80IP20White
LB2833.W.830.CRM.24
CCT:
3000K
Power:10W
Lumen:800lm
Beam:
24°
Finish:
CRI >80IP20Silver
LB2833.W.860.WWH.60
CCT:
6000K
Power:10W
Lumen:800lm
Beam:
60°
Finish:
CRI >80IP20White
LB2833.W.850.WWH.60
CCT:
5000K
Power:10W
Lumen:800lm
Beam:
60°
Finish:
CRI >80IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
Product Information
- Category:
- SPOT LIGHT
- Series:
- HALCON
- Family:
- HALCON
- Dimension:
- Ø80x82mm
- Input Voltage:
- 85-265VAC
- Light Source:
- Bridgelux COB
- Material:
- Aluminum
Catalogue Specification
- Light Source:
- Bridgelux COB
- Power:
- 10W
- Input Voltage:
- 85-265VAC
- Lumen Output:
- 800lm
- CRI:
- >80
- Colour Temperature:
- 3000K/4000K/6000K
- Beam Angle:
- 24°/ 36° / 60°
- Dimensions:
- Ø80x82mm
- Material:
- Aluminum
- Body Finish:
- White/black/chrome/golden
- IP Rating:
- IP20
- Warranty:
- Written eligibility and policy confirmation required
Applications
Hospitality
Jewellery Display
Retail
Configure your product
LB2833
Order code
Listed configurationLB2833.W.830.MBK.24
51 listed configurations · availability requires confirmation
