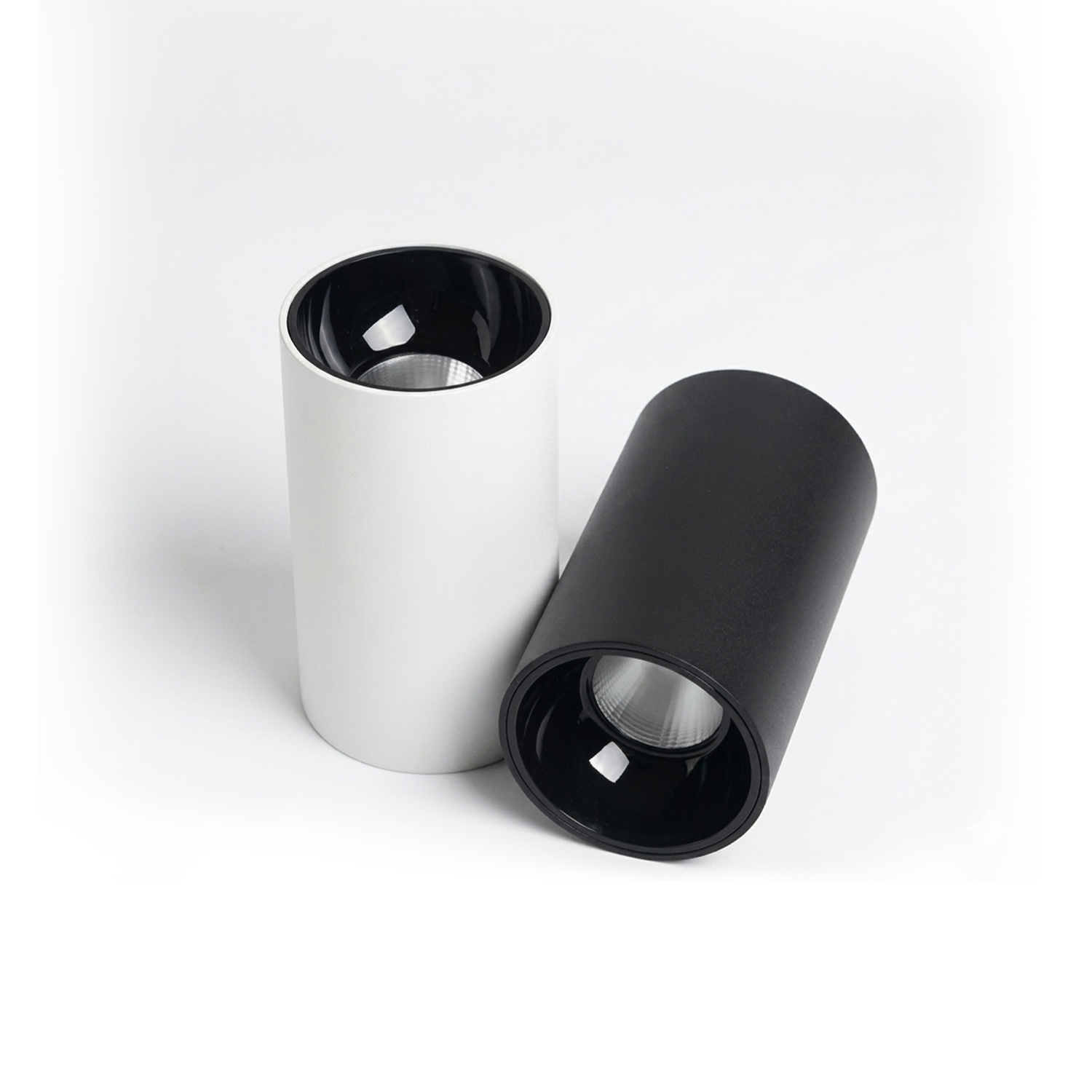

LB2966 Spot Light

LB2966: specifications and applications

LB2966 is the HALCON LB2966 - SPOT LIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LB2966 together, so it can be compared with other HALCON models without substituting the dimensions or options of a neighbouring article.

The LB2966 catalogue record lists power: 7W. Coordinate this load with the circuit schedule and the selected control gear.

The LB2966 catalogue record lists body dimensions: Φ93.5×H95mm. Check the housing against the architectural detail and the space reserved for installation.

The LB2966 catalogue record lists colour temperature: 3000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LB2966 catalogue record lists colour rendering: >90. Include this catalogue value in the material and display-lighting comparison for the project.

The LB2966 catalogue record lists optical distribution: 36°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LB2966 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LB2966 catalogue record lists electrical requirement: AC220-240V. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LB2966 catalogue record lists finish or material: Black+Golden. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LB2966 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

Accent lighting for retail, hospitality and residential interiors starts with the object or surface that needs emphasis. Compare the selected optic with the target size and mounting distance, and review colour appearance alongside surrounding finishes. A clear model and configuration reference helps the lighting schedule distinguish focused feature lighting from the general lighting elsewhere in the same space.

LB2966 has 4 listed order-code configurations. Examples from this model are LB2966.W.930.WBK+WGL.36, LB2966.W.830.WBK+WGL.36.DDIM, LB2966.W.930.WBK+CPR.36. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LB2966 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another HALCON article.

Main model page: LB2966

Model specifications

Input VoltageAC220-240V
Light SourceCREE cob
Power7W
Lumen Output600lm
CRI>90
Beam Angle36°
IP RatingIP20
DimensionsΦ93.5×H95mm
WarrantyWritten eligibility and policy confirmation required
DriverEaglerise driver
Body FinishBlack+Golden
Colour Temperature3000K

LB2966 datasheet
