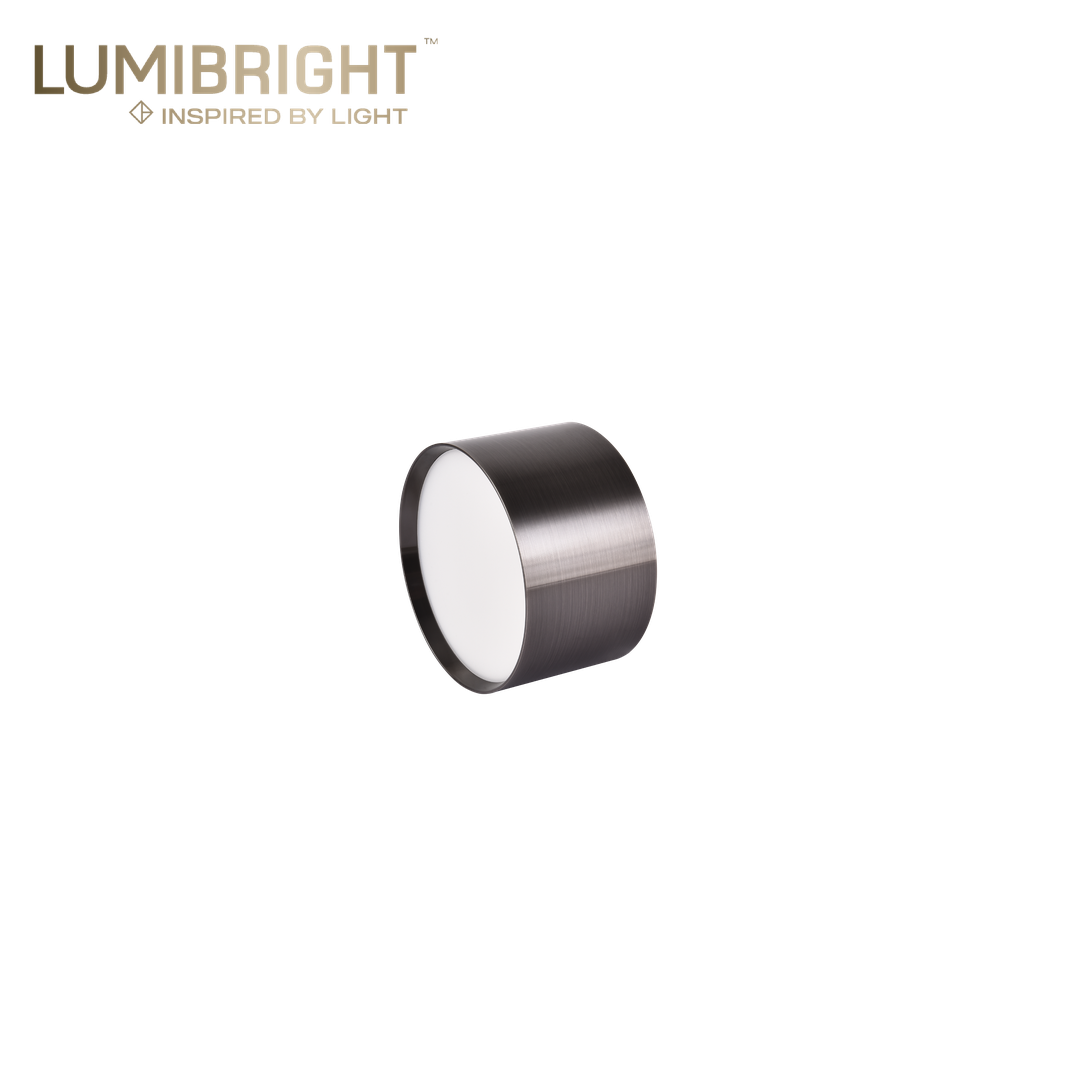

LBE3013 Down Light
BASE: LBE3013HALCON lighting solution with professional specifications
Specifications at a Glance
22W
Power
1870lm
Lumen Output
3000K
Available Colour Temperatures
CRI 70
Colour Rendering Index
IP20
Protection Rating
120°
Beam Angle
UGR<19
UGR / Optics
220-240VAC
Input
φ125xH75mm
Body Dimensions
BlackWhite
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
ceiling-recessed
Mounting Type
COB
LED Chip
50,000Hrs
LED Life Time
Aluminium
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
2 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE3013.W.830.WWH.120
CCT:
3000K
Power:22W
Lumen:1870lm
Beam:
120°
Finish:
CRI 70IP20White
LBE3013.W.830.WBK.120
CCT:
3000K
Power:22W
Lumen:1870lm
Beam:
120°
Finish:
CRI 70IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- DOWN LIGHT
- Series:
- Halcon
- Family:
- HALCON
- Dimension:
- φ125xH75mm
- Input Voltage:
- 220-240VAC
- Light Source:
- COB
- Material:
- Aluminium
- Life Time:
- 50,000Hrs
Catalogue Specification
- Light Source:
- COB
- Product Type:
- SURFACE DOWNLIGHT
- Power:
- 22W
- Input Voltage:
- 220-240VAC
- Lumen Output:
- 1870lm
- Colour Temperature:
- 2700K/3000K/4000K/5000K/6000K
- CRI:
- 70
- IP Rating:
- IP20
- Beam Angle:
- 120°
- Material:
- Aluminium
- Body Finish:
- Black, White
- Dimensions:
- φ125xH75mm
- LED Life Time:
- 50,000Hrs
- Warranty:
- Written eligibility and policy confirmation required
Applications
Hospitality
Jewellery Display
Office
Retail
Configure your product
LBE3013
Order code
Listed configurationLBE3013.W.830.WWH.120
2 listed configurations · availability requires confirmation
