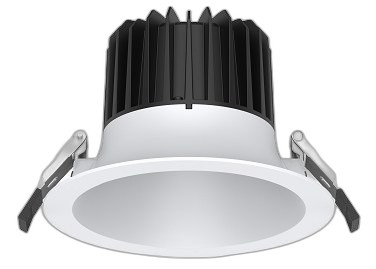

L01088 Ceiling Light
BASE: L01088HAMES lighting solution with professional specifications
Specifications at a Glance
35W
Power
3400LM
Lumen Output
Switch
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP44
Protection Rating
24° / 36° / 60°
Beam Angle
REFLECTOR
UGR / Optics
220-240VAC
Input
Ø195-230mm
Cutout Size
Ø240xH142
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
6 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01088.8CCTS.03.60.DR
CCT:
Switch
Power:35W
Lumen:3400LM
Beam:
60°
Finish:
CRI 80IP44Black
L01088.8CCTS.03.36.DR
CCT:
Switch
Power:35W
Lumen:3400LM
Beam:
36°
Finish:
CRI 80IP44Black
L01088.8CCTS.03.24.DR
CCT:
Switch
Power:35W
Lumen:3400LM
Beam:
24°
Finish:
CRI 80IP44Black
L01088.8CCTS.01.60.DR
CCT:
Switch
Power:35W
Lumen:3400LM
Beam:
60°
Finish:
CRI 80IP44White
L01088.8CCTS.01.36.DR
CCT:
Switch
Power:35W
Lumen:3400LM
Beam:
36°
Finish:
CRI 80IP44White
L01088.8CCTS.01.24.DR
CCT:
Switch
Power:35W
Lumen:3400LM
Beam:
24°
Finish:
CRI 80IP44White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- HAMES
- Family:
- HAMES
- Dimension:
- Ø240xH142
- Input Voltage:
- 220-240VAC
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM
- Cut-Out:
- Ø195-230mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 35W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 3400LM
- Beam Angle:
- 24°/36°/60°
- CRI:
- 80
- IP Rating:
- IP44
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø240xH142
- Cut-Out:
- Ø195-230mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR GLASS
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
Configure your product
L01088
Order code
Listed configurationL01088.8CCTS.03.60.DR
6 listed configurations · availability requires confirmation
