LUMIBRIGHT
HASSA
LUMI INDOOR
ceiling-recessed
IP65

L01280 Ceiling Light

BASE: L01280

HASSA lighting solution with professional specifications

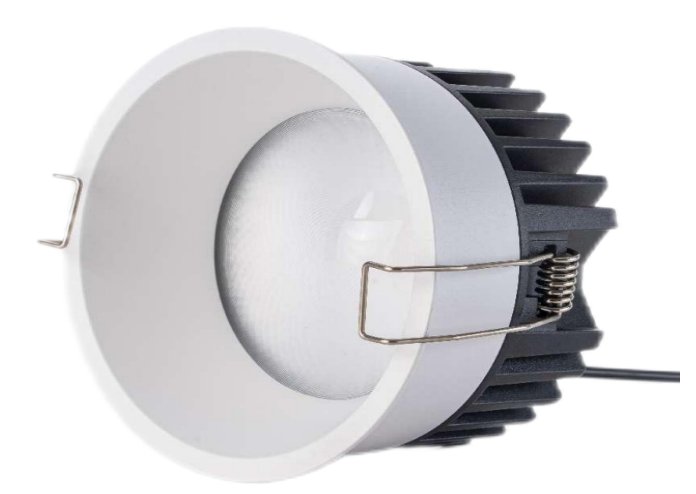

HASSA L01280 - CEILING RECESSED LIGHT
Specifications at a Glance
20W
Power
2700K3000K4000K6000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP65
Protection Rating
60°
Beam Angle
Lens
UGR / Optics
220-240VAC(With Driver)
Input
Ø115mm
Cutout Size
Ø120×H68mm
Body Dimensions
ceiling-recessed
Mounting Type
Epistar SMD
LED Chip
ALUMINUM
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

8 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01280.927.01.60.DR
CCT:
2700K
Power:20W
Lumen:140lm/W
Beam:
60°
CRI 90IP65
L01280.927.03.60.DR
CCT:
2700K
Power:20W
Lumen:140lm/W
Beam:
60°
CRI 90IP65
L01280.930.01.60.DR
CCT:
3000K
Power:20W
Lumen:140lm/W
Beam:
60°
CRI 90IP65
L01280.930.03.60.DR
CCT:
3000K
Power:20W
Lumen:140lm/W
Beam:
60°
CRI 90IP65
L01280.940.01.60.DR
CCT:
4000K
Power:20W
Lumen:140lm/W
Beam:
60°
CRI 90IP65
L01280.940.03.60.DR
CCT:
4000K
Power:20W
Lumen:140lm/W
Beam:
60°
CRI 90IP65

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
CEILING RECESSED LIGHT
Series:
HASSA
Family:
HASSA
Dimension:
Ø120×H68mm
Input Voltage:
220-240VAC(With Driver)
Light Source:
Epistar SMD
Material:
ALUMINUM
Cut-Out:
Ø115mm

Catalogue Specification

Light Source:
Epistar SMD
Power:
20W
Input Voltage:
220-240VAC(With Driver)
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Beam Angle:
60°
CRI:
90
IP Rating:
IP65
Body Finish:
WHITE/BLACK
Dimensions:
Ø120×H68mm
Cut-Out:
Ø115mm
Optics:
Lens
Cover / Lens:
opaque glass
Material:
ALUMINUM
Luminous Efficacy:
140lm/W

Applications

Jewellery Display
Office
