Lumi Indoor
HERMES
Application inspiration · not a project reference
HERMES is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
HERMES
HERMES is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 11 article codes under this family, including LB2821, LB2822, LB2907. For LB2821, published values include power: 12W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: Ø80x70mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the HERMES articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

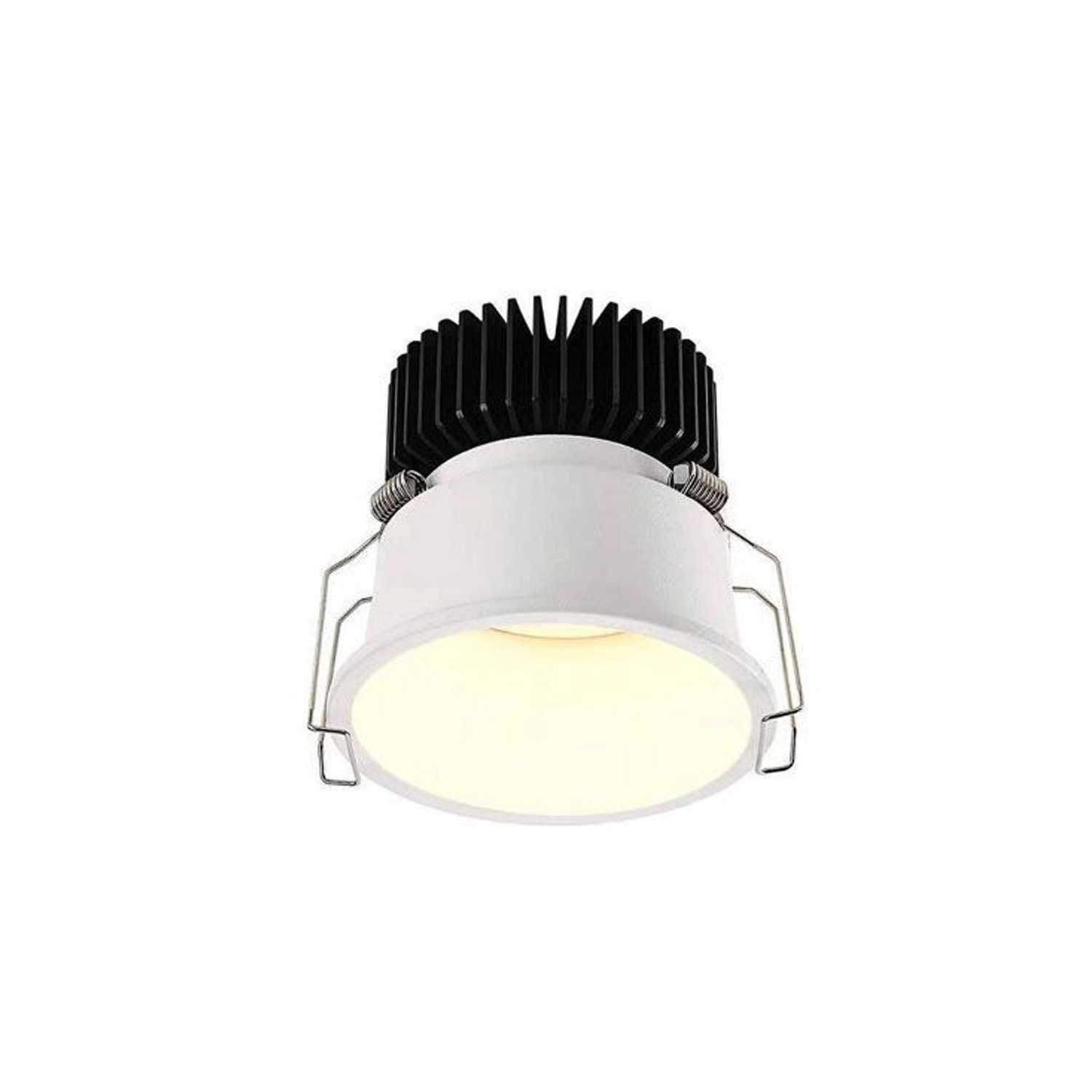

| LB2821 | Wattage12W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ80x70mm | Cut-outØ72mm |

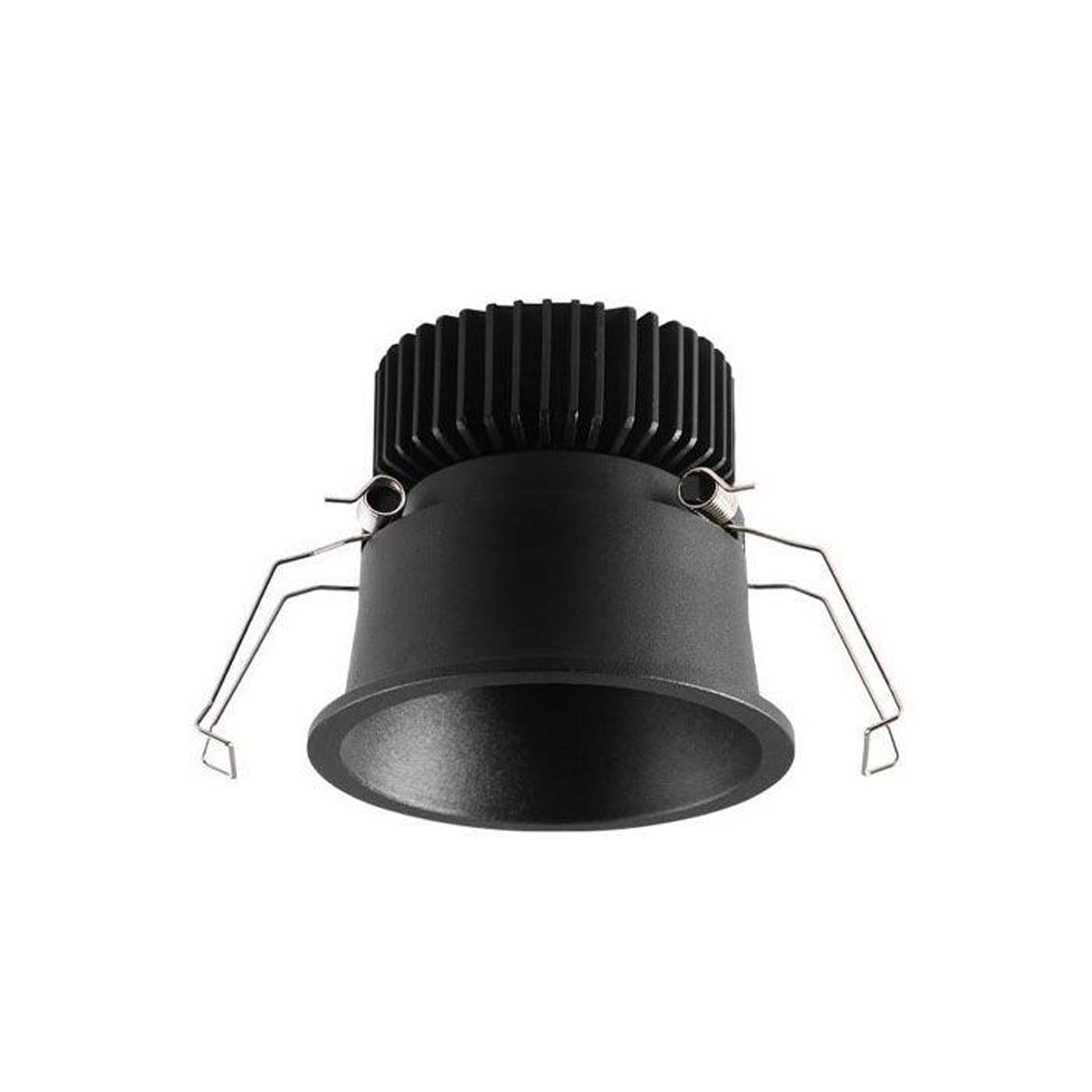

| LB2822 | Wattage20W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ85x92mm | Cut-outØ75mm |

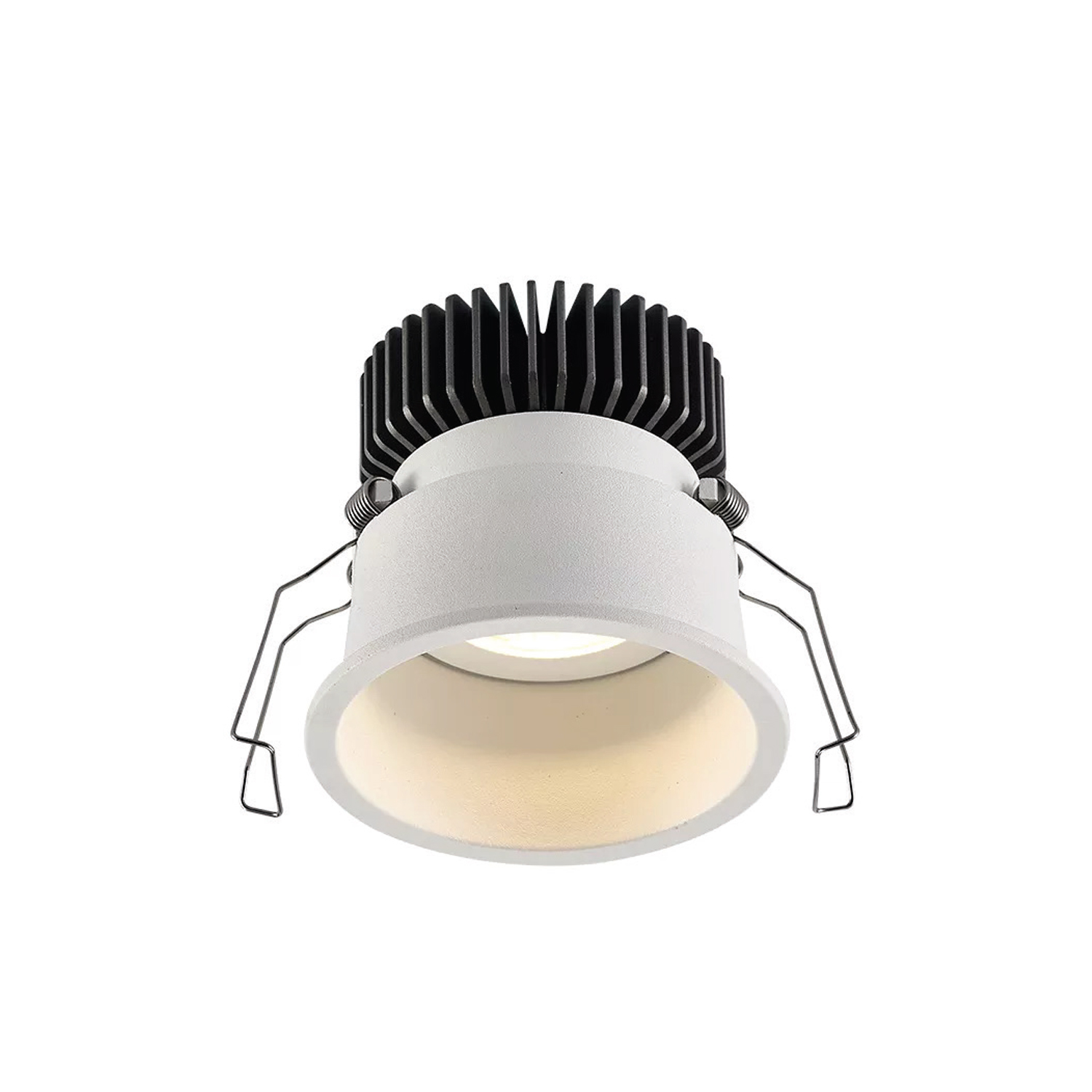

| LB2907 | Wattage10W | CCT3000K | IPIP44 | DimensionsØ80x70mm | Cut-outØ70mm |

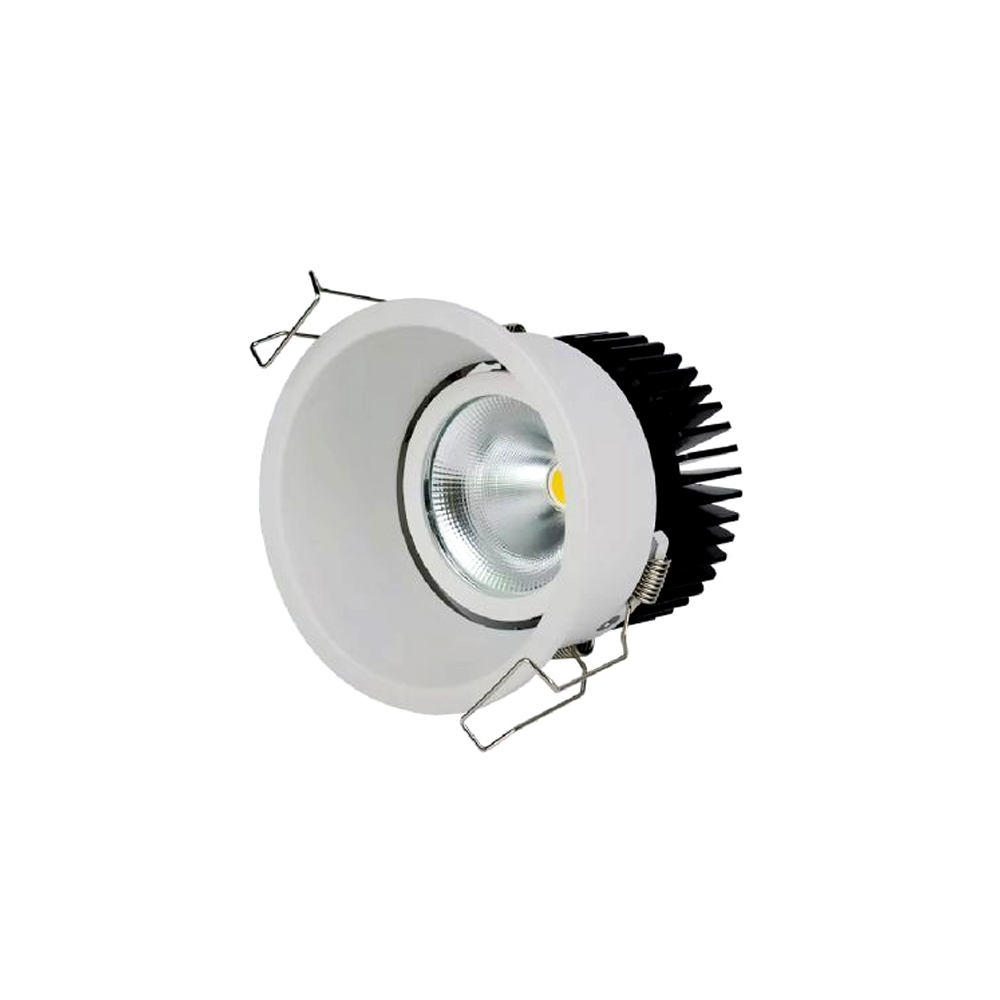

| LB2916 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ85XH60mm | Cut-outØ72mm |

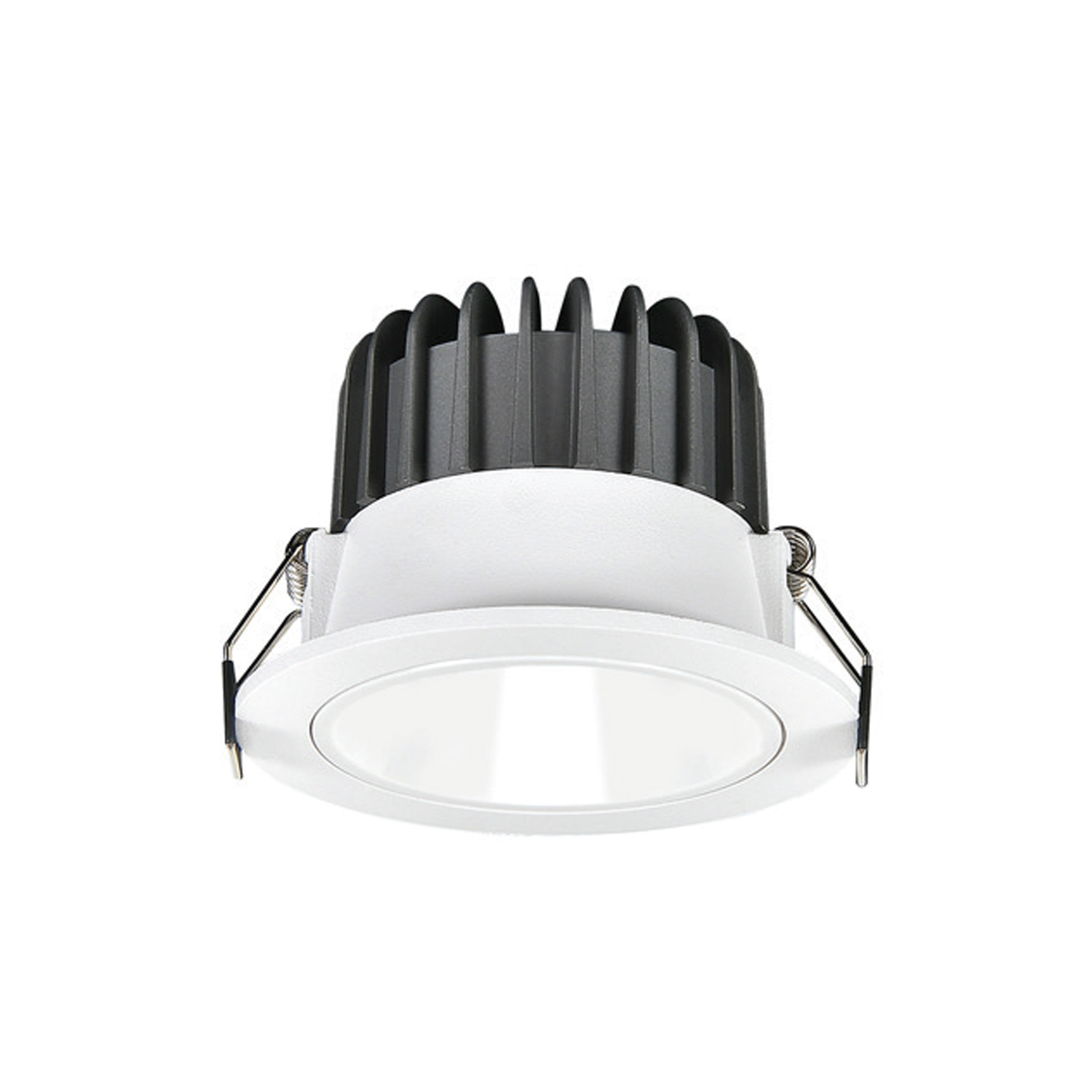

| LB2917 | Wattage10W | CCT3000K | IPIP20 | DimensionsØ94XH64mm | Cut-outØ80mm |
| LB3308 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ130x120mm | Cut-outØ117mm |

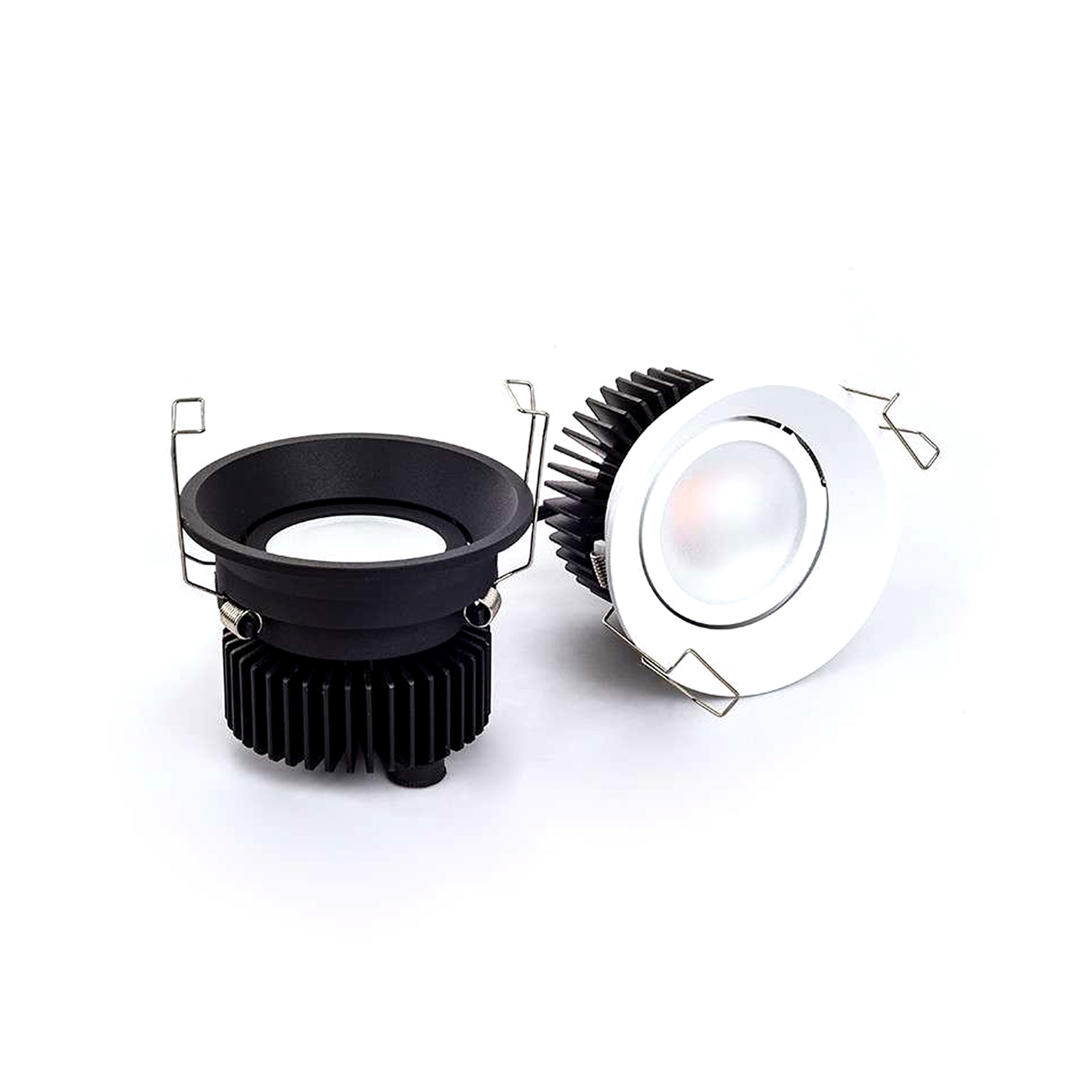

| LB3318 | Wattage25W | CCT3000K | IPIP20 | DimensionsØ105XH83mm | Cut-outØ92mm |

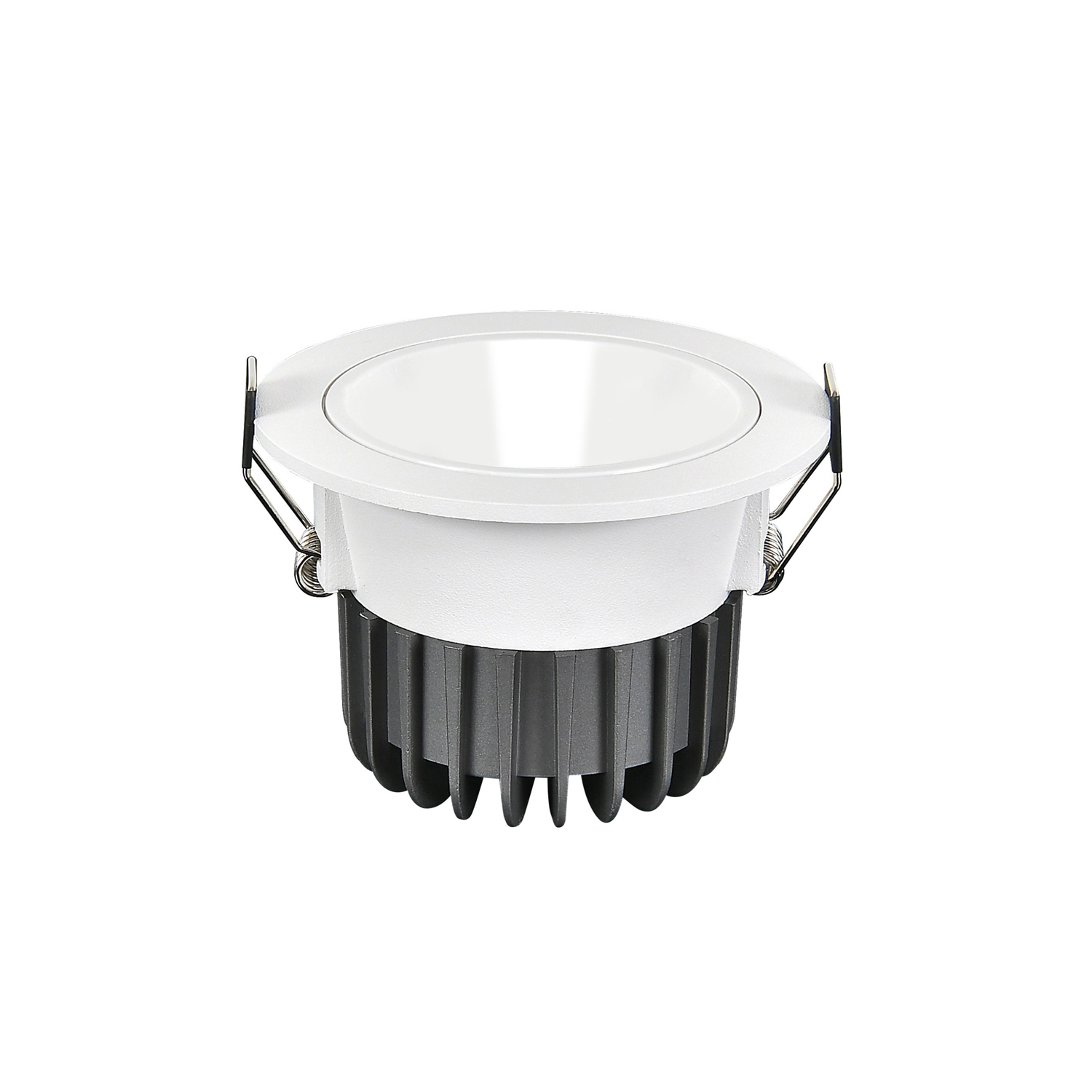

| LB3319 | Wattage20W | CCT3000K | IPIP20 | DimensionsØ140XH74mm | Cut-outØ120mm |
| LBT2044 | Wattage10W | CCT3000K | IPIP20 | DimensionsØ80x70mm | Cut-outØ70mm |

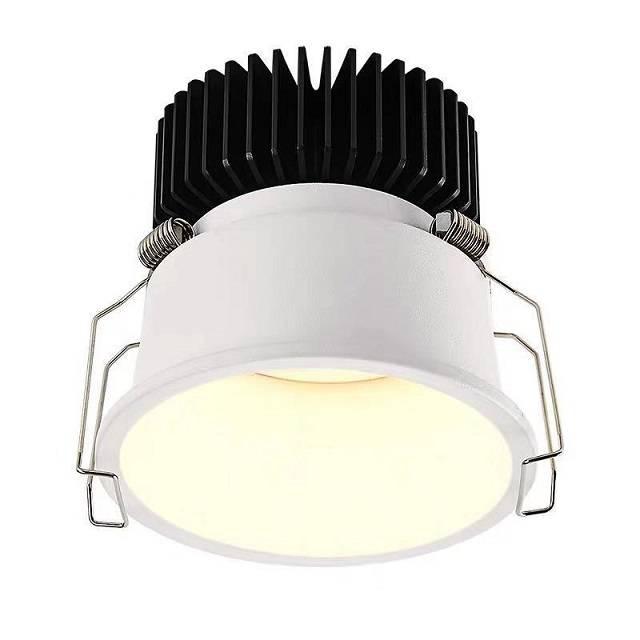

| LBT2117 | Wattage12W | CCT3000K | IPIP20 | Dimensions83xH73.5mm | Cut-out72mm |
| LBT2821 | Wattage10W | CCT3000K, 4000K, 5000K | IPIP20 | DimensionsØ80x70mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø80x70mm · Ø85x92mm · Ø85XH60mm · Ø94XH64mm +4 more |
|---|---|
| Cut-out | Ø72mm · Ø75mm · Ø70mm · Ø80mm +4 more |
| Power | 12W · 20W · 10W · 30W +1 more |
| Lumen output | Not published — technical review required |
| Efficacy | 80-85lm/W · 85-100lm/W |
| Optics / beam angle | 15° · 24° · 38° · 36° +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 90 · >90 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP44 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 28VDC |
| Light source | Not published — technical review required |
| Material | Aluminium · Die Casting Aluminium · Aluminium+Pc |
| Finish | white · Black · White+Mirror White · White+Mirror Black +3 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years |
| Lead time | Not published — technical review required |
12 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
11 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2821. This family has 11 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2821
Ø80x70mm
Cut-Out
Ø72mm
Specifications
At a Glance
10–30W
Power Range
5 options
Beam: 15°, 24°, 36°, 38°, 60°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 90
Colour Rendering
IP20 / IP44
Protection Rating
5 finishes
Body Finish Options
8 sizes
83xH73.5mm, Ø105XH83mm, Ø130x120mm, Ø140XH74mm, Ø80x70mm, Ø85XH60mm, Ø85x92mm, Ø94XH64mm
8 cut-outs
72mm, Ø117mm, Ø120mm, Ø70mm, Ø72mm, Ø75mm, Ø80mm, Ø92mm
Configure your product
LB2821
Order code
Listed configurationLB2821.W.930.WWH.24.DR
8 listed configurations · availability requires confirmation
