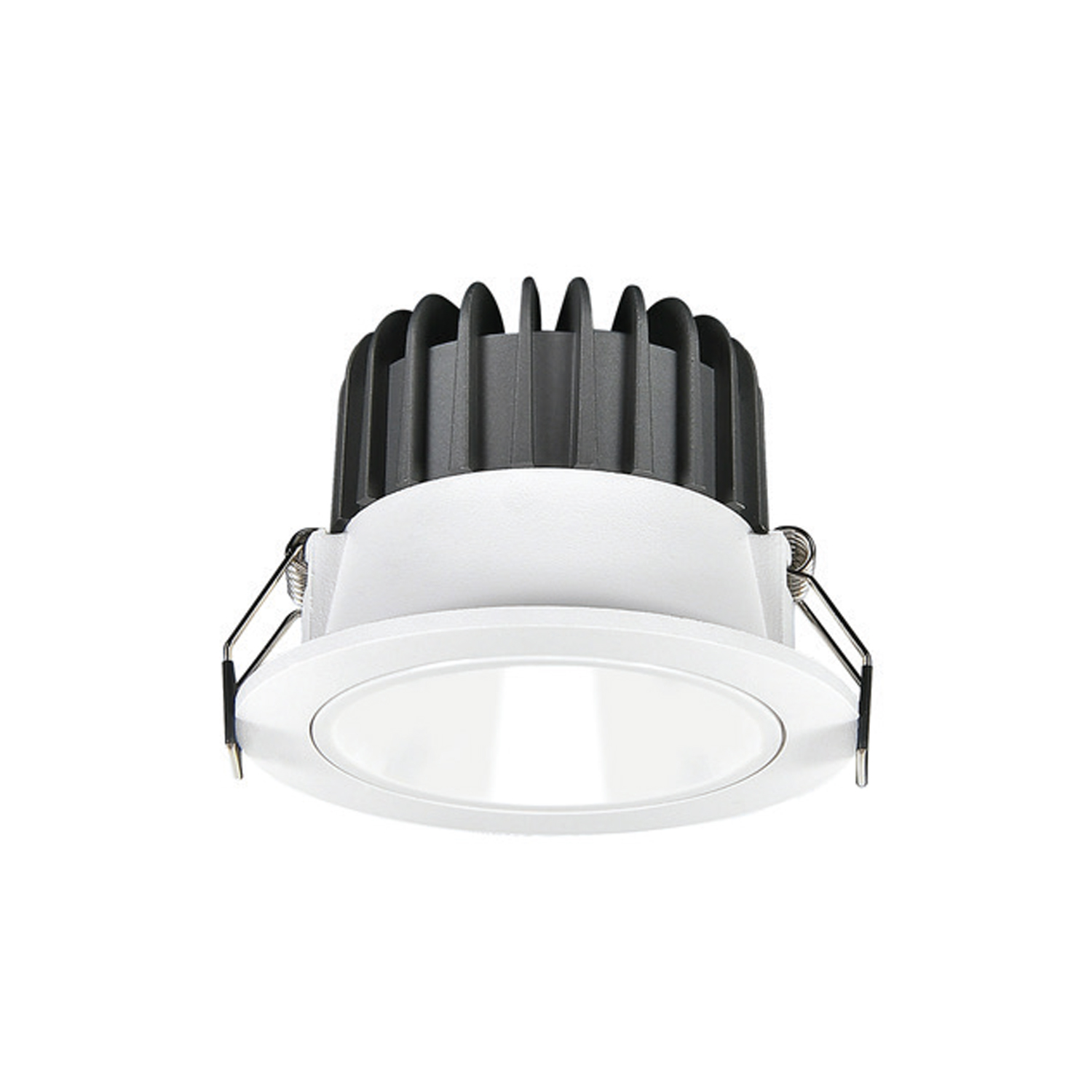

LB2917 Spot Light
BASE: LB2917HERMES lighting solution with professional specifications
Specifications at a Glance
10W
Power
3000K4000K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
24° / 36°
Beam Angle
220-240VAC, 50/60HZ
Input
Ø80mm
Cutout Size
Ø94XH64mm
Body Dimensions
White+Mirror BlackWhite+Mirror White
Available Finishes
ceiling-recessed, track-mounted
Mounting Type
Original Bridgelux COB
LED Chip
Die Casting Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
3 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB2917.N.940.WWH+MWH.36.DR
CCT:
4000K
Power:10W
Beam:
36°
Finish:
CRI >90IP20White+Mirror White
LB2917.W.930.WWH+MWH.24.DR
CCT:
3000K
Power:10W
Beam:
24°
Finish:
CRI >90IP20White+Mirror White
LB2917.W.930.WWH+MBK.24.DR
CCT:
3000K
Power:10W
Beam:
24°
Finish:
CRI >90IP20White+Mirror Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
Product Information
- Category:
- SPOT LIGHT
- Series:
- HERMES
- Family:
- HERMES
- Dimension:
- Ø94XH64mm
- Input Voltage:
- 220-240VAC, 50/60HZ
- Light Source:
- Original Bridgelux COB
- Material:
- Die Casting Aluminum
- Cut-Out:
- Ø80mm
Catalogue Specification
- Light Source:
- Original Bridgelux COB
- Power:
- 10W
- Colour Temperature:
- 3000K
- CRI:
- >90
- Input Voltage:
- 220-240VAC, 50/60HZ
- Driver:
- Eaglerise non dimmable
- Beam Angle:
- 24°
- Material:
- Die Casting Aluminum
- Body Finish:
- White+Mirror White,White+Mirror Black
- IP Rating:
- IP20
- Warranty:
- Written eligibility and policy confirmation required
- Dimensions:
- Ø94XH64mm
- Cut-Out:
- Ø80mm
- Luminous Efficacy:
- 80-85LM/W
Applications
Hospitality
Jewellery Display
Residential
Restaurant Dining
Retail
