LUMIBRIGHT
HYTHE
LUMI INDOOR
ceiling-recessed
IP20

LB2956 Spot Light

BASE: LB2956

HYTHE lighting solution with professional specifications

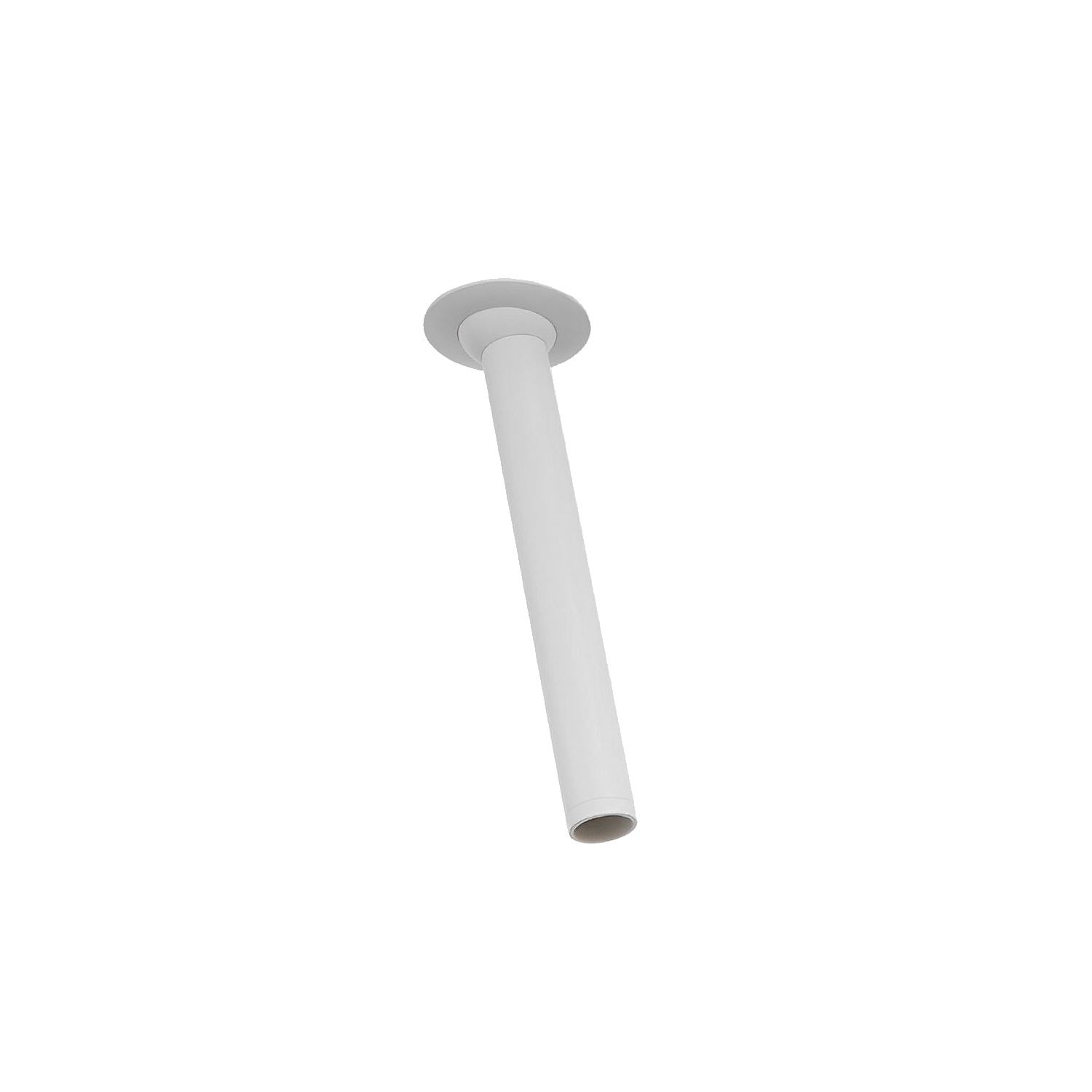

HYTHE LB2956 - SPOT LIGHT
Specifications at a Glance
9W
Power
80-85LM/W
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
UGR<19
UGR / Optics
220-240VAC(With Driver)
Input
Ø60mm
Cutout Size
Ø25xH200mm
Body Dimensions
BlackWhite
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB.
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

8 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

LB2956.C.960.WBK.24.DR
CCT:
6000K
Power:9W
Lumen:80-85LM/W
Beam:
24°
Finish:
Black
CRI >90IP20
LB2956.C.960.WWH.24.DR
CCT:
6000K
Power:9W
Lumen:80-85LM/W
Beam:
24°
Finish:
White
CRI >90IP20
LB2956.N.940.WBK.24.DR
CCT:
4000K
Power:9W
Lumen:80-85LM/W
Beam:
24°
Finish:
Black
CRI >90IP20
LB2956.N.940.WWH.24.DR
CCT:
4000K
Power:9W
Lumen:80-85LM/W
Beam:
24°
Finish:
White
CRI >90IP20
LB2956.W.927.WBK.24.DR
CCT:
2700K
Power:9W
Lumen:80-85LM/W
Beam:
24°
Finish:
Black
CRI >90IP20
LB2956.W.927.WWH.24.DR
CCT:
2700K
Power:9W
Lumen:80-85LM/W
Beam:
24°
Finish:
White
CRI >90IP20

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
SPOT LIGHT
Series:
HYTHE
Family:
HYTHE
Dimension:
Ø25xH200mm
Input Voltage:
220-240VAC(With Driver)
Light Source:
Bridgelux COB.
Material:
Aluminum
Life Time:
50,000Hrs
Cut-Out:
Ø60mm

Catalogue Specification

Light Source:
Bridgelux COB.
Power:
9W
Input Voltage:
220-240VAC(With Driver)
Driver:
Eaglerise
CRI:
>90
Colour Temperature:
2700K/3000K/4000K/6000K
Beam Angle:
24°
IP Rating:
IP20
Power Factor:
PF>0.5
Dimensions:
Ø25xH200mm
Cut-Out:
Ø60mm
Material:
Aluminum
Body Finish:
White,Black
LED Life Time:
50,000Hrs
Warranty:
Written eligibility and policy confirmation required
Luminous Efficacy:
80-85lm/W

Applications

Jewellery Display
Retail
