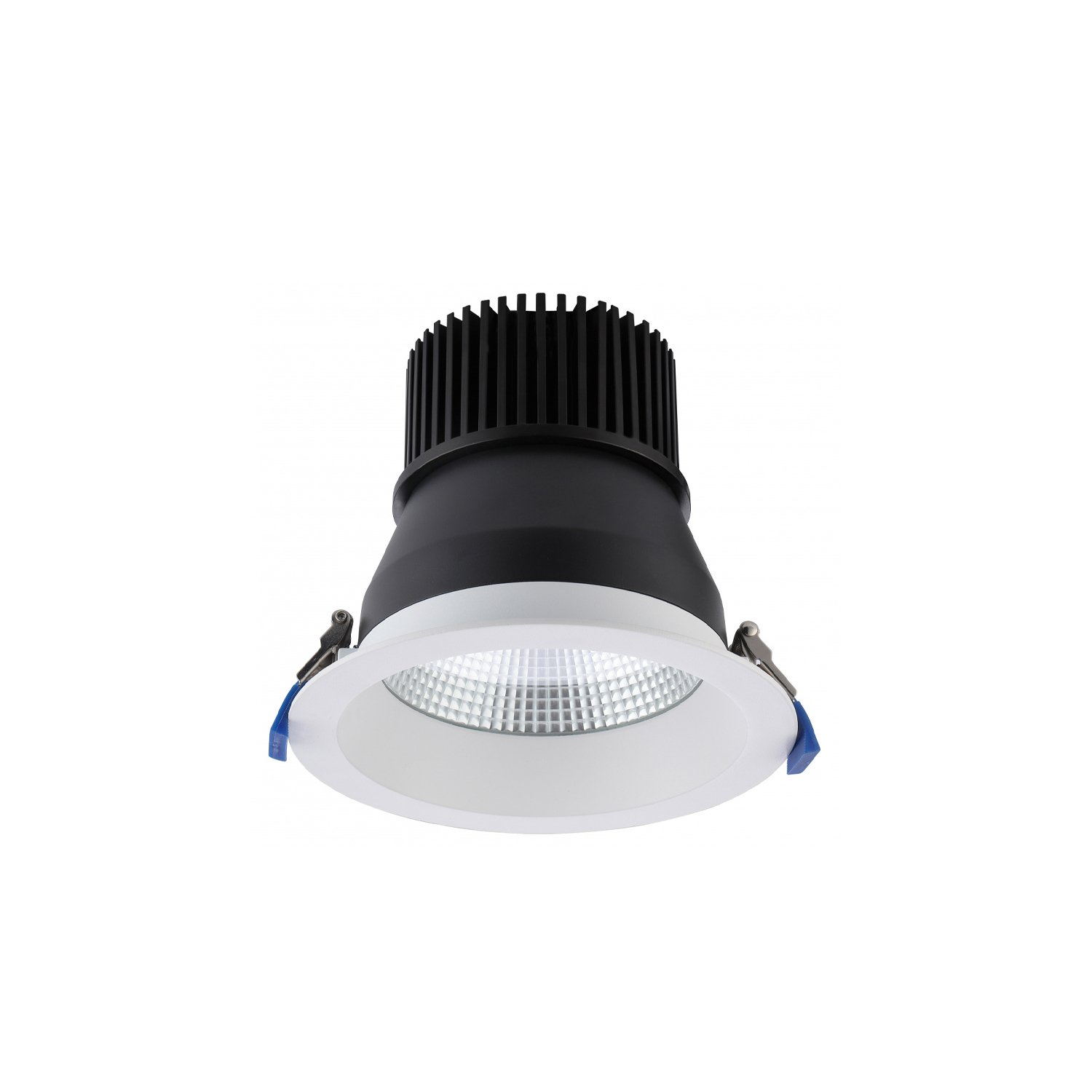

LB3277 Down Light
BASE: LB3277LUMIBRIGHT JEWEL SERIES 55W Ø185x160MM 90RA 4000K WHITE WITH SAND FINISH 45° IP20 DOWN LIGHT
Specifications at a Glance
55W
Power
5200lm
Lumen Output
IP20
Protection Rating
45°
Beam Angle
1300mA
Input
Ø160mm
Cutout Size
Ø185x160mm
Body Dimensions
White With Sand
Available Finishes
ceiling-recessed
Mounting Type
BRIDGELUX COB
LED Chip
50,000Hrs
LED Life Time
Die-Cast Aluminum
Material
indoor
Usage
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB3277.N.940.PAW.45
Power:55W
Lumen:5200lm
Beam:
45°
Finish:
IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- DOWN LIGHT
- Family:
- JEWEL
- Dimension:
- Ø185x160mm
- Input Voltage:
- 1300mA
- Light Source:
- BRIDGELUX COB
- Material:
- Die-Cast Aluminum
- Life Time:
- 50,000Hrs
- Usage:
- indoor
- Cut-Out:
- Ø160mm
Applications
Healthcare
Jewellery Display
Configure your product
LB3277
Order code
Listed configurationLB3277.N.940.PAW.45
1 listed configurations · availability requires confirmation
