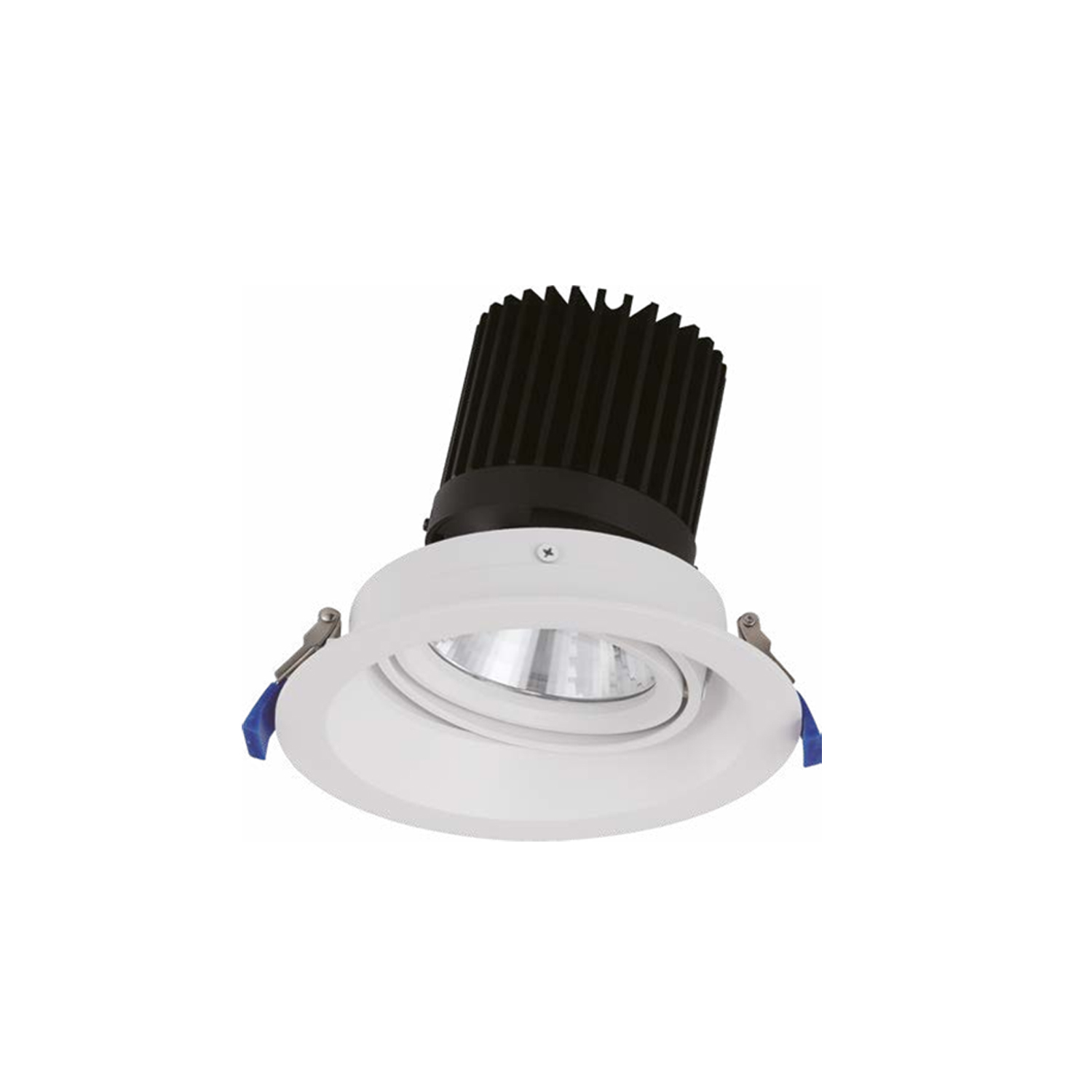

LB3287 Down Light
BASE: LB3287LUMIBRIGHT JEWEL 42W/50W Ø185x158MM 80RA 5000K BLACK FINISH 15° IP20 DOWN LIGHT
Specifications at a Glance
42W/50W
Power
3780lm/4500lm
Lumen Output
IP20
Protection Rating
15° / 24° / 45° / 60°
Beam Angle
1050mA/1200mA
Input
Ø145mm
Cutout Size
Ø185x158mm
Body Dimensions
BlackWhite
Available Finishes
ceiling-recessed
Mounting Type
LED
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
indoor
Usage
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
48 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB3287.C.850.WBK.15
Power:42W/50W
Lumen:3780lm/4500lm
Beam:
15°
Finish:
IP20Black
LB3287.C.850.WBK.24
Power:42W/50W
Lumen:3780lm/4500lm
Beam:
24°
Finish:
IP20Black
LB3287.C.850.WBK.45
Power:42W/50W
Lumen:3780lm/4500lm
Beam:
45°
Finish:
IP20Black
LB3287.C.850.WBK.60
Power:42W/50W
Lumen:3780lm/4500lm
Beam:
60°
Finish:
IP20Black
LB3287.C.850.WWH.15
Power:42W/50W
Lumen:3780lm/4500lm
Beam:
15°
Finish:
IP20White
LB3287.C.850.WWH.24
Power:42W/50W
Lumen:3780lm/4500lm
Beam:
24°
Finish:
IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- DOWN LIGHT
- Family:
- JEWEL
- Dimension:
- Ø185x158mm
- Input Voltage:
- 1050mA/1200mA
- Light Source:
- LED
- Material:
- Aluminum
- Life Time:
- 50,000Hrs
- Usage:
- indoor
- Cut-Out:
- Ø145mm
Applications
Education
Jewellery Display
Configure your product
LB3287
Order code
Listed configurationLB3287.C.850.WBK.15
48 listed configurations · availability requires confirmation
