Lumi Indoor
LA 70
Application inspiration · not a project reference
LA 70 is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Ceiling Light
LA 70
LA 70 is a ceiling light family within the LUMIBRIGHT Lumi Indoor collection. Explore 8 models, including L02008, L02009, L02010, with model-specific specifications and configuration choices. L02008 specifications include power: 6W; colour temperature: 3000K/4000K/5000K/5700K/6500K; IP rating: IP20; dimensions: Φ120*38mm. Compare the LA 70 range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L02008 | Wattage6W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | DimensionsΦ120*38mm | Cut-outNot published |

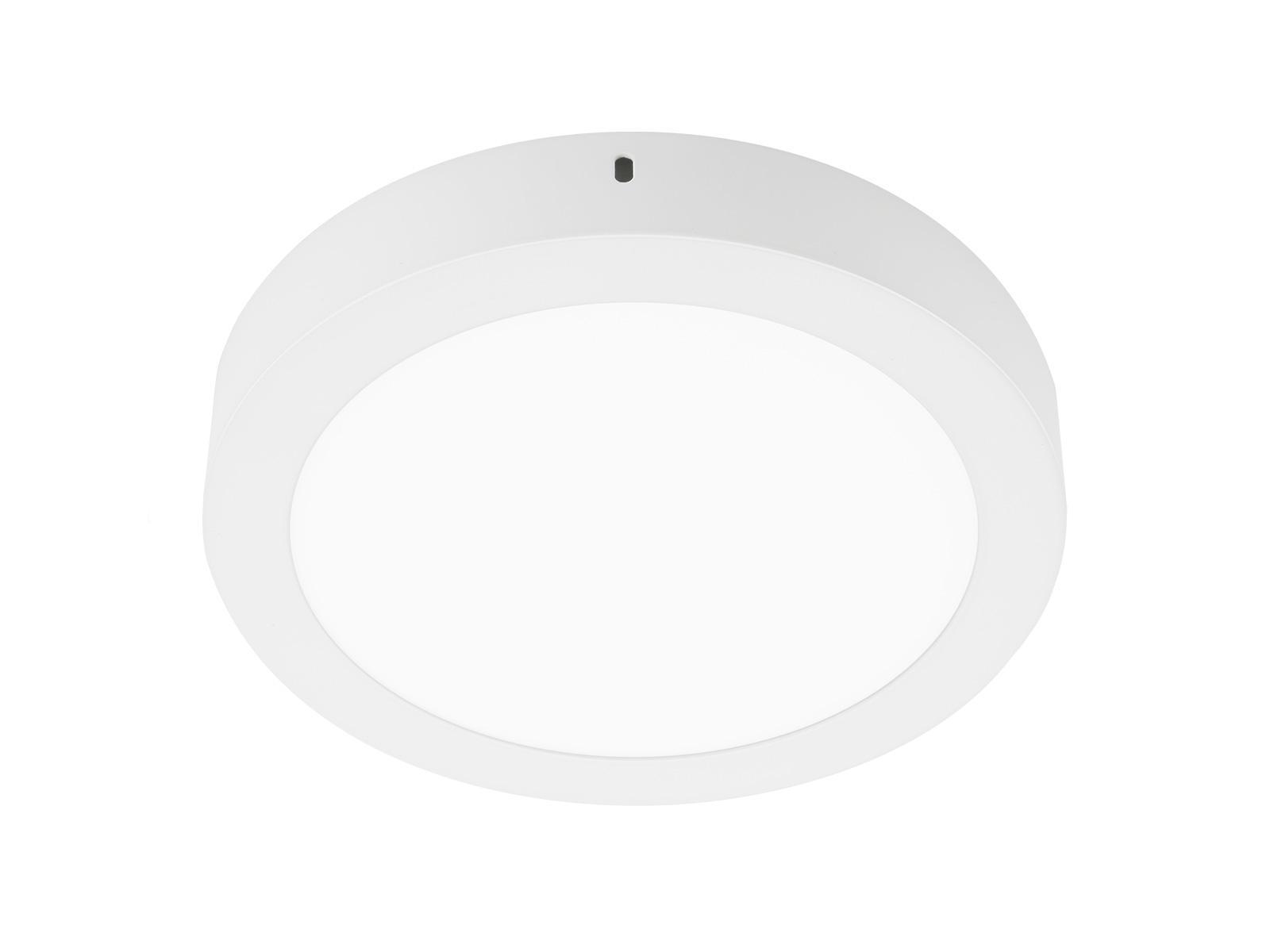

| L02009 | Wattage12W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | DimensionsΦ170*38mm | Cut-outNot published |
| L02010 | Wattage18W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | DimensionsΦ224*38mm | Cut-outNot published |
| L02011 | Wattage24W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | DimensionsΦ300*38mm | Cut-outNot published |

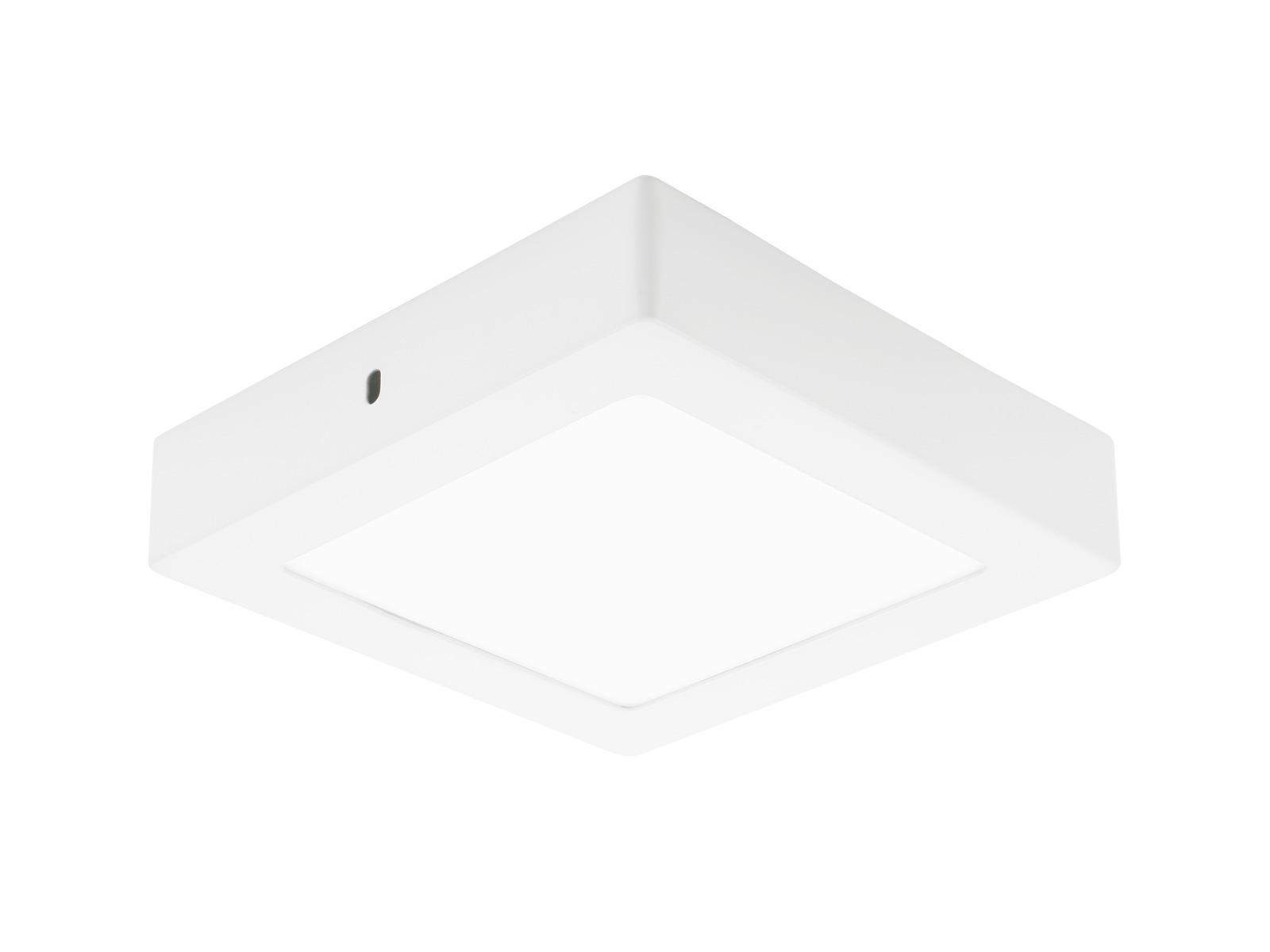

| L02012 | Wattage6W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | Dimensions120*120*38mm | Cut-outNot published |
| L02013 | Wattage12W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | Dimensions170*170*38mm | Cut-outNot published |
| L02014 | Wattage18W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | Dimensions224*224*38mm | Cut-outNot published |
| L02015 | Wattage24W | CCT3000K/4000K/5000K/5700K/6500K | IPIP20 | Dimensions298*298*38mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Φ120*38mm · Φ170*38mm · Φ224*38mm · Φ300*38mm +4 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 6W · 12W · 18W · 24W |
| Lumen output | 360-420LM · 810-950LM · 1280-1500LM · 1620-2000LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° |
| Colour temperature | 3000K · 4000K · 5000K · 5700K +2 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 200-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium DIE-CAST |
| Finish | White · Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
8 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L02008. This family has 8 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L02008
Φ120*38mm
Specifications
At a Glance
6–24W
Power Range
1 options
Beam: 120°
5 CCT
3000K, 4000K, 5000K, 5700K, 6500K
Switch(3000K-4000K-5700K)
Colour Options
CRI 80
Colour Rendering
IP20
Protection Rating
1 finishes
Body Finish Options
8 sizes
120*120*38mm, 170*170*38mm, 224*224*38mm, 298*298*38mm, Φ120*38mm, Φ170*38mm, Φ224*38mm, Φ300*38mm
Configure your product
L02008
Order code
Listed configurationL02008.8CCTS.01.120
11 listed configurations · availability requires confirmation
