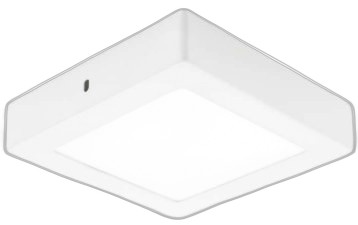

L02015 Ceiling Light
BASE: L02015LA 70 lighting solution with professional specifications
Specifications at a Glance
24W
Power
1620-2000LM
Lumen Output
3000K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
120°
Beam Angle
DIFFUSER
UGR / Optics
AC200-240V
Input
298*298*38mm
Body Dimensions
BlackWhite
Available Finishes
Non-DimmableDALITriac
Dimming Options
surface-mounted
Mounting Type
SMD 2835
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
11 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L02015.830.01.02.120
CCT:
3000K
Power:24W
Lumen:1620-2000LM
Beam:
120°
Finish:
CRI 80IP20White
L02015.865.03.120
CCT:
6500K
Power:24W
Lumen:1620-2000LM
Beam:
120°
Finish:
CRI 80IP20Black
L02015.865.01.120
CCT:
6500K
Power:24W
Lumen:1620-2000LM
Beam:
120°
Finish:
CRI 80IP20White
L02015.857.03.120
CCT:
5700K
Power:24W
Lumen:1620-2000LM
Beam:
120°
Finish:
CRI 80IP20Black
L02015.857.01.120
CCT:
5700K
Power:24W
Lumen:1620-2000LM
Beam:
120°
Finish:
CRI 80IP20White
L02015.850.03.120
CCT:
5000K
Power:24W
Lumen:1620-2000LM
Beam:
120°
Finish:
CRI 80IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING SURFACE LIGHT
- Series:
- LA 70
- Family:
- LA 70
- Dimension:
- 298*298*38mm
- Input Voltage:
- AC200-240V
- Light Source:
- SMD 2835
- Material:
- ALUMINUM DIE-CAST
Catalogue Specification
- Light Source:
- SMD 2835
- Power:
- 24W
- Input Voltage:
- AC200-240V
- Colour Temperature:
- 3000K/4000K/5000K/5700K/6500K
- Lumen Output:
- 1620-2000LM
- Beam Angle:
- 120°
- CRI:
- 80
- IP Rating:
- IP20
- Body Finish:
- WHITE/BLACK
- Dimensions:
- 298*298*38mm
- Optics:
- DIFFUSER
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
Applications
Jewellery Display
Office
