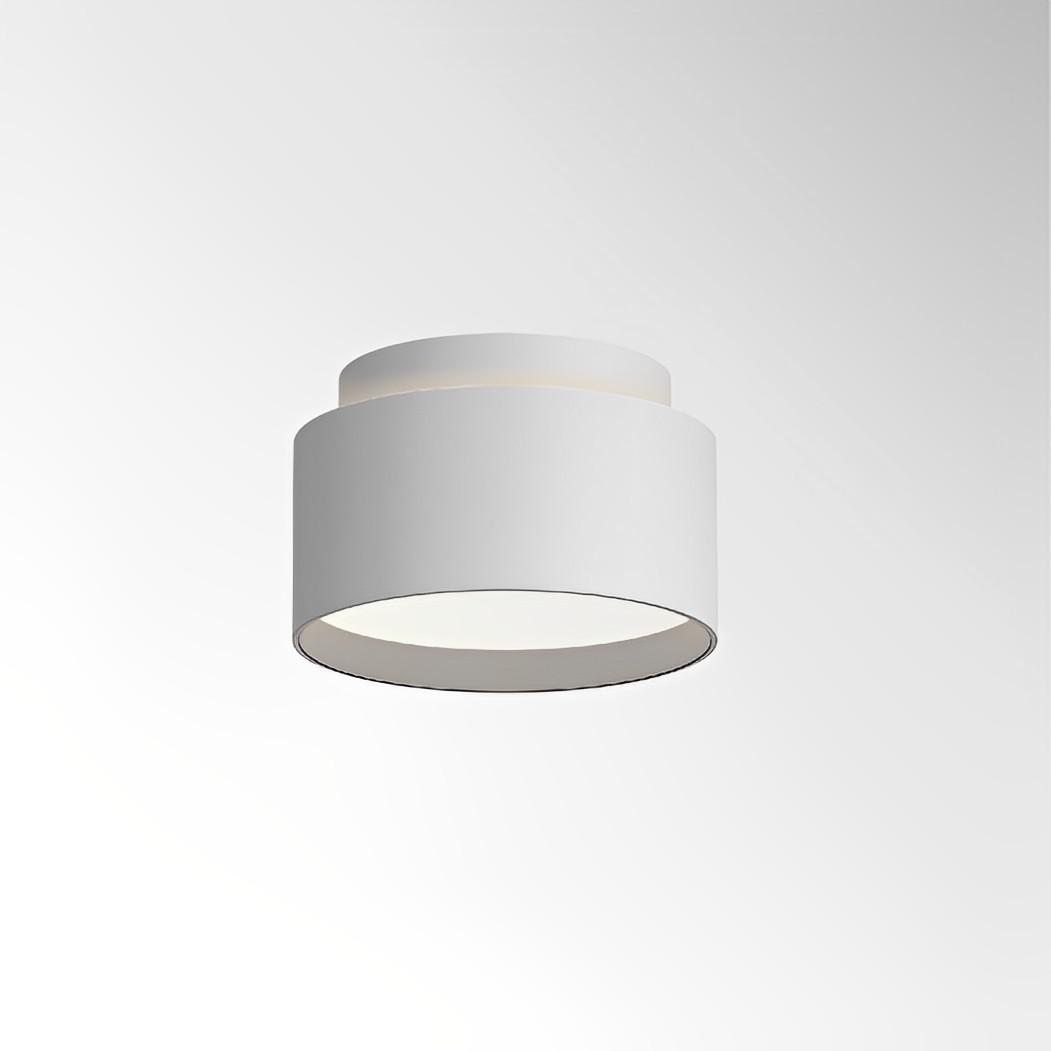

LBE3001 Down Light
BASE: LBE3001DOWN lighting solution with professional specifications
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
12 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Product Information
- Category:
- DOWN LIGHT
- Family:
- LOFT
- Dimension:
- Ø138x75mm
- Input Voltage:
- 220-240VAC
- Light Source:
- Epistar SMD LED
- Material:
- Die-casting aluminum
- Life Time:
- 50,000Hrs
- Cut-Out:
- Ø138mm
Catalogue Specification
- Light Source:
- Epistar SMD LED
- Power:
- UP 2W + Down 16W
- Input Voltage:
- 220-240VAC
- Lumen Output:
- 1500lm
- CRI:
- 80+
- Colour Temperature:
- 2700K/3000K/4000K/5000K
- Beam Angle:
- 100°
- IP Rating:
- IP20
- LED Life Time:
- 50,000Hrs
- Dimensions:
- Ø138x75mm
- Body Finish:
- White/Black/White+Black
- Material:
- Die-casting aluminum
- Warranty:
- Written eligibility and policy confirmation required
- Catalogue conformity claim (evidence not verified):
- CE/ROHS/F-Mark
Dimension Drawing

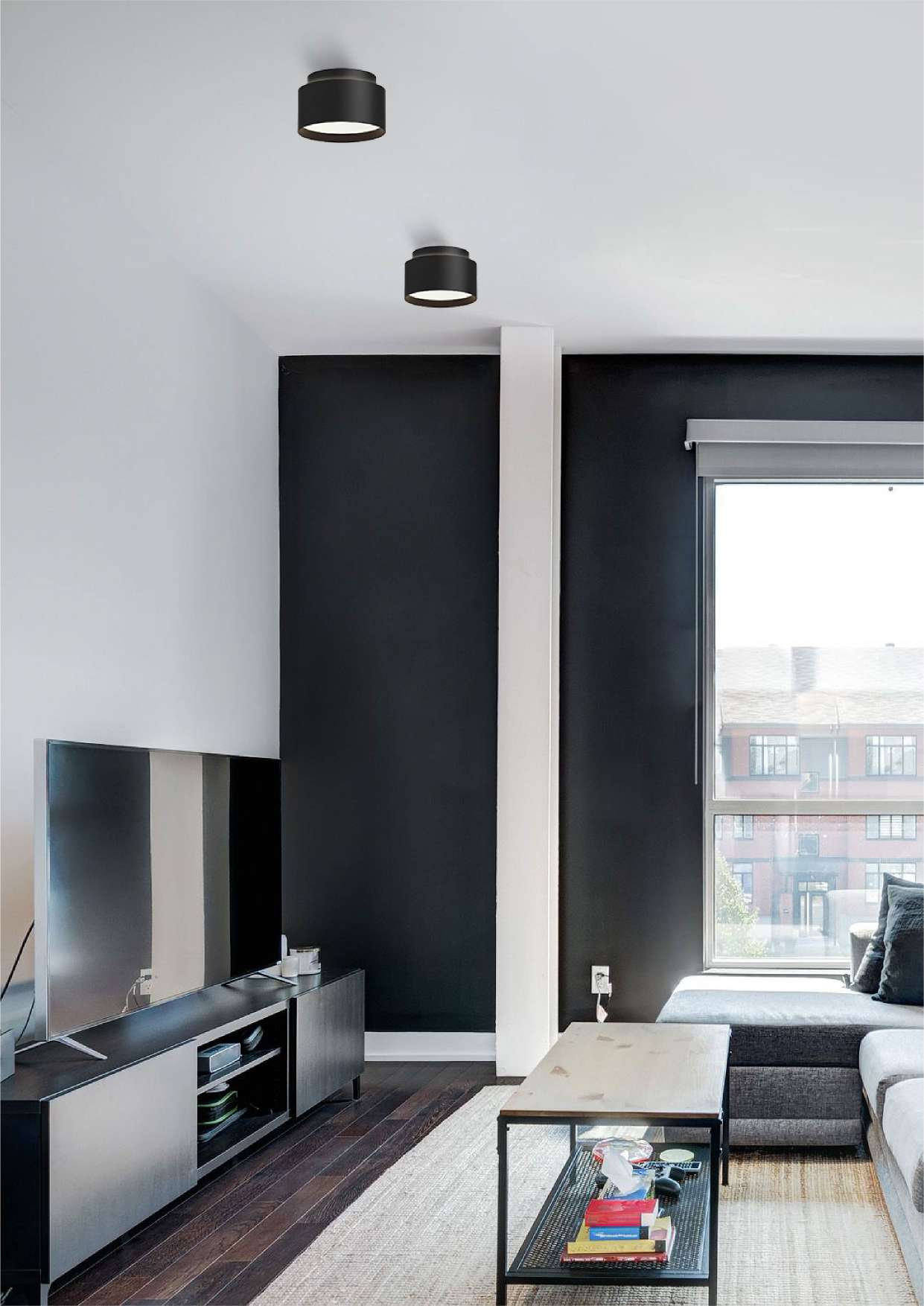

Applications
LBE3001: specifications and applications
LBE3001 is the DOWN LBE3001 - DOWN LIGHT lighting model in the lumi indoor catalogue, listed under DOWN LIGHT. This page keeps the specifications, configuration choices and project notes for LBE3001 together, so it can be compared with other LOFT models without substituting the dimensions or options of a neighbouring article.
The LBE3001 catalogue record lists power: UP 2W + Down 16W. Coordinate this load with the circuit schedule and the selected control gear.
The LBE3001 catalogue record lists body dimensions: Ø138x75mm. Check the housing against the architectural detail and the space reserved for installation.
The LBE3001 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.
The LBE3001 catalogue record lists colour rendering: 80+. Include this catalogue value in the material and display-lighting comparison for the project.
The LBE3001 catalogue record lists optical distribution: 100°. Compare the listed option with target distance, spacing and the surface being illuminated.
The LBE3001 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.
The LBE3001 catalogue record lists electrical requirement: 220-240VAC. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.
The LBE3001 catalogue record lists finish or material: White/Black/White+Black. Review the stated construction alongside adjoining architectural materials and sample approvals.
The LBE3001 catalogue record lists mounting: recessed. Check the fixing arrangement and access for installation before finalising the detail.
Compare LBE3001 with the lighting brief for the room, feature or circulation area being designed. Review the available model data alongside the architectural layout, viewing positions and intended control scenes. Keep the article reference visible in the schedule so the design team can coordinate the selected product with its mounting detail and any associated equipment. Project-specific suitability depends on that complete selection.
LBE3001 has 12 listed order-code configurations. Examples from this model are LBE3001.C.850.WBK.100, LBE3001.C.850.WWH.100, LBE3001.C.850.WWH+WBK.100. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.
For a LBE3001 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another LOFT article.
