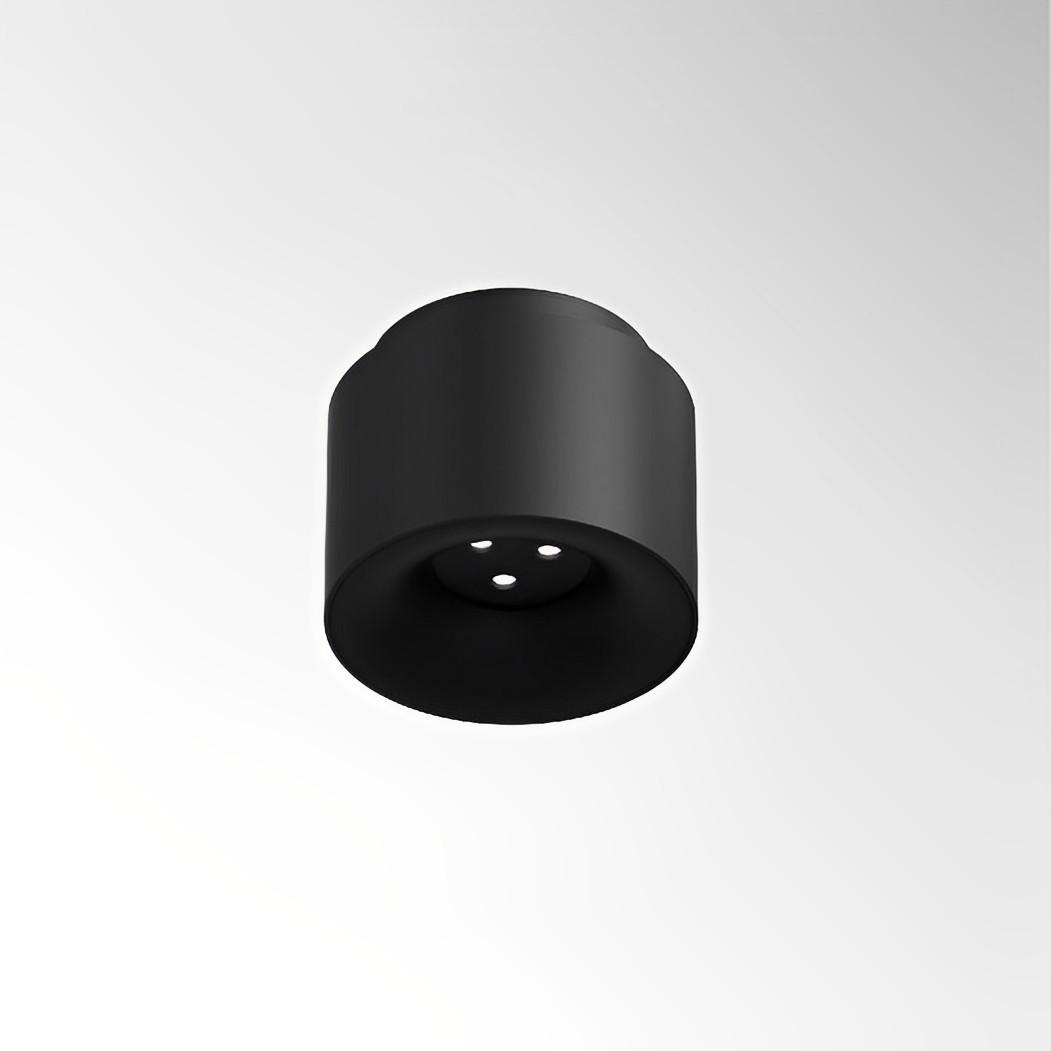

LBE3002 Down Light

LBE3002: specifications and applications

LBE3002 is the DOWN LBE3002 - DOWN LIGHT lighting model in the lumi indoor catalogue, listed under DOWN LIGHT. This page keeps the specifications, configuration choices and project notes for LBE3002 together, so it can be compared with other LOFT models without substituting the dimensions or options of a neighbouring article.

The LBE3002 catalogue record lists power: UP 3W + Down 7W. Coordinate this load with the circuit schedule and the selected control gear.

The LBE3002 catalogue record lists body dimensions: Ø113x90mm. Check the housing against the architectural detail and the space reserved for installation.

The LBE3002 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LBE3002 catalogue record lists colour rendering: 80+. Include this catalogue value in the material and display-lighting comparison for the project.

The LBE3002 catalogue record lists optical distribution: 30°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LBE3002 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LBE3002 catalogue record lists electrical requirement: 220-240VAC. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LBE3002 catalogue record lists finish or material: White/Black/White+Black. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LBE3002 catalogue record lists mounting: recessed. Check the fixing arrangement and access for installation before finalising the detail.

Compare LBE3002 with the lighting brief for the room, feature or circulation area being designed. Review the available model data alongside the architectural layout, viewing positions and intended control scenes. Keep the article reference visible in the schedule so the design team can coordinate the selected product with its mounting detail and any associated equipment. Project-specific suitability depends on that complete selection.

LBE3002 has 12 listed order-code configurations. Examples from this model are LBE3002.C.850.WBK.30, LBE3002.C.850.WWH.30, LBE3002.C.850.WWH+WBK.30. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LBE3002 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another LOFT article.

Main model page: LBE3002

Model specifications

Light SourceEpistar SMD LED
PowerUP 3W + Down 7W
Input Voltage220-240VAC
Lumen Output380lm
CRI80+
Colour Temperature2700K/3000K/4000K/5000K
Beam Angle30°
IP RatingIP20
LED Life Time50,000Hrs
DimensionsØ113x90mm
Body FinishWhite/Black/White+Black
MaterialDie-casting aluminum
WarrantyWritten eligibility and policy confirmation required
Catalogue conformity claim (evidence not verified)CE/ROHS/F-Mark

LBE3002 datasheet
