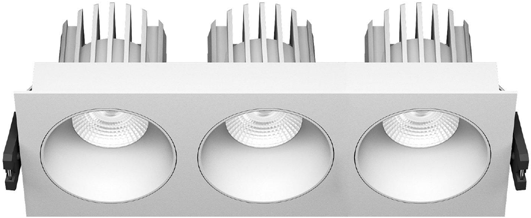

LBE2045 Spot Light

LBE2045: specifications and applications

LBE2045 is the LYRA LBE2045 - SPOT LIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LBE2045 together, so it can be compared with other LYRA models without substituting the dimensions or options of a neighbouring article.

The LBE2045 catalogue record lists power: 3x8W. Coordinate this load with the circuit schedule and the selected control gear.

The LBE2045 catalogue record lists body dimensions: 180x65x63mm. Check the housing against the architectural detail and the space reserved for installation.

The LBE2045 catalogue record lists cut-out: 173x57mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The LBE2045 catalogue record lists colour temperature: 4000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LBE2045 catalogue record lists colour rendering: 90. Include this catalogue value in the material and display-lighting comparison for the project.

The LBE2045 catalogue record lists optical distribution: 36°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LBE2045 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LBE2045 catalogue record lists electrical requirement: 200mA. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LBE2045 catalogue record lists finish or material: Sand White, Sand Black. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LBE2045 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

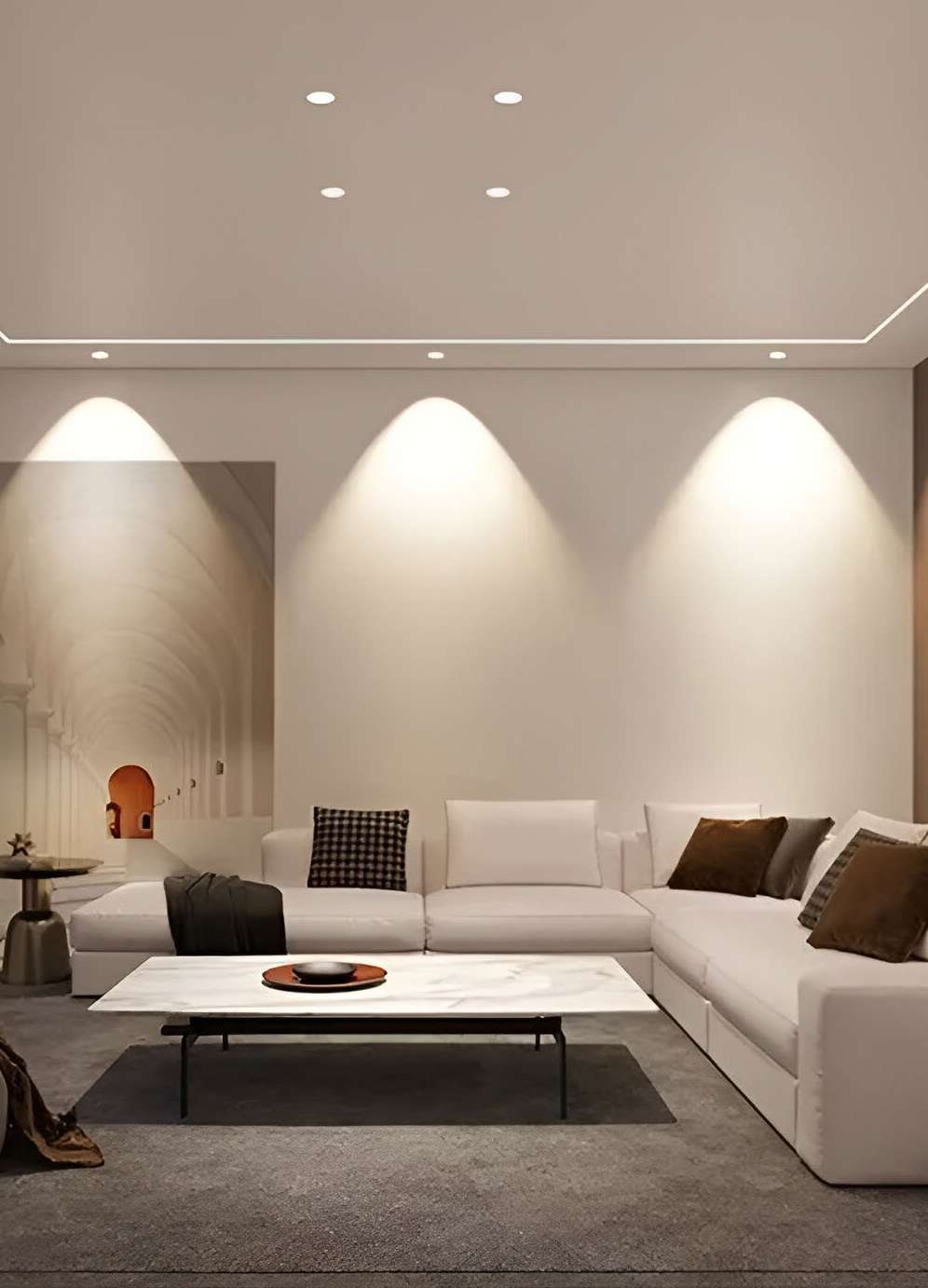

Accent lighting for retail, hospitality and residential interiors starts with the object or surface that needs emphasis. Compare the selected optic with the target size and mounting distance, and review colour appearance alongside surrounding finishes. A clear model and configuration reference helps the lighting schedule distinguish focused feature lighting from the general lighting elsewhere in the same space.

LBE2045 has 6 listed order-code configurations. Examples from this model are LBE2045.C.950.PAW.36, LBE2045.C.950.PAB.36, LBE2045.N.940.PAW.36. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LBE2045 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another LYRA article.

Main model page: LBE2045

Model specifications

Light SourceBridgelux-COB
Power3x8W
DriverDC 200mA 37Vx3 (without driver )
Beam Angle36°
Colour Temperature4000K
CRI90
MaterialAluminum
Body FinishSand White, Sand Black
IP RatingIP20
Cut-Out173x57mm
Dimensions180x65x63mm

LBE2045 datasheet
