Lumi Indoor
MELBY
Application inspiration · not a project reference
MELBY is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
MELBY
MELBY is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 3 models, including LB2482, LB3302, LB3303, with model-specific specifications and configuration choices. LB2482 specifications include colour temperature: 6000K; IP rating: IP20. Compare the MELBY range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB2482 | WattageNot published | CCT6000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LB3302 | Wattage35W | CCT3000K/3500K/4000K | IPIP20 | Dimensionsφ119*H123mm | Cut-out105mm |
| LB3303 | Wattage35W | CCT3000K/3500K/4000K | IPIP20 | Dimensionsφ119*H123mm | Cut-out105mm |
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (3)
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3302.
Size — model LB3302
φ119*H123mm
Cut-Out
105mm
Technical Data
Full Specification
| Dimensions | φ119*H123mm |
|---|---|
| Cut-out | 105mm |
| Power | 35W |
| Lumen output | 3200lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 40° · 60° |
| Colour temperature | 3000K · 3500K · 4000K · 5000K |
| CRI Ra | 90 · 80+/ 90+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
35W
Power
40°
Beam Angle
3 CCT
3000K, 3500K, 4000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
φ119*H123mm
Dimensions
105mm
Cut-Out
Configure your product

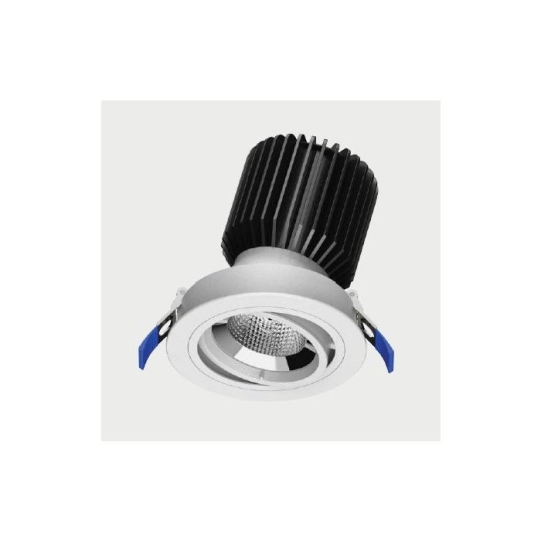

LB3302
Order code
Listed configurationLB3302.W.930.WWH.40.DR
1 listed configurations · availability requires confirmation
