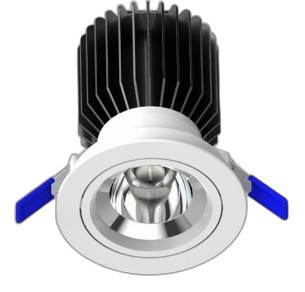

LB3303 Down Light

LB3303: specifications and applications

LB3303 is the MELBY LB3303 - DOWN LIGHT lighting model in the lumi indoor catalogue, listed under DOWN LIGHT. This page keeps the specifications, configuration choices and project notes for LB3303 together, so it can be compared with other MELBY models without substituting the dimensions or options of a neighbouring article.

The LB3303 catalogue record lists power: 35W. Coordinate this load with the circuit schedule and the selected control gear.

The LB3303 catalogue record lists body dimensions: φ119*H123mm. Check the housing against the architectural detail and the space reserved for installation.

The LB3303 catalogue record lists cut-out: 105mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The LB3303 catalogue record lists colour temperature: 3000K, 3500K, 4000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LB3303 catalogue record lists colour rendering: 80+/ 90+. Include this catalogue value in the material and display-lighting comparison for the project.

The LB3303 catalogue record lists optical distribution: 40°/60°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LB3303 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LB3303 catalogue record lists electrical requirement: 100-240VAC (ON/OFF). Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LB3303 catalogue record lists finish or material: Black / White. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LB3303 catalogue record lists mounting: ceiling-recessed. Check the fixing arrangement and access for installation before finalising the detail.

Compare LB3303 with the lighting brief for the room, feature or circulation area being designed. Review the available model data alongside the architectural layout, viewing positions and intended control scenes. Keep the article reference visible in the schedule so the design team can coordinate the selected product with its mounting detail and any associated equipment. Project-specific suitability depends on that complete selection.

The current record for LB3303 does not supply a complete list of order-code combinations. Use this base reference when requesting the model schedule, and confirm the exact finish, optical selection, electrical arrangement and included components before an order is specified. Missing options are not presented as available configurations.

For a LB3303 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another MELBY article.

Main model page: LB3303

Model specifications

Light SourceLuminus
Power35W
Input Voltage100-240VAC (ON/OFF)
Lumen Output3200lm
CRI80+/ 90+
Colour Temperature3000K/3500K/4000K
Beam Angle40°/60°
Tilt / Rotation90°/ 350°
IP RatingIP 20
LED Life Time50,000Hrs
Dimensionsφ119*H123mm
Cut-Out105mm
Body FinishBlack / White
MaterialAluminum
WarrantyWritten eligibility and policy confirmation required

LB3303 datasheet
