Lumi Indoor
METIS
Application inspiration · not a project reference
METIS is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
METIS
METIS is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 3 article codes under this family, including LBE2133, LBE2134, LBE3014. For LBE2133, published values include power: 7W; colour temperature: 2700K/3000K/4000K/5000K/6000K/6500K; IP rating: IP20; dimensions: φ85xH51.5MM. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the METIS articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE2133 | Wattage7W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensionsφ85xH51.5MM | Cut-out75MM |

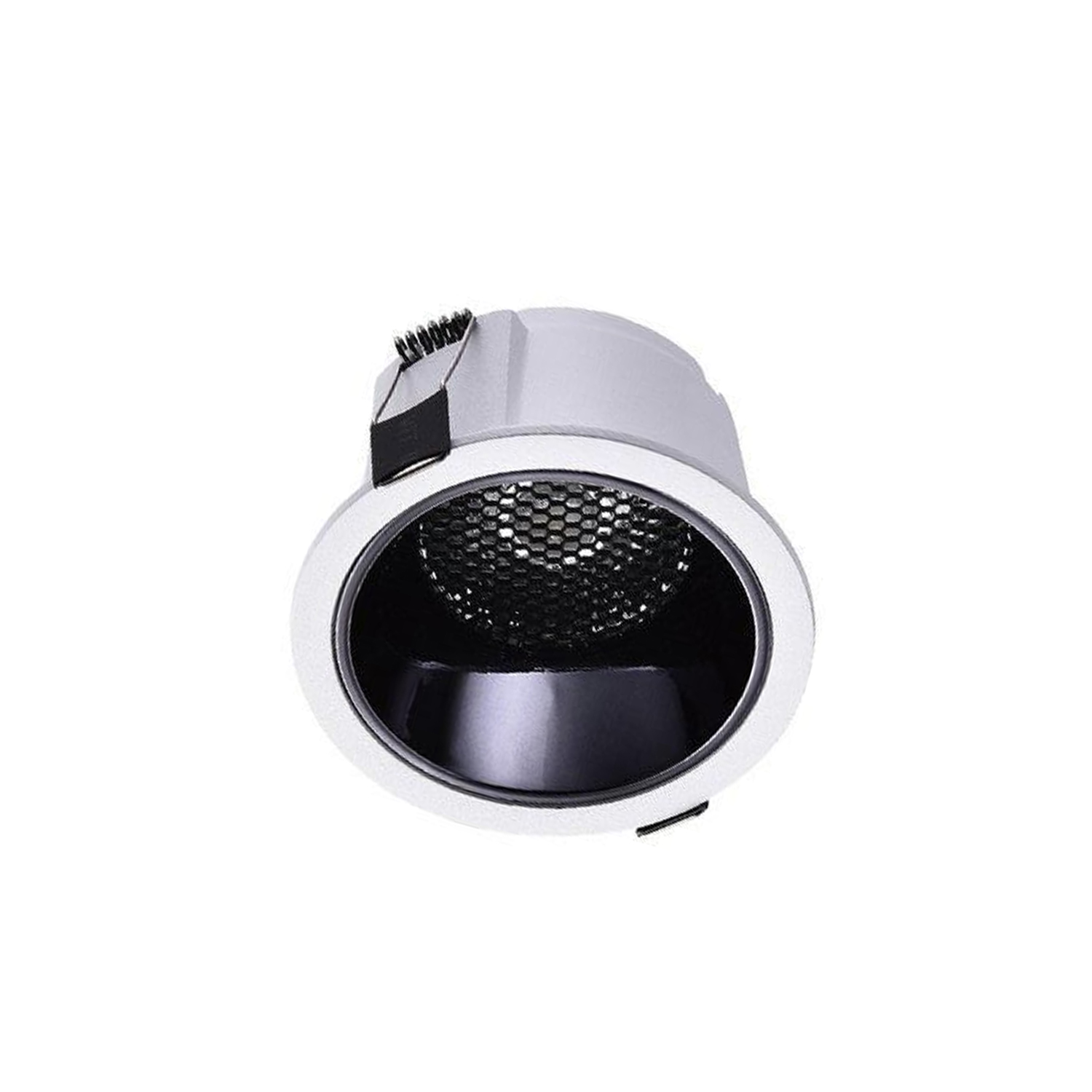

| LBE2134 | Wattage12W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensionsφ100xH58.8MM | Cut-out85MM |

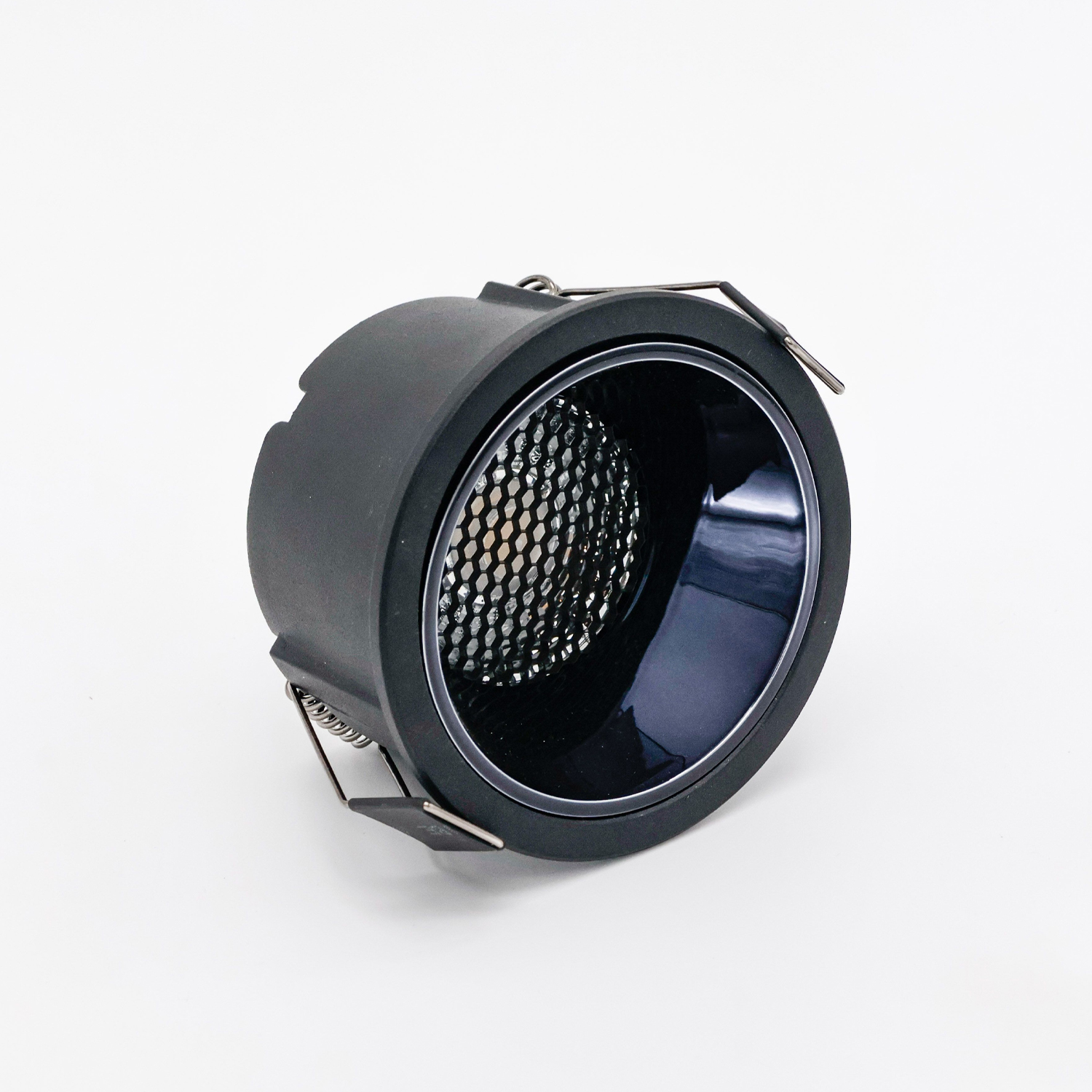

| LBE3014 | Wattage20W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensionsφ125xH67MM | Cut-out105MM |
Technical Data
Full Specification
| Dimensions | φ85xH51.5MM · φ100xH58.8MM · φ125xH67MM |
|---|---|
| Cut-out | 75MM · 85MM · 105MM |
| Power | 7W · 12W · 20W |
| Lumen output | 350lm · 900lm · 1400lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 30° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 80 · 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white-with-sand+mirror-black · White · black-with-sand+mirror-black · White With Sand+Mirror Black +1 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2133. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2133
φ85xH51.5MM
Cut-Out
75MM
Specifications
At a Glance
7–20W
Power Range
1 options
Beam: 30°
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI 80
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
3 sizes
φ100xH58.8MM, φ125xH67MM, φ85xH51.5MM
3 cut-outs
105MM, 75MM, 85MM
Configure your product
LBE2133
Order code
Listed configurationLBE2133.C.965.PAW+MBK.30.DR
24 listed configurations · availability requires confirmation
