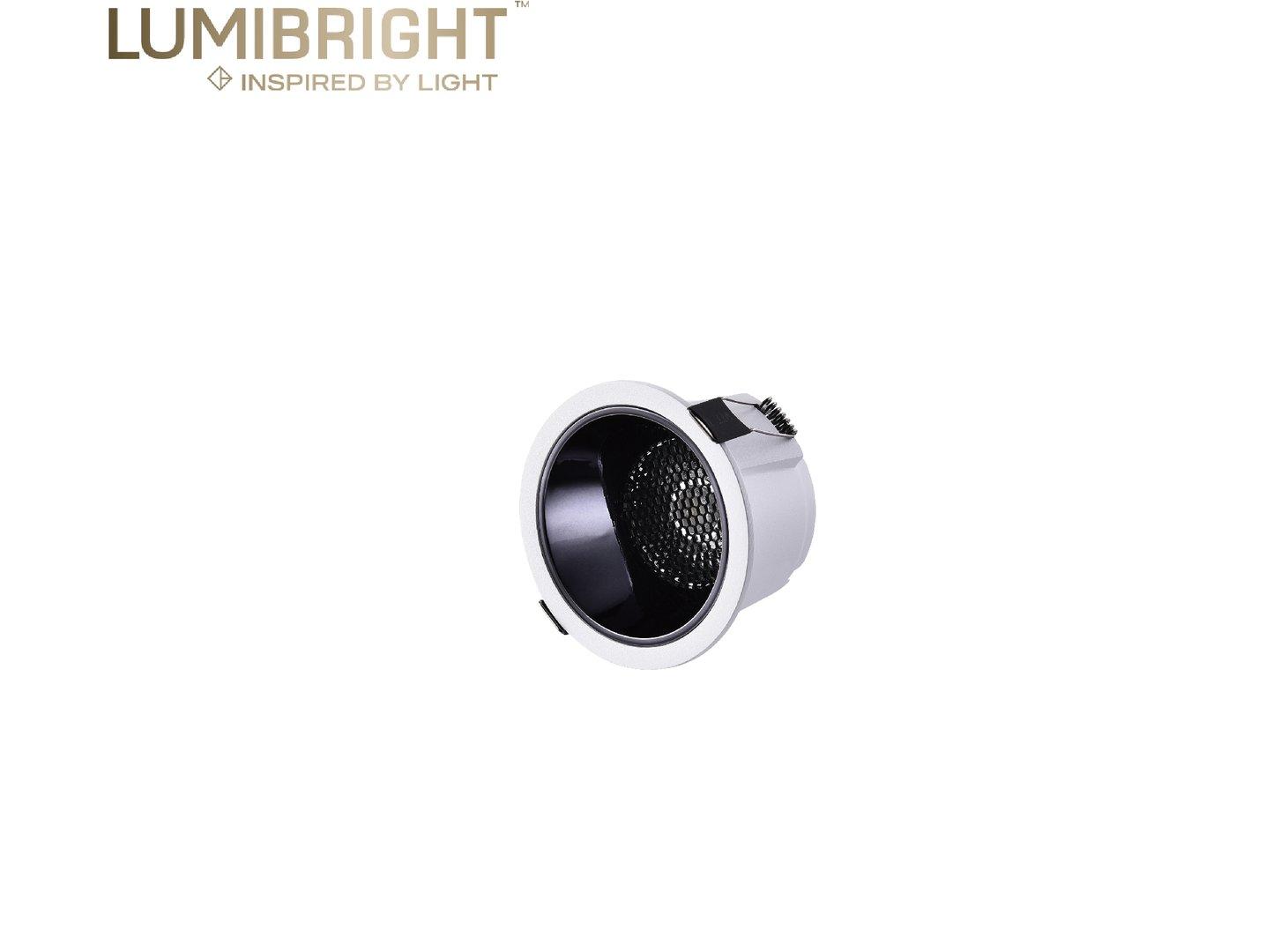

LBE3014 Spot Light
BASE: LBE3014METIS lighting solution with professional specifications
Specifications at a Glance
20W
Power
1400lm
Lumen Output
2700K3000K4000K5000K6000K6500K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
30°
Beam Angle
220-240VAC
Input
105MM
Cutout Size
φ125xH67MM
Body Dimensions
White
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
COB
LED Chip
50,000Hrs
LED Life Time
Aluminium
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
24 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE3014.N.940.PAW+MBK.30.DR
CCT:
4000K
Power:20W
Lumen:1400lm
Beam:
30°
Finish:
CRI 80IP20White
LBE3014.C.965.PAW+MBK.30.DR
CCT:
6500K
Power:20W
Lumen:1400lm
Beam:
30°
Finish:
CRI 80IP20White
LBE3014.C.965.PAB+MBK.30.DR
CCT:
6500K
Power:20W
Lumen:1400lm
Beam:
30°
Finish:
CRI 80IP20White
LBE3014.N.940.PAB+MBK.30.DR
CCT:
4000K
Power:20W
Lumen:1400lm
Beam:
30°
Finish:
CRI 80IP20White
LBE3014.W.930.PAW+MBK.30.DR
CCT:
3000K
Power:20W
Lumen:1400lm
Beam:
30°
Finish:
CRI 80IP20White
LBE3014.W.930.PAB+MBK.30.DR
CCT:
3000K
Power:20W
Lumen:1400lm
Beam:
30°
Finish:
CRI 80IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
Product Information
- Category:
- SPOT LIGHT
- Series:
- Metis
- Family:
- METIS
- Dimension:
- φ125xH67MM
- Input Voltage:
- 220-240VAC
- Light Source:
- COB
- Material:
- Aluminium
- Life Time:
- 50,000Hrs
- Cut-Out:
- 105MM
Catalogue Specification
- Light Source:
- COB
- Product Type:
- SPOTLIGHT
- Power:
- 20W
- Input Voltage:
- 220-240VAC
- Lumen Output:
- 1400lm
- Colour Temperature:
- 2700K/3000K/4000K/5000K/6000K/6500K
- CRI:
- 80
- IP Rating:
- IP20
- Beam Angle:
- 30°
- Material:
- Aluminium
- Body Finish:
- White with sand +mirror black,Black with sand +mirror black
- Dimensions:
- φ125xH67MM
- Cut-Out:
- 105MM
- LED Life Time:
- 50,000Hrs
- Warranty:
- Written eligibility and policy confirmation required
Applications
Jewellery Display
Retail
