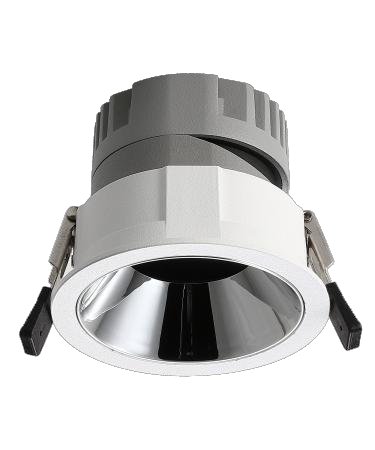

MISENO L01018 - CEILING RECESSED LIGHT

BASE: L01018

MISENO lighting solution with professional specifications

MISENO L01018 - CEILING RECESSED LIGHT
Specifications at a Glance
12W
Power
960-1150lm
Lumen Output
2700K3000K4000K6000K6500K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
10° / 15° / 24° / 36° / 50°
Beam Angle
REFLECTOR/LENS
UGR / Optics
AC220-240V
Input
Ø75mm
Cutout Size
D85*H75mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
recessed-downlight, surface-mounted
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty

CONFIGURE YOUR PRODUCT

Select your preferred specifications to generate the exact order code.

CRI 80
Generated Order Code
L01018.827.03

Total Available Configurations: 120

Your Configuration

Color Temperature
2700K
Beam Angle
10°
Body Finish
Black
Dimming
💡
On/Off
Cri
CRI 80
Need help configuring? Contact our sales team for assistance.

AVAILABLE CONFIGURATIONS

120 standard configurations ready for immediate order

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01018.930.01.02.24.DR
CCT:
3000K
Power:12W
Lumen:960-1150lm
Beam:
24°
Finish:
White
CRI 90IP20
L01018.927.03.15.15.DR
CCT:
2700K
Power:12W
Lumen:960-1150lm
Beam:
15°
CRI 90IP20
L01018.930.03.15.15.DR
CCT:
3000K
Power:12W
Lumen:960-1150lm
Beam:
15°
CRI 90IP20
L01018.927.03.15.24.DR
CCT:
2700K
Power:12W
Lumen:960-1150lm
Beam:
24°
CRI 90IP20
L01018.930.03.15.24.DR
CCT:
3000K
Power:12W
Lumen:960-1150lm
Beam:
24°
CRI 90IP20
L01018.927.03.15.36.DR
CCT:
2700K
Power:12W
Lumen:960-1150lm
Beam:
36°
CRI 90IP20

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
CEILING RECESSED LIGHT
Series:
MISENO
Family:
MISENO
Dimension:
D85*H75mm
Input Voltage:
AC220-240V
Light Source:
BRIDGELUX
Material:
ALUMINUM DIE-CAST
Cut-Out:
Ø75mm

Catalogue Specification

Light Source:
BRIDGELUX
Power:
12W
Input Voltage:
AC220-240V
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Lumen Output:
960-1150lm
Beam Angle:
10°/15°/24°/36°/50°
CRI:
90
IP Rating:
IP20
Body Finish:
GREY+WHITE/WHITE/BLACK
Dimensions:
D85*H75mm
Cut-Out:
Ø75mm
Optics:
REFLECTOR/LENS
Cover / Lens:
CLEAR GLASS/PC
Material:
ALUMINUM DIE-CAST
Reflector:
MATT WHITE/MATT BLACK/MATT SILVER/MATT GOLD/CHROME/DARK CHROME
