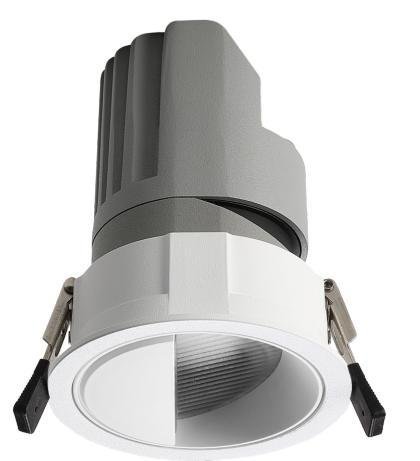

L01041 Ceiling Light
BASE: L01041MISENO lighting solution with professional specifications
Specifications at a Glance
18W
Power
828lm
Lumen Output
2700K3000K4000K6500K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP20
Protection Rating
10° / 15° / 24° / 36° / 50° / Wall Washer
Beam Angle
REFLECTOR/LENS
UGR / Optics
AC220-240V
Input
Ø75mm
Cutout Size
D85*H106mm
Body Dimensions
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
121 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01041.927.03.15.10.DR
CCT:
2700K
Power:18W
Lumen:828lm
Beam:
CRI 90IP2010°
L01041.927.03.15.15.DR
CCT:
2700K
Power:18W
Lumen:828lm
Beam:
CRI 90IP2015°
L01041.927.03.15.24.DR
CCT:
2700K
Power:18W
Lumen:828lm
Beam:
CRI 90IP2024°
L01041.927.03.15.36.DR
CCT:
2700K
Power:18W
Lumen:828lm
Beam:
CRI 90IP2036°
L01041.927.03.15.50.DR
CCT:
2700K
Power:18W
Lumen:828lm
Beam:
CRI 90IP2050°
L01041.930.03.15.10.DR
CCT:
3000K
Power:18W
Lumen:828lm
Beam:
CRI 90IP2010°
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- MISENO
- Family:
- MISENO
- Dimension:
- D85*H106mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø75mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 18W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 828lm
- Beam Angle:
- 10°/15°/24°/36°/50°
- CRI:
- 90
- IP Rating:
- IP20
- Body Finish:
- GREY+WHITE/WHITE/BLACK
- Dimensions:
- D85*H106mm
- Cut-Out:
- Ø75mm
- Optics:
- REFLECTOR/LENS
- Cover / Lens:
- CLEAR GLASS/PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- MATT WHITE/MATT BLACK/CHROME
Applications
Jewellery Display
Office
