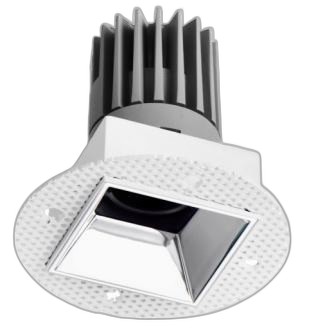

L01061 Ceiling Light
BASE: L01061MISENO lighting solution with professional specifications
Specifications at a Glance
35W
Power
2776-2996lm
Lumen Output
2700K3000K4000K6500K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP20
Protection Rating
15° / 24° / 36° / 60°
Beam Angle
REFLECTOR/LENS
UGR / Optics
AC220-240V
Input
125x125mm
Cutout Size
D175*H145mm
Body Dimensions
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
96 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01061.927.03.05.15.DR
CCT:
2700K
Power:35W
Lumen:2776-2996lm
Beam:
CRI 90IP2015°
L01061.927.03.05.24.DR
CCT:
2700K
Power:35W
Lumen:2776-2996lm
Beam:
CRI 90IP2024°
L01061.927.03.05.36.DR
CCT:
2700K
Power:35W
Lumen:2776-2996lm
Beam:
CRI 90IP2036°
L01061.927.03.05.60.DR
CCT:
2700K
Power:35W
Lumen:2776-2996lm
Beam:
CRI 90IP2060°
L01061.930.03.05.15.DR
CCT:
3000K
Power:35W
Lumen:2776-2996lm
Beam:
CRI 90IP2015°
L01061.930.03.05.24.DR
CCT:
3000K
Power:35W
Lumen:2776-2996lm
Beam:
CRI 90IP2024°
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- MISENO
- Family:
- MISENO
- Dimension:
- D175*H145mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- 125x125mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 35W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 2776-2996lm
- Beam Angle:
- 15°/24°/36°/60°
- CRI:
- 90
- IP Rating:
- IP20
- Body Finish:
- GREY+WHITE/WHITE/BLACK
- Dimensions:
- D175*H145mm
- Cut-Out:
- 125x125mm
- Optics:
- REFLECTOR/LENS
- Cover / Lens:
- CLEAR GLASS/PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- MATT WHITE
Applications
Jewellery Display
Office
Configure your product
L01061
Order code
Listed configurationL01061.927.03.05.15.DR
96 listed configurations · availability requires confirmation
