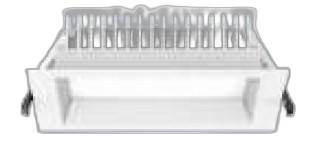

L01098 Ceiling Light
BASE: L01098NAPLES lighting solution with professional specifications
Specifications at a Glance
18W
Power
2195LM
Lumen Output
Switch
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP54
Protection Rating
90°
Beam Angle
DIFFUSER
UGR / Optics
220-240VAC
Input
170x170mm
Cutout Size
190x190x53
Body Dimensions
White
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
SMD
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01098.8CCTS.01.90.DR
CCT:
Switch
Power:18W
Lumen:2195LM
Beam:
90°
Finish:
CRI 80IP54White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- NAPLES
- Family:
- NAPLES
- Dimension:
- 190x190x53
- Input Voltage:
- 220-240VAC
- Light Source:
- SMD
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- 170x170mm
Catalogue Specification
- Light Source:
- SMD
- Power:
- 18W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 2195LM
- Beam Angle:
- 90°
- CRI:
- 80
- IP Rating:
- IP54
- Body Finish:
- WHITE
- Dimensions:
- 190x190x53
- Cut-Out:
- 170x170mm
- Optics:
- DIFFUSER
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
Applications
Jewellery Display
Office
Configure your product
L01098
Order code
Listed configurationL01098.8CCTS.01.90.DR
1 listed configurations · availability requires confirmation
