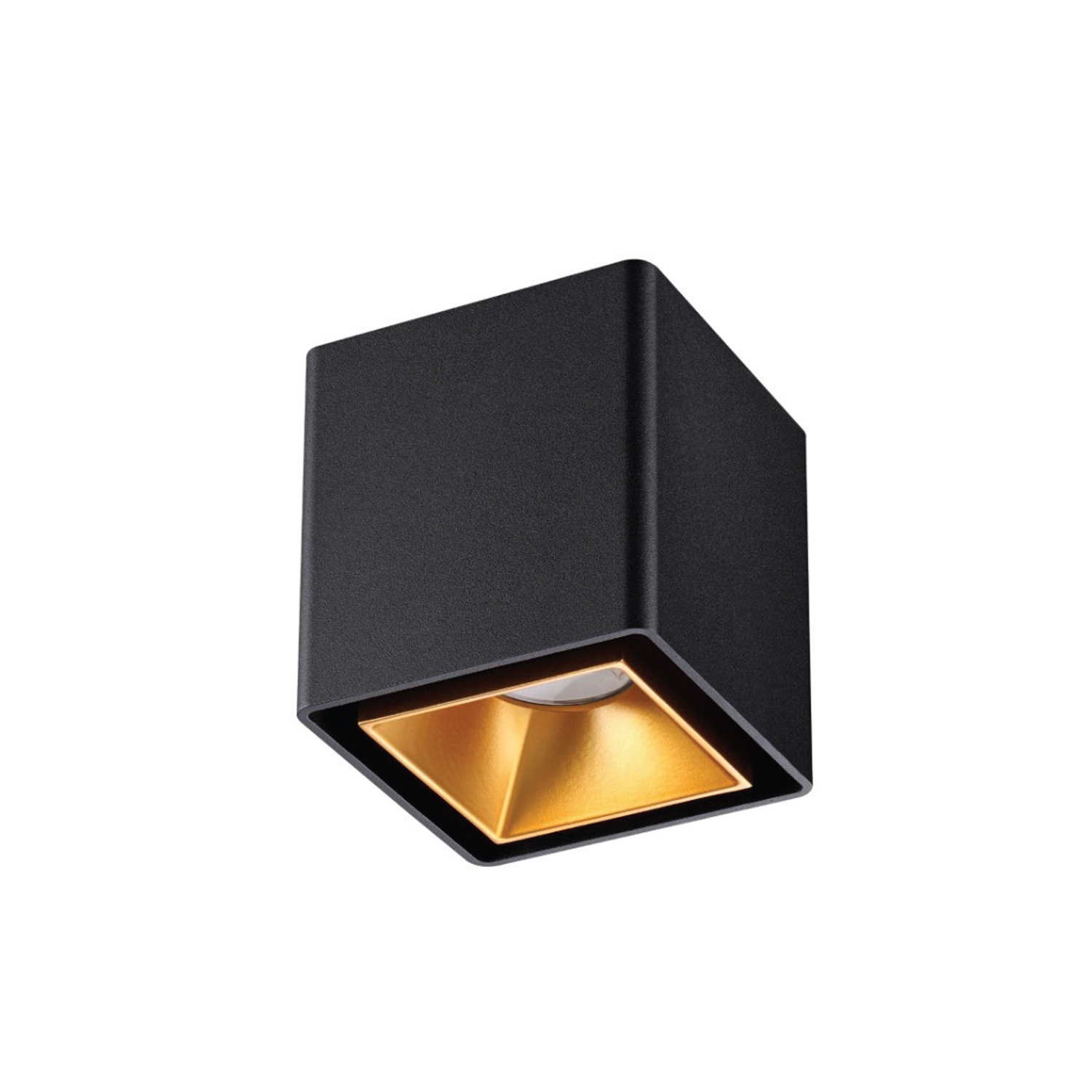

LB2831 Spot Light
BASE: LB2831NOVO S lighting solution with professional specifications
Specifications at a Glance
10W
Power
800lm
Lumen Output
3000K4000K
Available Colour Temperatures
CRI >80
Colour Rendering Index
IP44
Protection Rating
60°
Beam Angle
85-265VAC 50/60HZ
Input
94x94x100mm
Body Dimensions
Black With Sand+GoldenWhite With Sand+Golden
Available Finishes
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB
LED Chip
Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
3 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB2831.W.830.PAB+WGL.60
CCT:
3000K
Power:10W
Lumen:800lm
Beam:
60°
Finish:
CRI >80IP44Black With Sand+Golden
LB2831.W.830.PAW+WGL.60
CCT:
3000K
Power:10W
Lumen:800lm
Beam:
60°
Finish:
CRI >80IP44White With Sand+Golden
LB2831.N.840.PAB+WGL.60
CCT:
4000K
Power:10W
Lumen:800lm
Beam:
60°
Finish:
CRI >80IP44Black With Sand+Golden
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- NOVO S
- Family:
- NOVO S
- Dimension:
- 94x94x100mm
- Input Voltage:
- 85-265VAC 50/60HZ
- Light Source:
- Bridgelux COB
- Material:
- Aluminum
Catalogue Specification
- Light Source:
- Bridgelux COB
- Power:
- 10W
- Input Voltage:
- 85-265VAC 50/60HZ
- Lumen Output:
- 800lm
- CRI:
- >80
- Colour Temperature:
- 3000K/4000K/6000K
- Beam Angle:
- 36° / 60°
- Dimensions:
- 94x94x100mm
- Material:
- Aluminum
- Body Finish:
- White/black/white+Golden/black+golden
- IP Rating:
- IP44
- Warranty:
- Written eligibility and policy confirmation required
Applications
Hospitality
Jewellery Display
Residential
Retail
