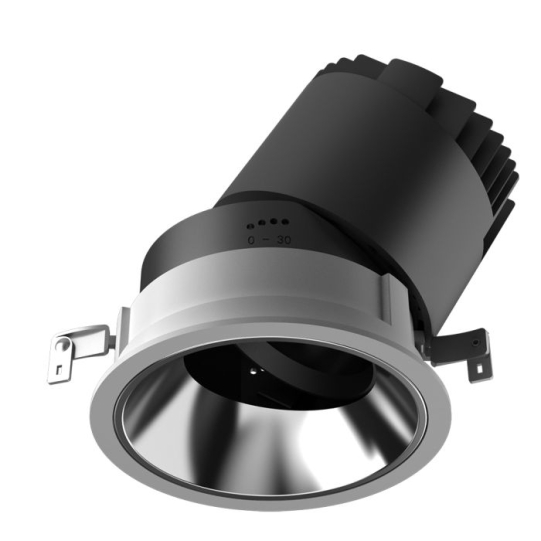

LB2842 Spot Light

LB2842: specifications and applications

LB2842 is the ORACLE LB2842 - SPOT LIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LB2842 together, so it can be compared with other ORACLE models without substituting the dimensions or options of a neighbouring article.

The LB2842 catalogue record lists power: 20W. Coordinate this load with the circuit schedule and the selected control gear.

The LB2842 catalogue record lists body dimensions: Ø110x110mm. Check the housing against the architectural detail and the space reserved for installation.

The LB2842 catalogue record lists cut-out: Ø95mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The LB2842 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LB2842 catalogue record lists colour rendering: >90. Include this catalogue value in the material and display-lighting comparison for the project.

The LB2842 catalogue record lists optical distribution: 15°,24°, 38°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LB2842 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LB2842 catalogue record lists electrical requirement: 220-240VAC. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LB2842 catalogue record lists finish or material: Matt Black Trim+Matt Black. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LB2842 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

Accent lighting for retail, hospitality and residential interiors starts with the object or surface that needs emphasis. Compare the selected optic with the target size and mounting distance, and review colour appearance alongside surrounding finishes. A clear model and configuration reference helps the lighting schedule distinguish focused feature lighting from the general lighting elsewhere in the same space.

LB2842 has 14 listed order-code configurations. Examples from this model are LB2842.W.927.WWH+CRM.38.DDR, LB2842.W.930.WWH+CRM.38.DDR, LB2842.C.950.PBK.38.DDR. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LB2842 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another ORACLE article.

Main model page: LB2842

Model specifications

Light SourceBridgeLux COB
Power20W
Colour Temperature2700K/3000K/4000K/5000K
CRI>90
Input Voltage220-240VAC
Operating Temperature-20~+40℃
Power Factor>0.9
DriverBoke DALI DRIVER
Beam Angle15°,24°, 38°
Materialaluminum
Body FinishMatt Black Trim+Matt Black
IP RatingIP20
DimensionsØ110x110mm
Cut-OutØ95mm
WarrantyWritten eligibility and policy confirmation required
Catalogue conformity claim (evidence not verified)CE,RoHS
Safety ClassClass II
Luminous Efficacy70-85lm/W

LB2842 datasheet
