ORACLE
LUMI INDOOR

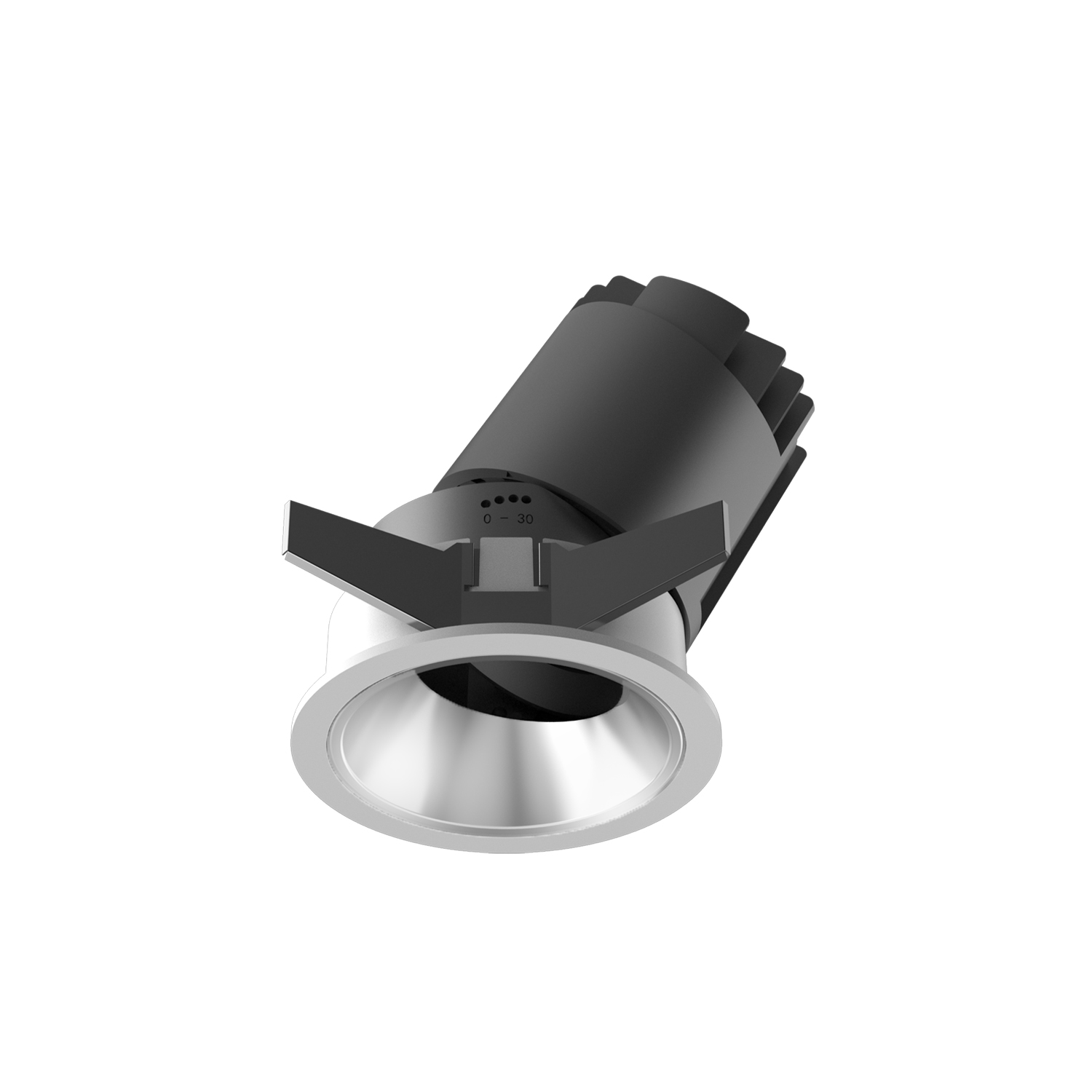

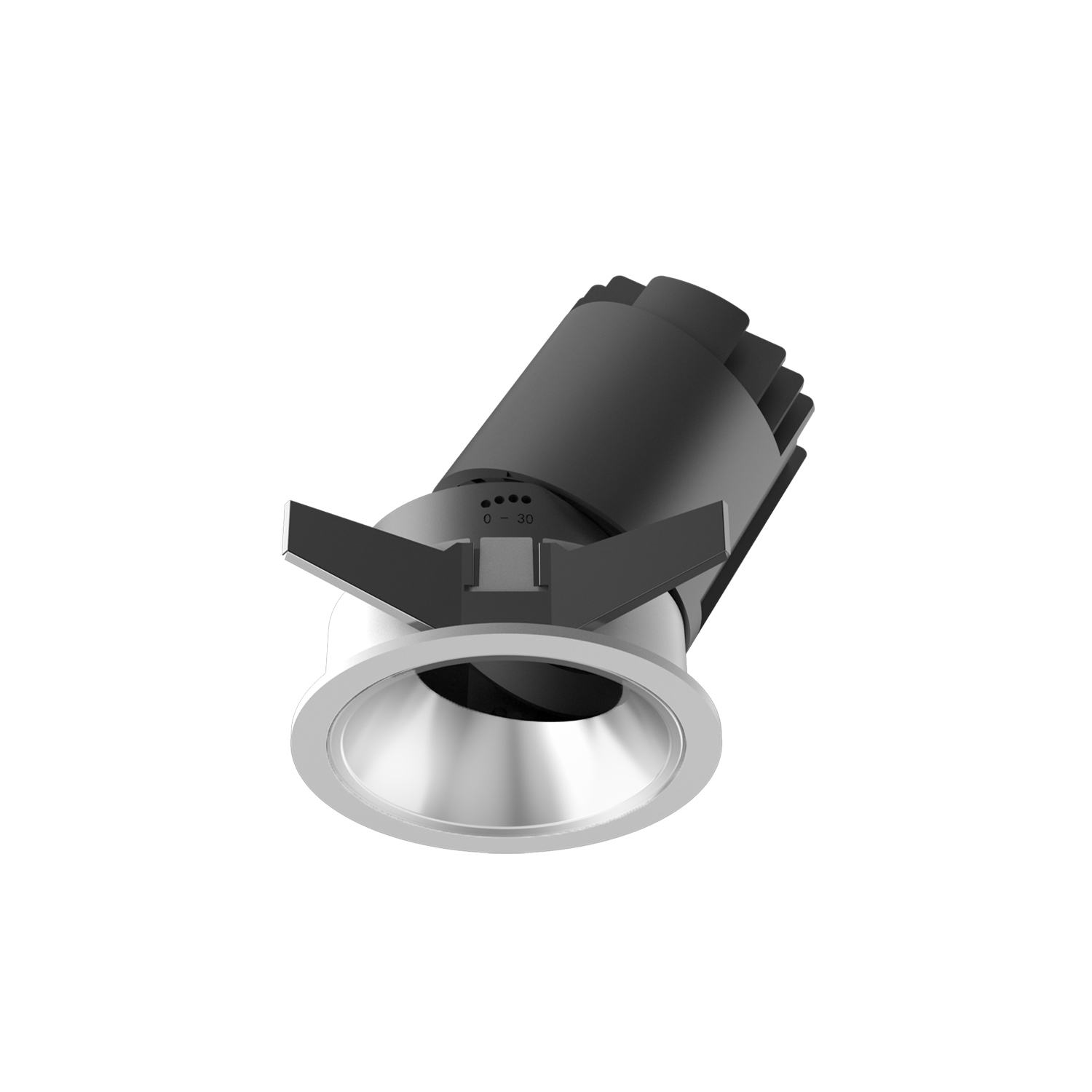

LUMIBRIGHT ORACLE LUMIINDOOR 7W SPOT LIGHT IP20
BASE: LB2857LUMIBRIGHT ORACLE LUMIINDOOR 7W SPOT LIGHT IP20
Specifications at a Glance
7W
Power
560lm
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
15°/24°/36°
Beam Angle
220-240VAC
Input
Ø75mm
Cutout Size
Ø86x94mm
Body Dimensions
BlackBlack+Matt BlackMatt BlackWHITEWhiteWhite With Sand+Mirror SilverWhite+ChromeWhite+Matt BlackWhite+Matt WhiteWhite+Mirror Silver
Available Finishes
DALINon-DimmableTriac
Dimming Options
CREE COB
LED Chip
50,000Hrs
LED Life Time
Die-cast aluminum
Material
5 years (Repair)
Warranty
INDOOR
Usage
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty
CONFIGURE YOUR PRODUCT
Select your preferred specifications to generate the exact order code.
CRI 80
15°/24°/36°
Generated Order Code
LB2857.827.03
Total Available Configurations: 0
Your Configuration
Color Temperature
2700K
Body Finish
Black
Cri
CRI 80
Dimming
⚡
DALIBeam Angle
152436°
Need help configuring? Contact our sales team for assistance.
No standard configurations available.
Please contact us for custom options.
Product Information
- Category:
- SPOT LIGHT
- Series:
- ORACLE
- Family:
- ORACLE
- Dimension:
- Ø86x94mm
- Input Voltage:
- 220-240VAC
- Light Source:
- CREE COB
- Material:
- Die-cast aluminum
- Life Time:
- 50,000Hrs
- Warranty:
- 5 years (Repair)
- Usage:
- INDOOR
- Cut-Out:
- Ø75mm
Catalogue Specification
- Light Source:
- CREE COB
- Power:
- 7W
- Input Voltage:
- 220-240VAC
- Driver:
- 180mA/30-42VDC
- Lumen Output:
- 560lm
- CRI:
- ≥80/≥90
- Colour Temperature:
- 2700K/3000K/4000K/5000K/6000K
- Beam Angle:
- 15°/24°/36°
- IP Rating:
- IP20
- Power Factor:
- >0.5
- LED Life Time:
- 50,000Hrs
- Dimensions:
- Ø86x94mm
- Cut-Out:
- Ø75mm
- Body Finish:
- White/Black
- Reflector:
- White/black/gold/chrome/silver/mirror black
- Material:
- Die-cast aluminum
- Warranty:
- 5 years
Applications
Hotel Hospitality
Jewellery Display
Residential
Retail
