Spot Light
ORVILLE
ORVILLE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 10 models, including LB2368, LB2813, LB2848, with model-specific specifications and configuration choices. LB2368 specifications include power: 3x2W; colour temperature: 6000K; IP rating: IP20; dimensions: 90x44x52mm. Compare the ORVILLE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB2368 | Wattage3x2W | CCT6000K | IPIP20 | Dimensions90x44x52mm | Cut-out83x36mm |

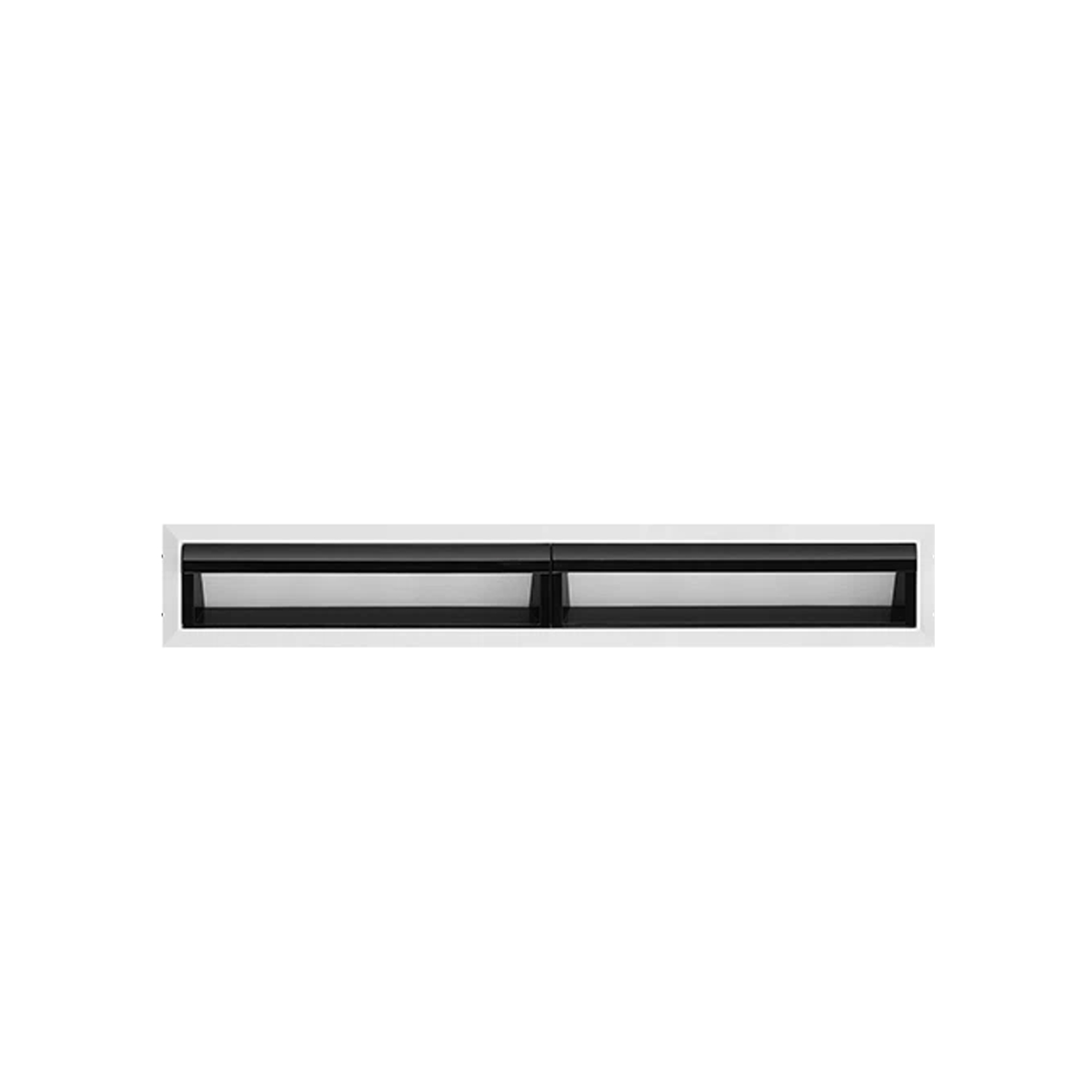

| LB2813 | Wattage20W | CCT3000 | IPIP20 | Dimensions280x45x49mm | Cut-out273x37mm |

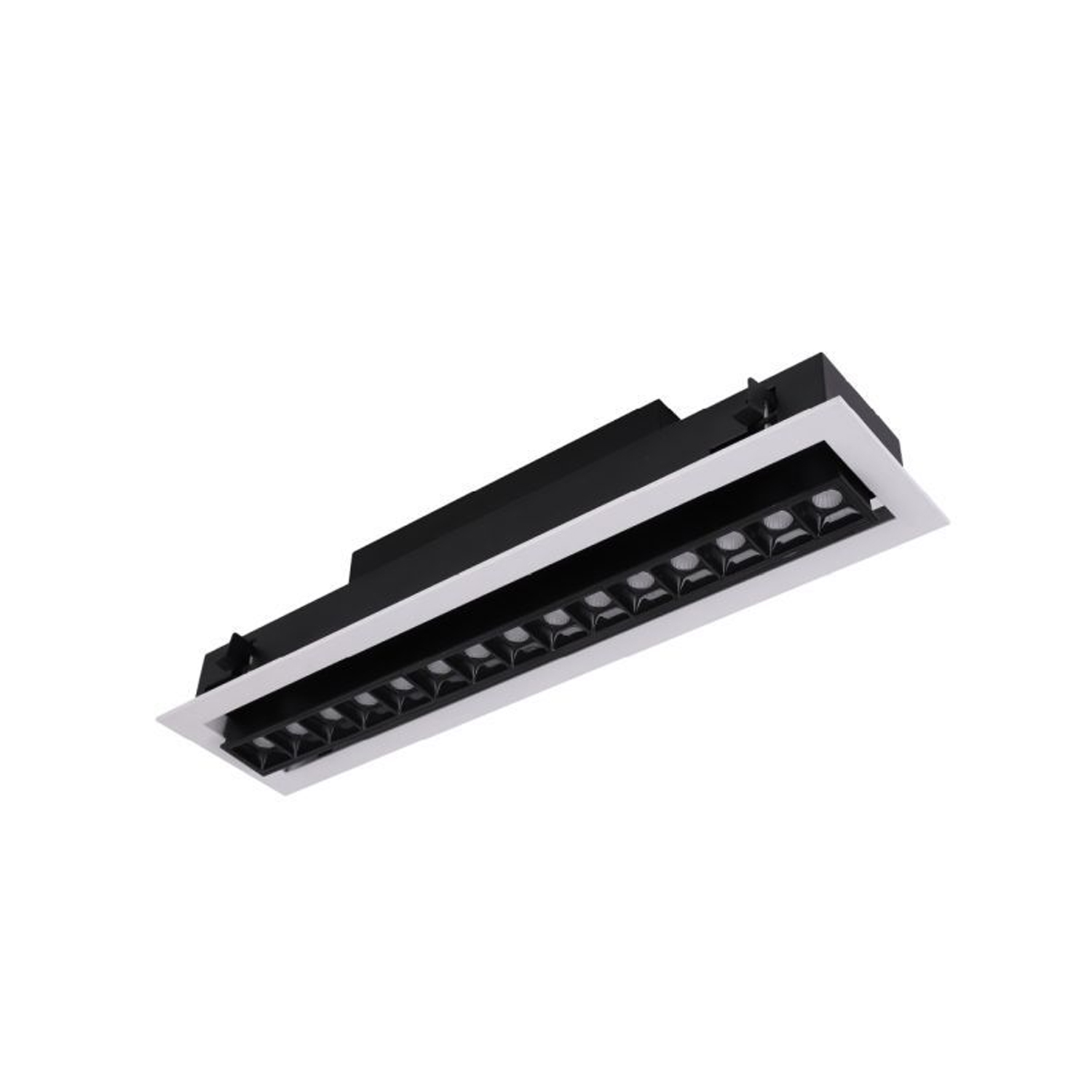

| LB2848 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions444x105x96mm | Cut-out425x90mm |

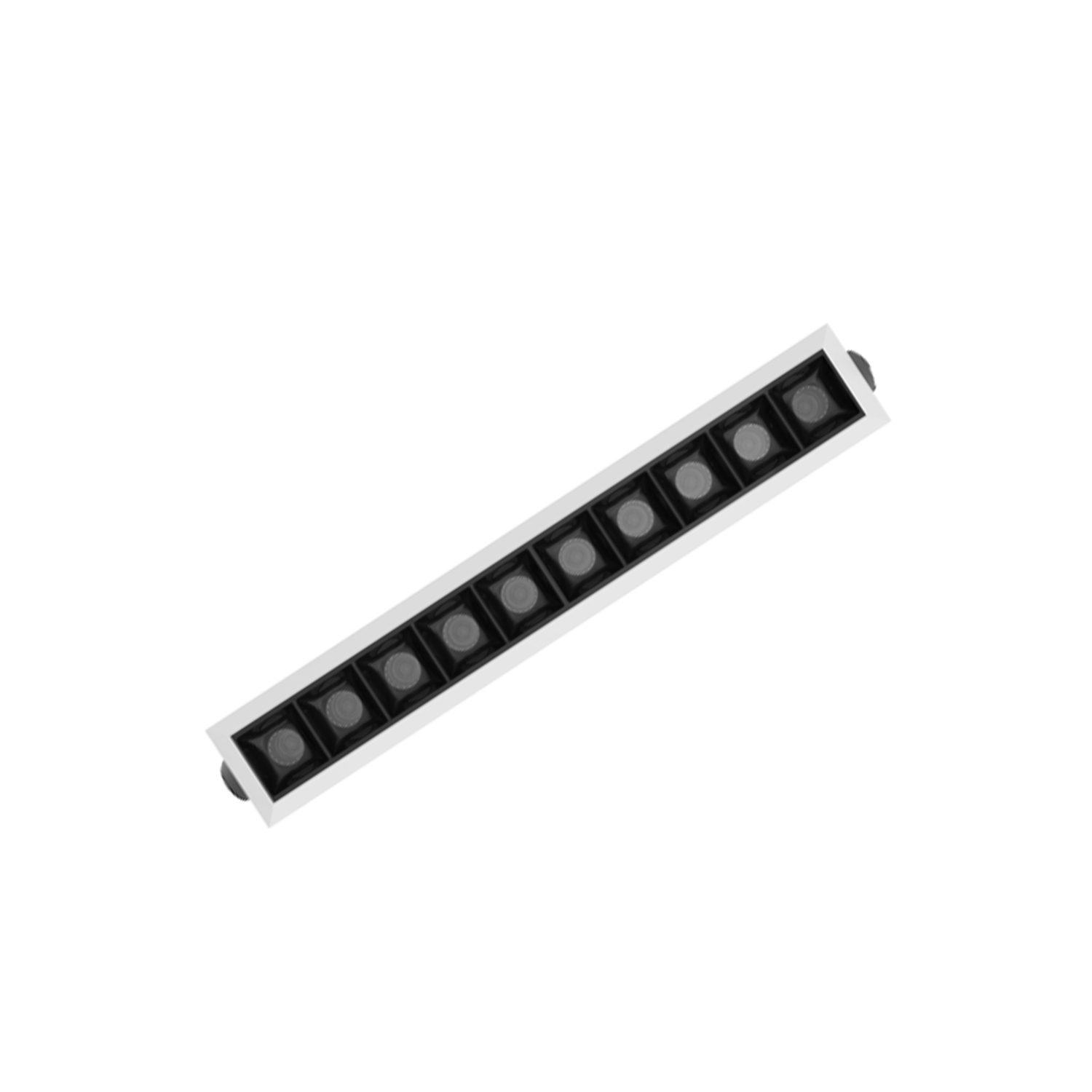

| LB2856 | Wattage10x2W (20W) | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsL279xW45xH52mm | Cut-out272x37mm |
| LB2919 | Wattage9W | CCT2700K | IPIP20 | Dimensions147x45x50mm | Cut-out139x37mm |

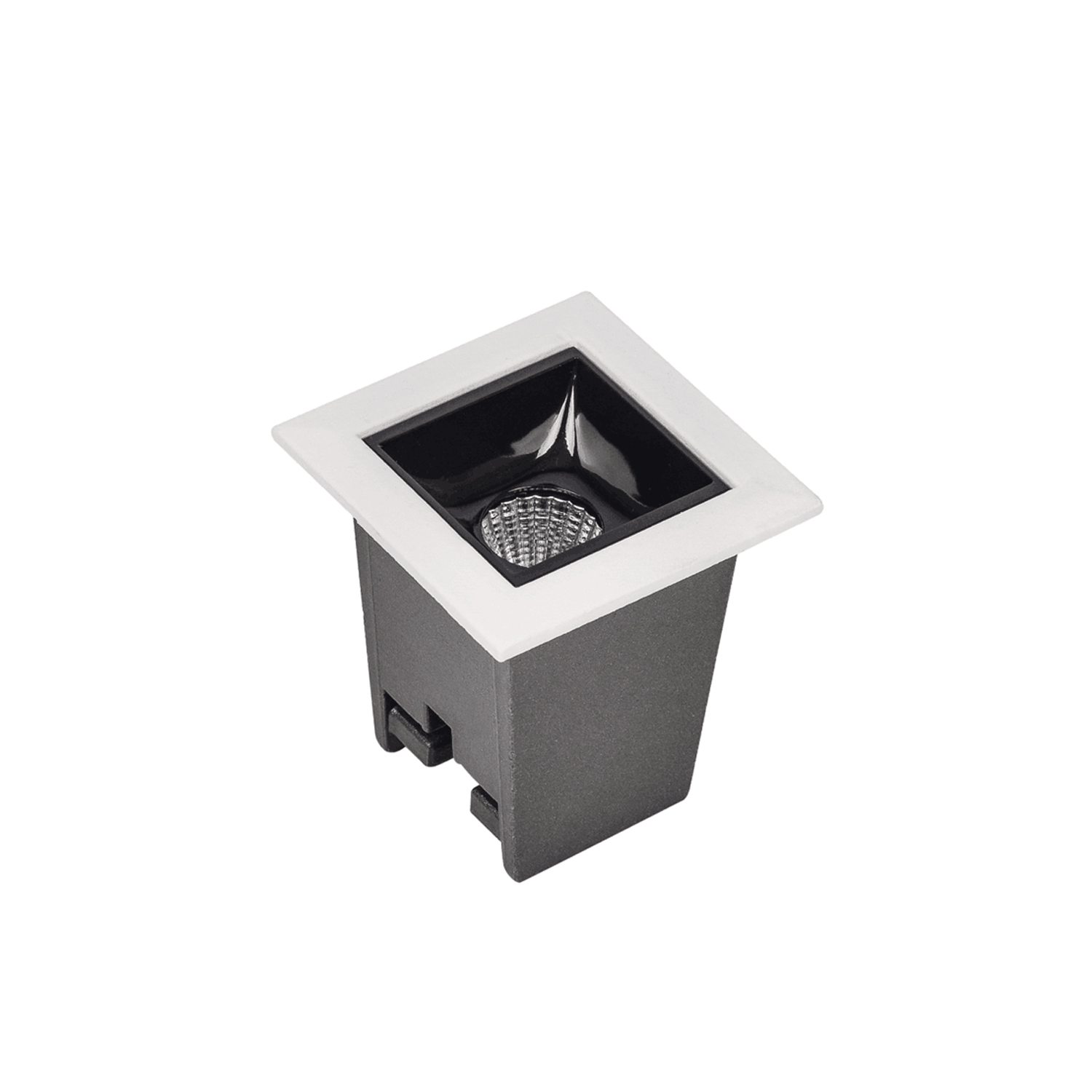

| LB2943 | Wattage2W | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions45x45x49mm | Cut-out37x37mm |

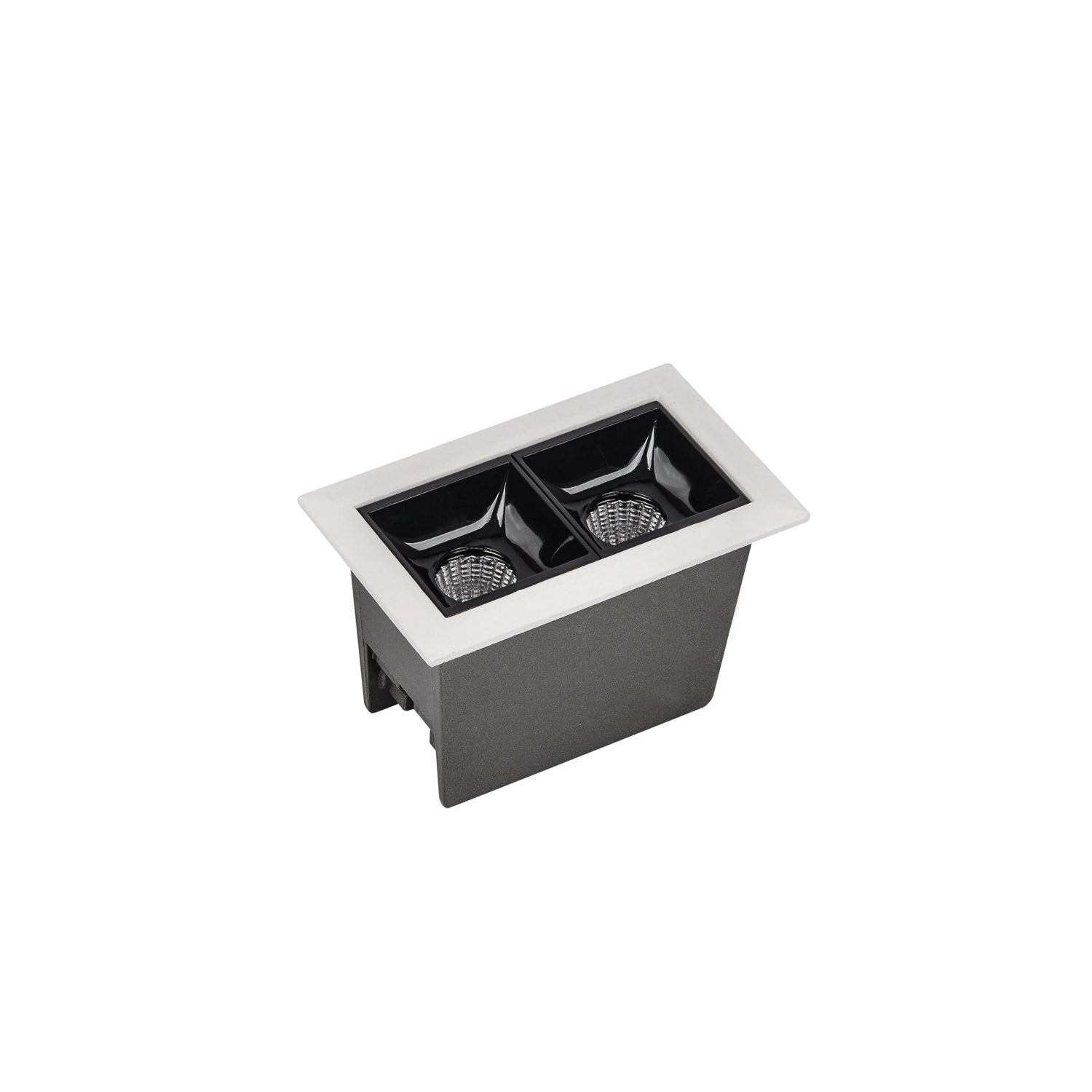

| LB2944 | Wattage2x2W(4W) | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions45x45x49mm | Cut-out37x37mm |

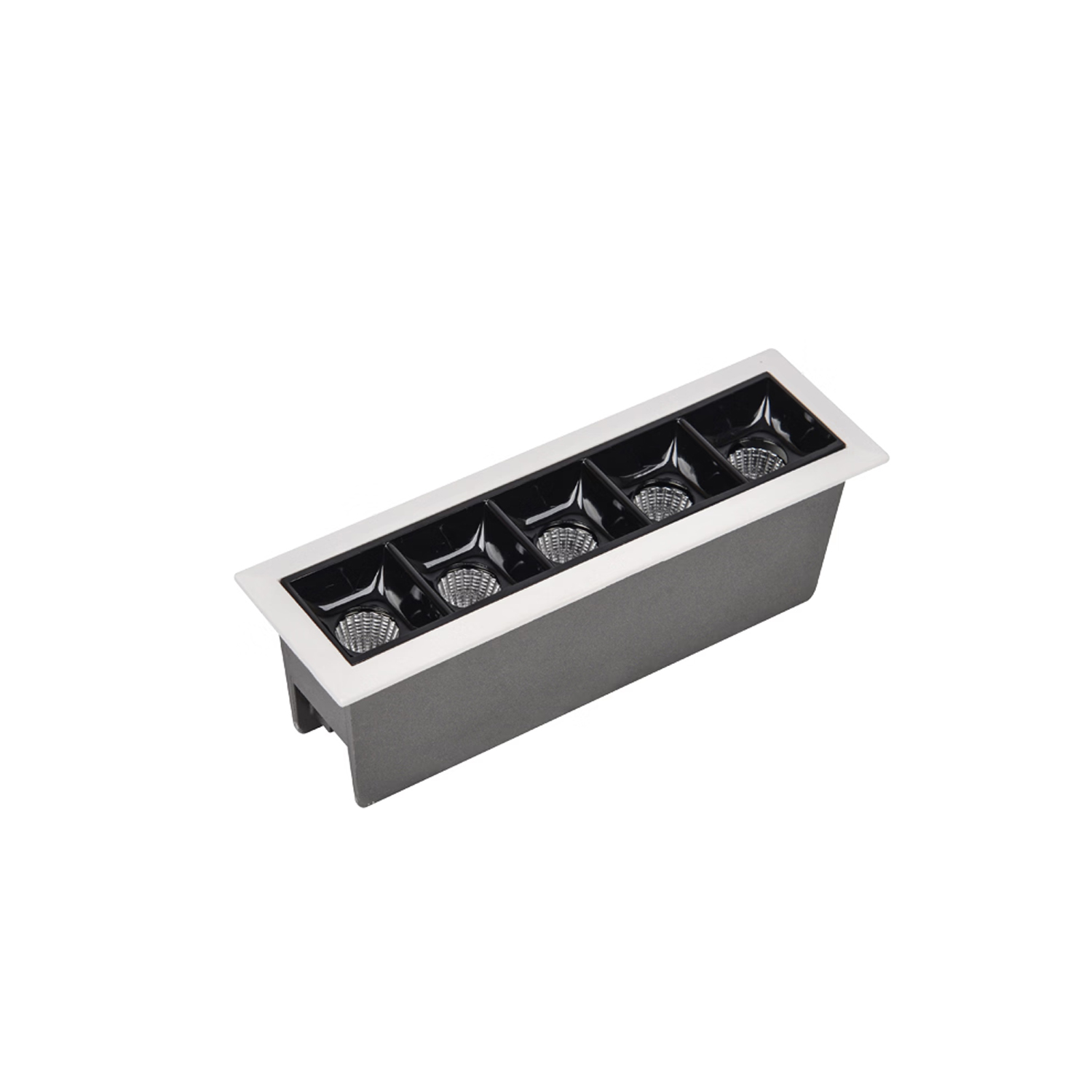

| LB2945 | Wattage5x2W(10W) | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions147x45x49mm | Cut-out140x37mm |

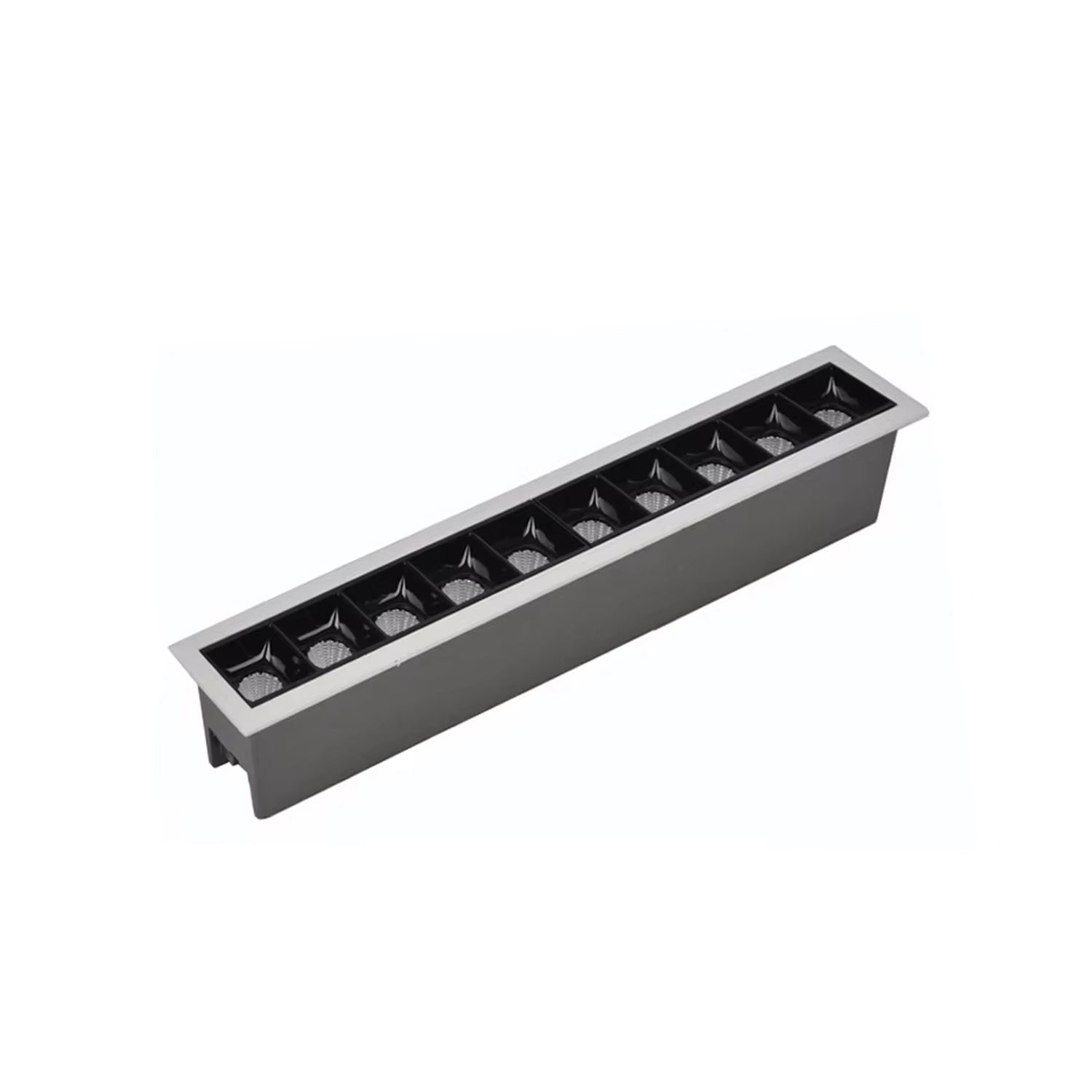

| LB2946 | Wattage20W | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions280x45x49mm | Cut-out273x37mm |
| LB2947 | Wattage30W | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions413x45x49mm | Cut-out405x37mm |
Technical Data
Full Specification
| Dimensions | 90x44x52mm · 280x45x49mm · 444x105x96mm · L279xW45xH52mm +4 more |
|---|---|
| Cut-out | 83x36mm · 273x37mm · 425x90mm · 272x37mm +4 more |
| Power | 2W · 20W · 30W · 10x2W (20W) +3 more |
| Lumen output | 760lm · 1810lm · 1600lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 30° · 48° · ASYMMETRIC +4 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 80 · 90 · Ra ≥90 · >90 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current · 200-240VAC · 220-240VAC · 9VDC +1 more |
| Light source | Not published — technical review required |
| Material | Die casting Alum. · Die cast Aluminium+PC · Die-cast aluminium+Thermoplastic · Die casting aluminium +1 more |
| Finish | black-sand · White · white-with-sand+black · Black With Sand +4 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
10 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2368. This family has 10 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2368
90x44x52mm
Cut-Out
83x36mm
Specifications
At a Glance
2–30W
Power Range
6 options
Beam: 15°, 24°, 30°, 48°, 97°, 100°
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI 80/90
Colour Rendering
IP20
Protection Rating
6 finishes
Body Finish Options
8 sizes
147x45x49mm, 147x45x50mm, 280x45x49mm, 413x45x49mm, 444x105x96mm, 45x45x49mm, 90x44x52mm, L279xW45xH52mm
8 cut-outs
139x37mm, 140x37mm, 272x37mm, 273x37mm, 37x37mm, 405x37mm, 425x90mm, 83x36mm
Configure your product
LB2368
Order code
Listed configurationLB2368.C.850.PAB.30
48 listed configurations · availability requires confirmation
