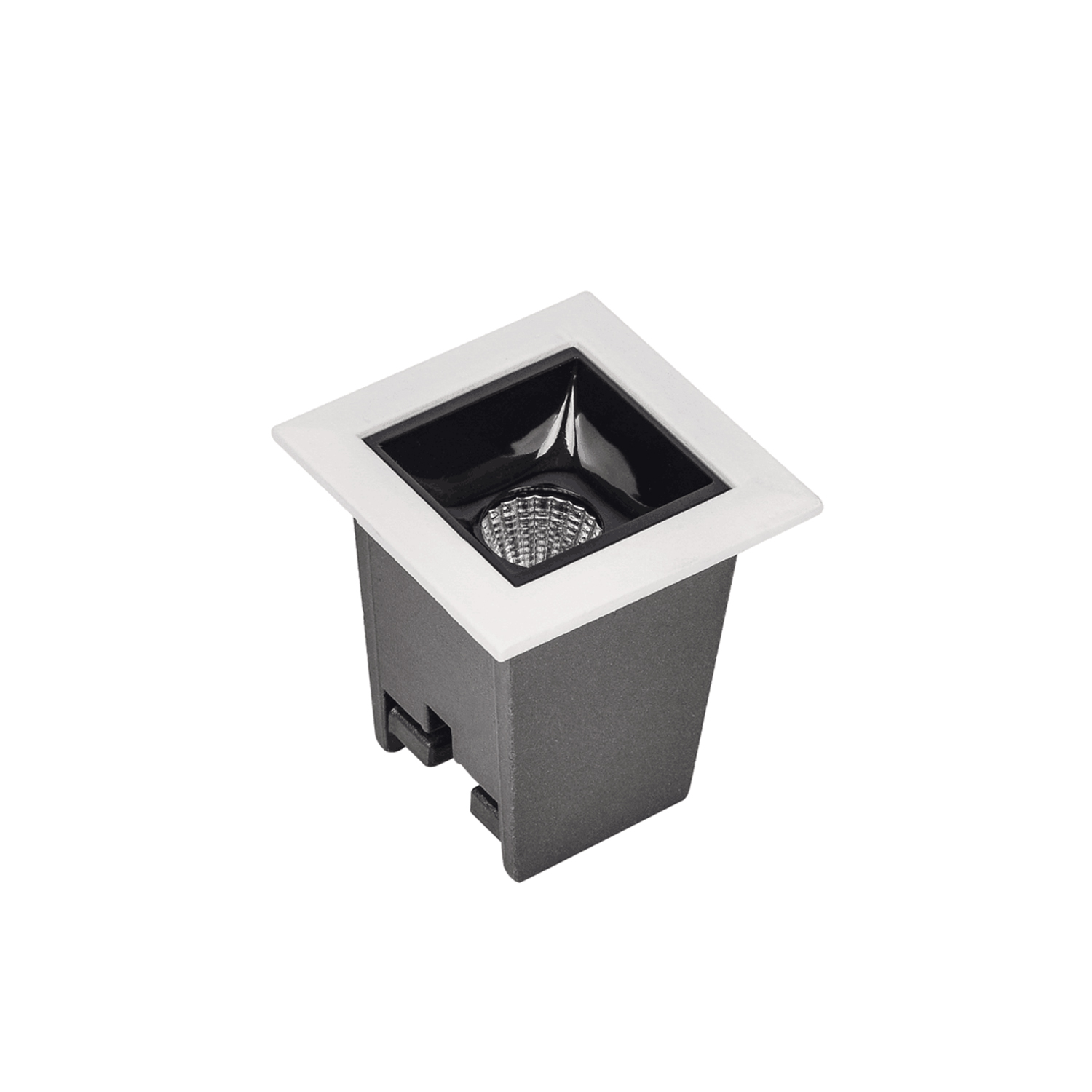

LB2943 Spot Light

LB2943: specifications and applications

LB2943 is the ORVILLE LB2943 - SPOT LIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LB2943 together, so it can be compared with other ORVILLE models without substituting the dimensions or options of a neighbouring article.

The LB2943 catalogue record lists power: 2W. Coordinate this load with the circuit schedule and the selected control gear.

The LB2943 catalogue record lists body dimensions: 45x45x49mm. Check the housing against the architectural detail and the space reserved for installation.

The LB2943 catalogue record lists cut-out: 37x37mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The LB2943 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 6000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LB2943 catalogue record lists colour rendering: >90. Include this catalogue value in the material and display-lighting comparison for the project.

The LB2943 catalogue record lists optical distribution: 15°,24°,36°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LB2943 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LB2943 catalogue record lists electrical requirement: 350mA 9V. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LB2943 catalogue record lists finish or material: White+Mirror Black. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LB2943 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

Accent lighting for retail, hospitality and residential interiors starts with the object or surface that needs emphasis. Compare the selected optic with the target size and mounting distance, and review colour appearance alongside surrounding finishes. A clear model and configuration reference helps the lighting schedule distinguish focused feature lighting from the general lighting elsewhere in the same space.

LB2943 has 1 listed order-code configuration. The listed code is LB2943.W.930.WWH+MBK.24. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LB2943 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another ORVILLE article.
