Lumi Indoor
OVEGA
Application inspiration · not a project reference
OVEGA is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Track Light
OVEGA
Technical Data
Full Specification
| Dimensions | φ64xH182mm · φ62xH164mm · φ72xH175mm · Ø35x135mm +1 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 32W · 24W · 18W · 40W |
| Lumen output | 1717-2128lm · 2022-2577lm · 3600LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 16° · 36° · 42° · A +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90 · 80+/ 90+ · 80Ra |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White · black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP1015. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP1015
φ64xH182mm
Specifications
At a Glance
14–40W
Power Range
4 options
Beam: 16°, 20°, 55°, 60°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CCT TUNABLE+RGBCW
Colour Options
CRI 80/90
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
5 sizes
D92xH205mm, Ø35x135mm, φ62xH164mm, φ64xH182mm, φ72xH175mm
Configure your product

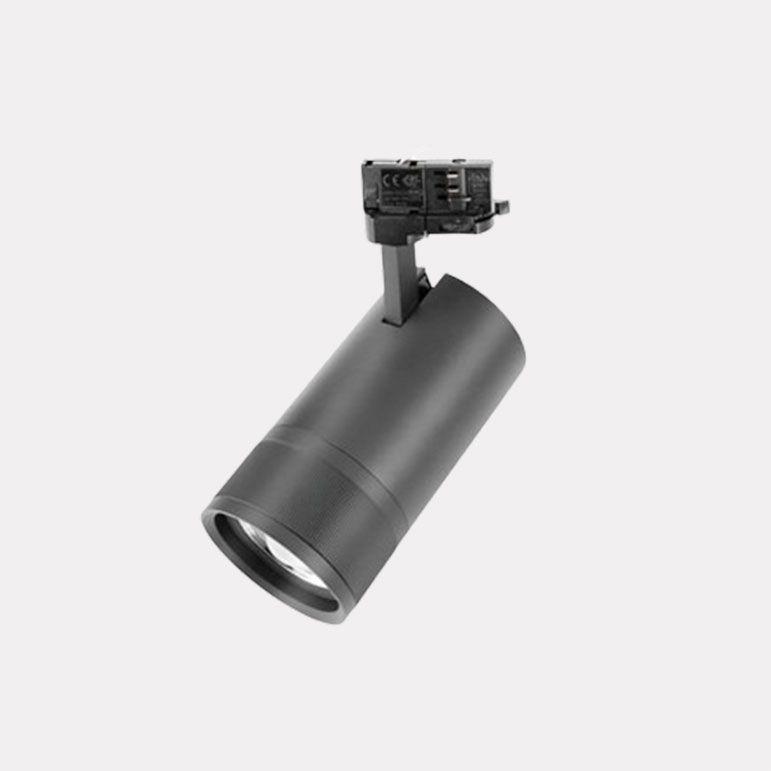

LBP1015
Order code
Listed configurationLBP1015.C.960.WWH.A
10 listed configurations · availability requires confirmation
