LBP1014 Track Light

LBP1014: specifications and applications

LBP1014 is the OVEGA LBP1014 - SPOT LIGHT lighting model in the lumi indoor catalogue, listed under TRACK LIGHT. This page keeps the specifications, configuration choices and project notes for LBP1014 together, so it can be compared with other OVEGA models without substituting the dimensions or options of a neighbouring article.

The LBP1014 catalogue record lists power: 24W. Coordinate this load with the circuit schedule and the selected control gear.

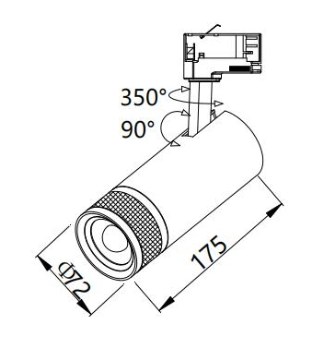

The LBP1014 catalogue record lists body dimensions: φ72xH175mm. Check the housing against the architectural detail and the space reserved for installation.

The LBP1014 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K, 6000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LBP1014 catalogue record lists colour rendering: 80+/ 90+. Include this catalogue value in the material and display-lighting comparison for the project.

The LBP1014 catalogue record lists optical distribution: 20°-55° Adjustable & Zommable. Compare the listed option with target distance, spacing and the surface being illuminated.

The LBP1014 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LBP1014 catalogue record lists electrical requirement: 220-240VAC (ON/OFF). Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LBP1014 catalogue record lists finish or material: Black/White. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LBP1014 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

Retail displays, galleries and changing hospitality layouts call for careful coordination between the track system and the selected lighting module. Compare beam coverage at the actual display distance, the relationship between adjacent heads and the colour of the merchandise. Keep the model reference attached to its compatible system and electrical specification rather than treating different track formats as interchangeable.

LBP1014 has 10 listed order-code configurations. Examples from this model are LBP1014.C.960.WWH.A, LBP1014.C.960.WBK.A, LBP1014.C.950.WWH.A. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LBP1014 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another OVEGA article.

Main model page: LBP1014
