Down Light
RAFAL
RAFAL is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 13 article codes under this family, including LB3131, LB3150, LB3151. For LB3131, published values include power: 30W; colour temperature: 4000K; IP rating: IP20; dimensions: Ø195x200mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the RAFAL articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

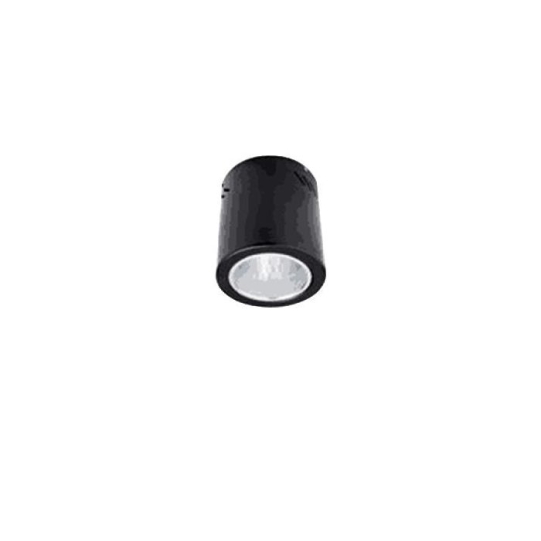

| LB3131 | Wattage30W | CCT4000K | IPIP20 | DimensionsØ195x200mm | Cut-outØ158x158mm |

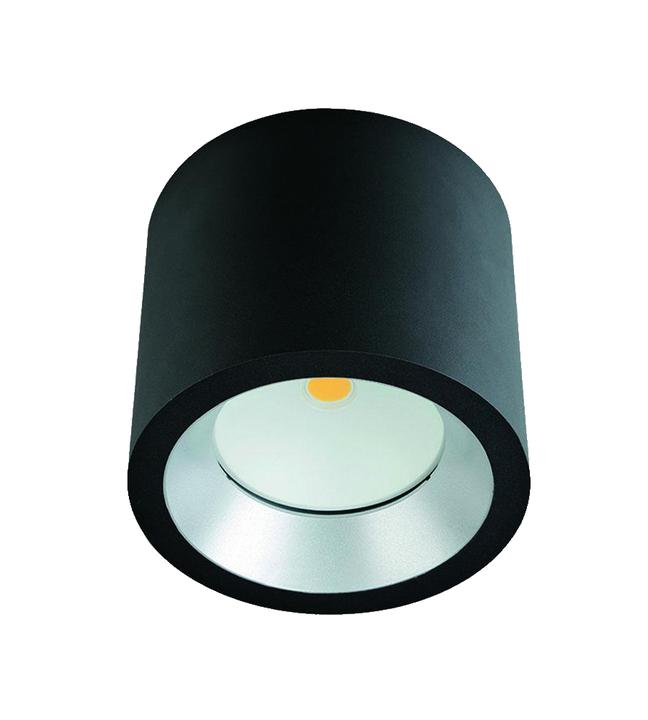

| LB3150 | Wattage40W | CCT3000K | IPIP65 | DimensionsØ168x150mm | Cut-outØ150mm |
| LB3151 | WattageNot published | CCT3000K | IPIP65 | DimensionsØ168x150mm | Cut-outNot published |

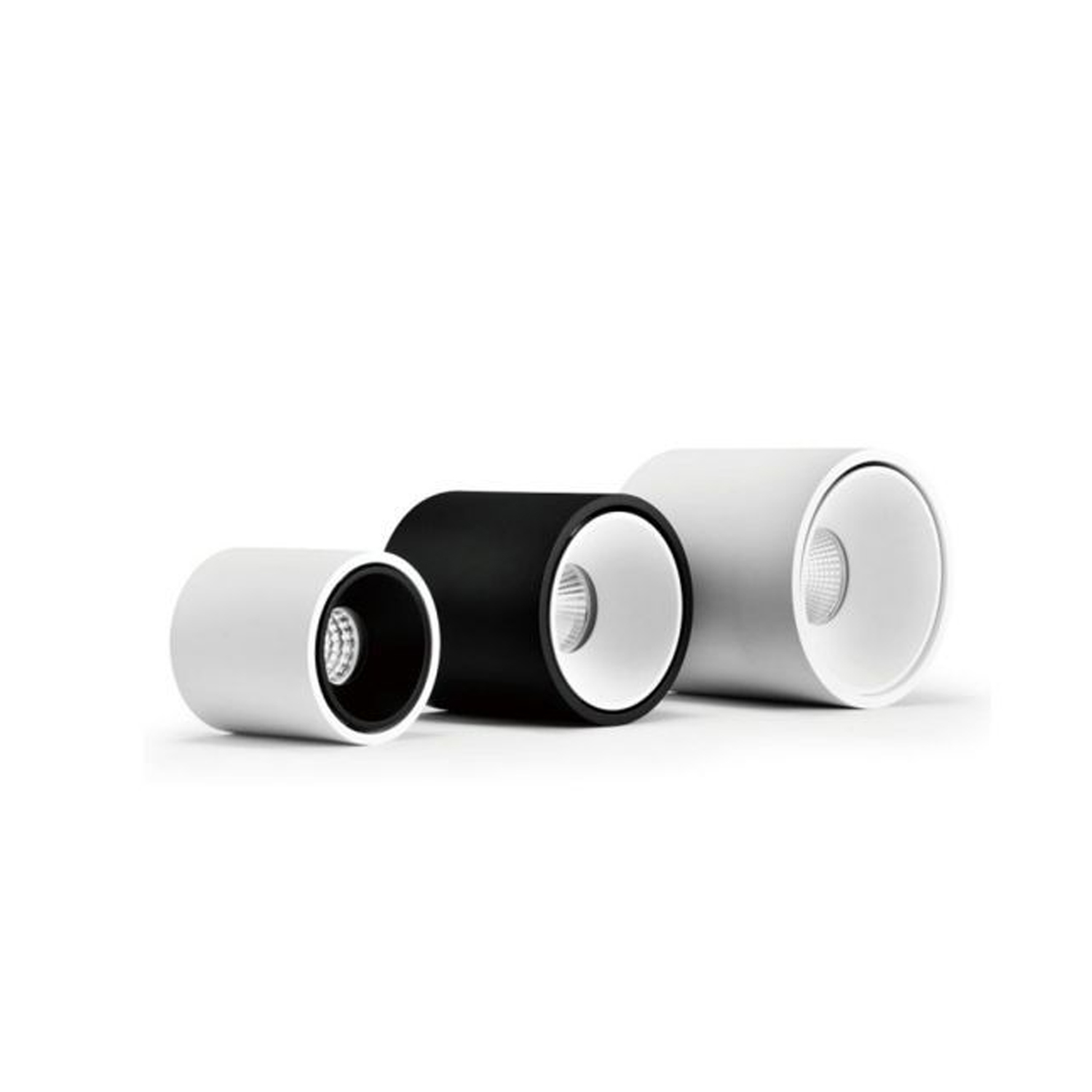

| LB3294 | Wattage10W | CCT3000K/4000K/6000K | IPIP20 | DimensionsØ80x80mm | Cut-outNot published |

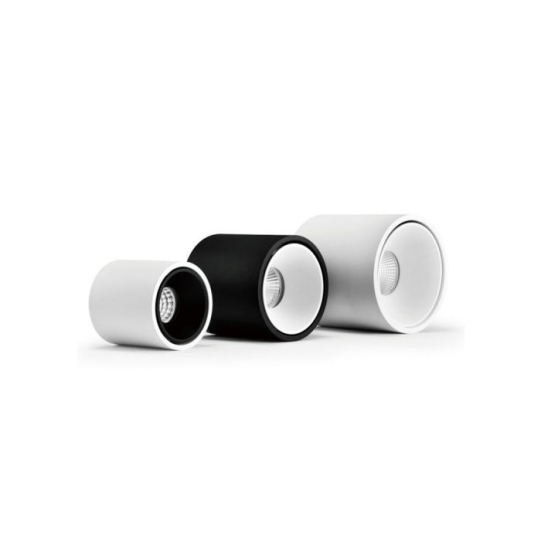

| LB3295 | Wattage20W | CCT3000K/4000K/6000K | IPIP20 | Dimensions100x100mm | Cut-outNot published |
| LB3296 | Wattage30W | CCT3000K/4000K/6000K | IPIP20 | DimensionsØ120x120mm | Cut-outNot published |

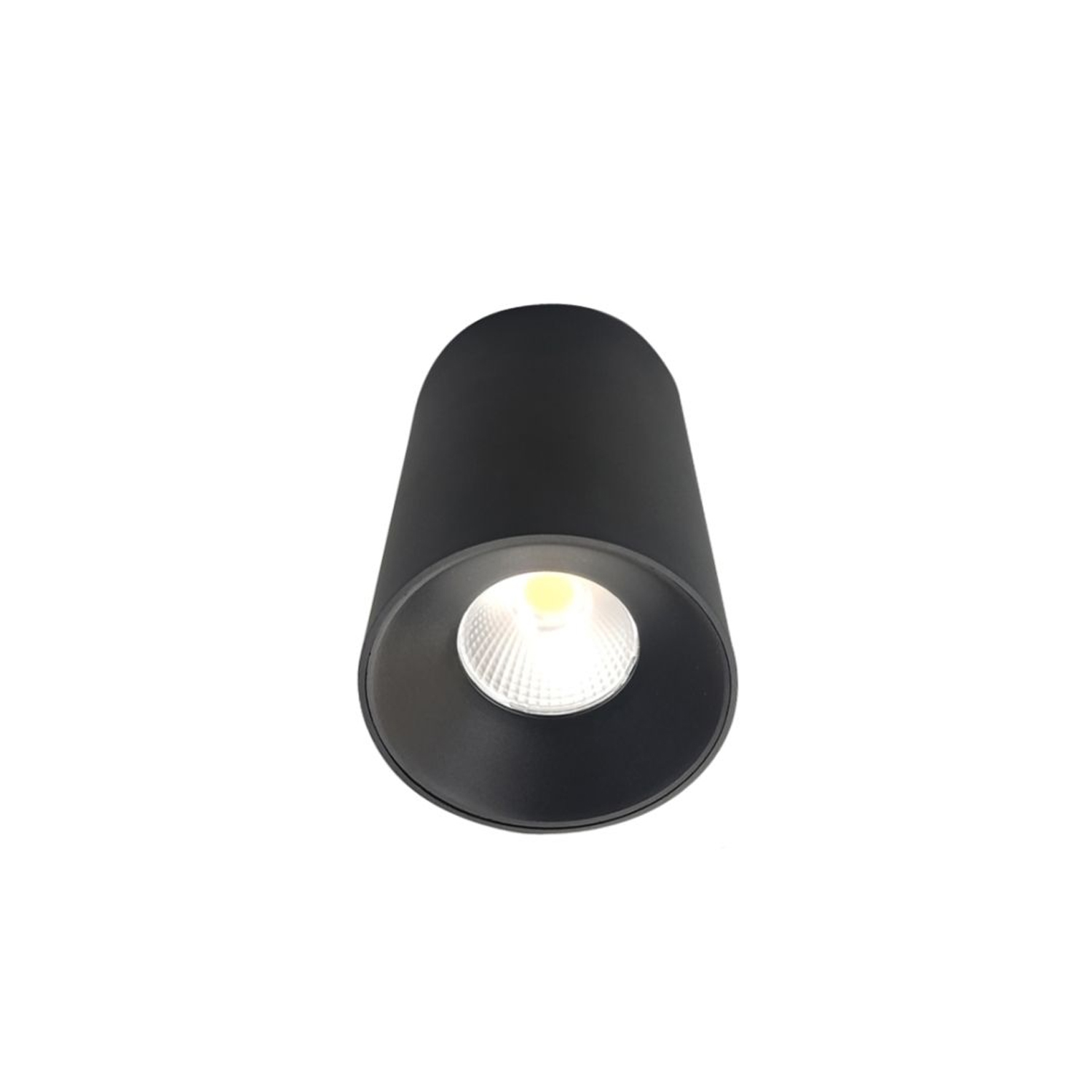

| LB3313 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K | IPIP40 | DimensionsØ92mmxH152mm | Cut-outNot published |

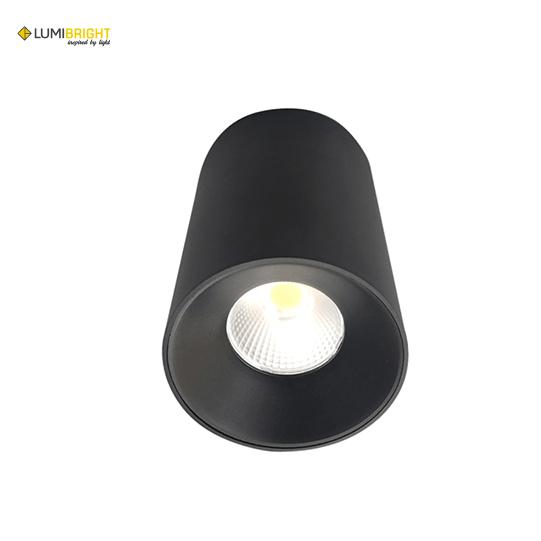

| LB3316 | Wattage20W | CCT4000K | IPIP40 | DimensionsØ92xH152mm | Cut-outNot published |

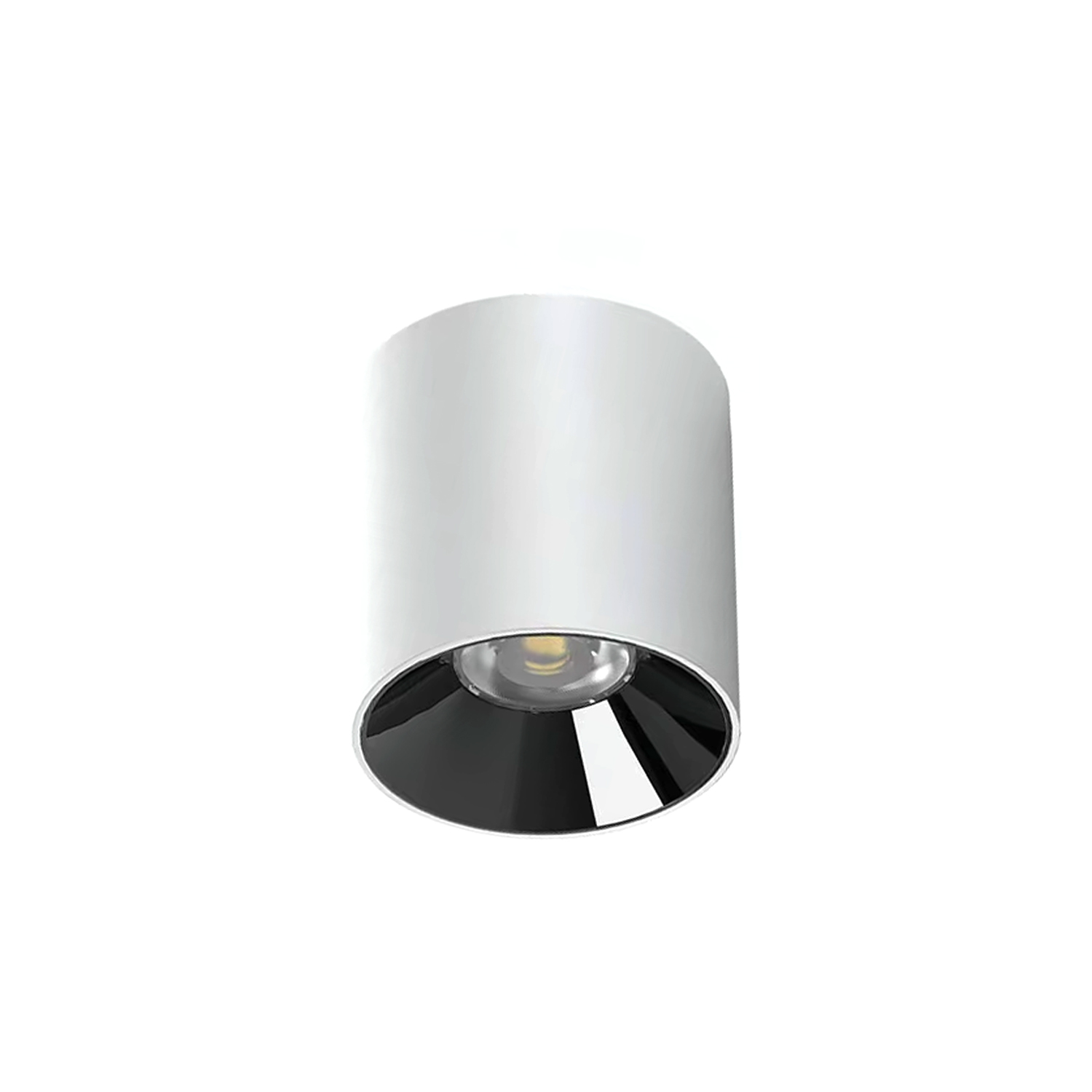

| LB3320 | Wattage20W | CCT4000K | IPIP20 | DimensionsØ92xH100mm | Cut-outNot published |

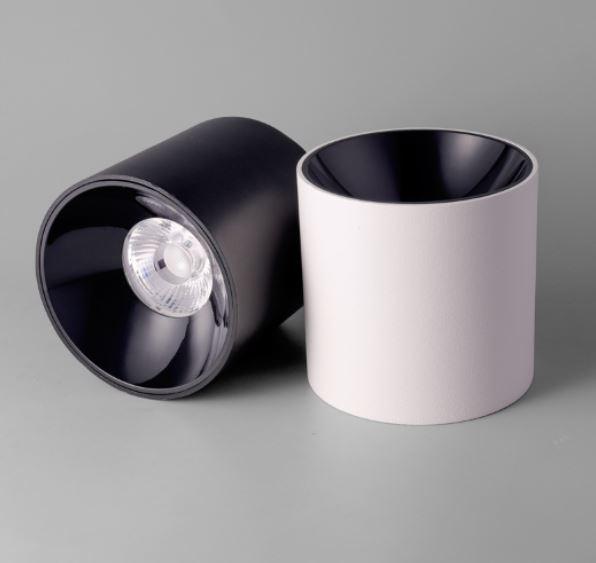

| LB3321 | Wattage25W | CCT4000K | IPIP20 | DimensionsØ120xH100mm | Cut-outNot published |

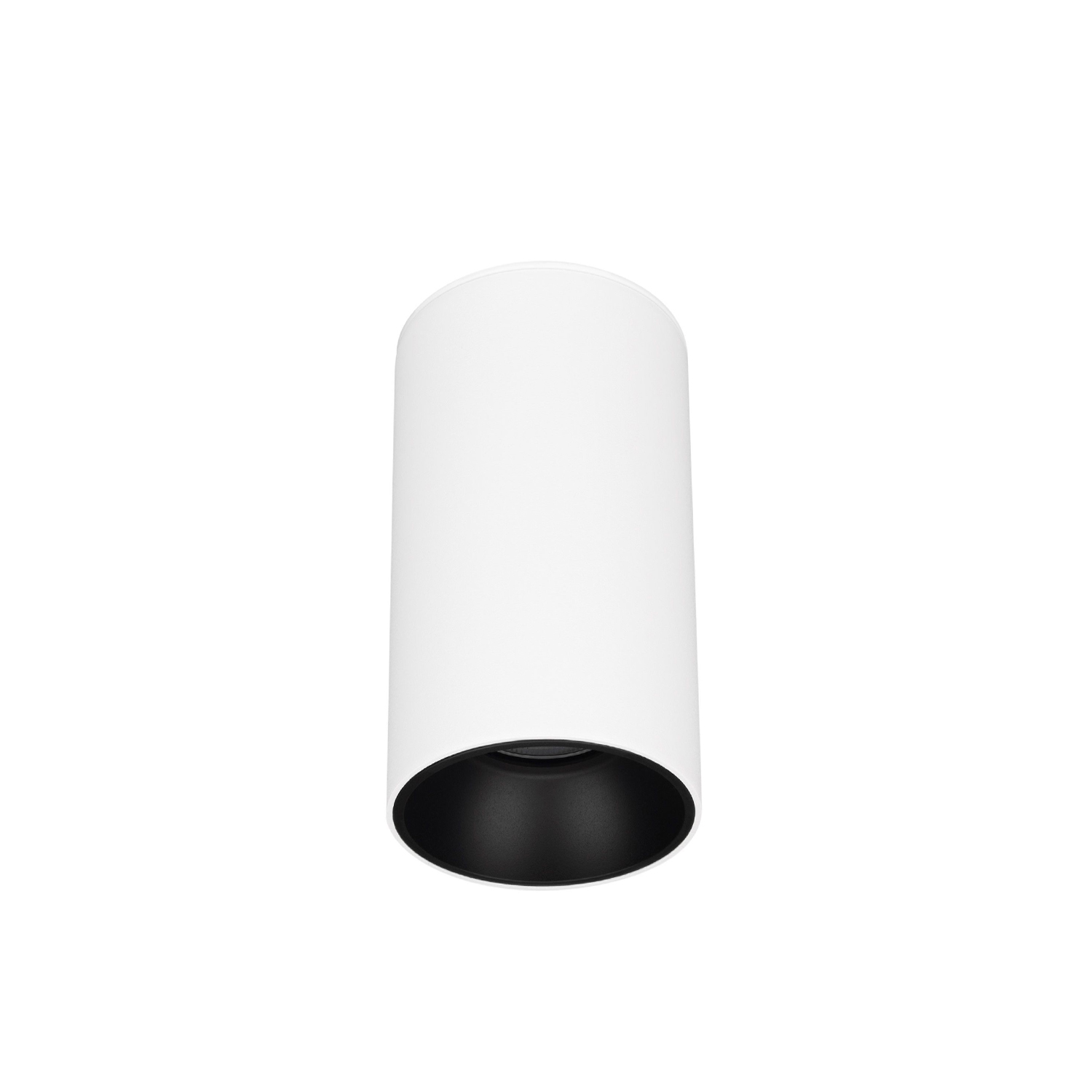

| LB3325 | Wattage9W | CCT4000K | IPIP20 | DimensionsØ60x150mm | Cut-outNot published |

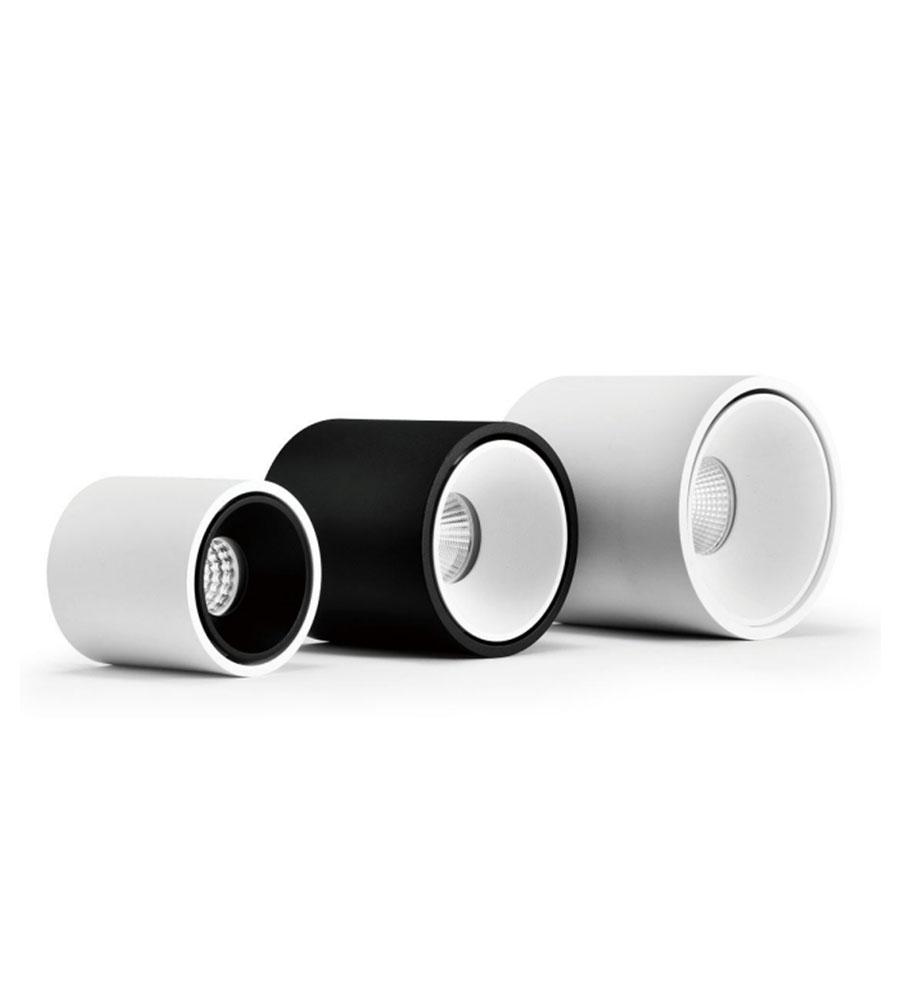

| LBT3014 | Wattage10W | CCT3000K | IPIP20 | DimensionsØ80x80mm | Cut-outNot published |
| LBT3024 | Wattage25W | CCT3000K | IPIP20 | Dimensionsφ115*160MM | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø195x200mm · Ø168x150mm · Ø80x80mm · 100x100mm +7 more |
|---|---|
| Cut-out | Ø158x158mm · Ø150mm |
| Power | 40W · 10W · 20W · 30W +2 more |
| Lumen output | 645lm · 1356lm · 2107lm · 800-900lm +3 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 60° · 40° · 38° +3 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 80 · >90 · ≥80 · >80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP20 · IP40 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 220-240VAC · 200-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium · Aluminium+PC |
| Finish | silver · White · black · grey +7 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
13 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3150. This family has 13 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB3150
Ø168x150mm
Cut-Out
Ø150mm
Specifications
At a Glance
9–40W
Power Range
8 options
Beam: 20°, 24°, 30°, 36°, 38°, 40°, 60°, 90°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 80/90
Colour Rendering
IP20 / IP40 / IP65
Protection Rating
8 finishes
Body Finish Options
11 sizes
100x100mm, Ø120x120mm, Ø120xH100mm, Ø168x150mm, Ø195x200mm, Ø60x150mm, Ø80x80mm, Ø92mmxH152mm, Ø92xH100mm, Ø92xH152mm, φ115*160MM
2 cut-outs
Ø150mm, Ø158x158mm
Configure your product
LB3313
Order code
Listed configurationLB3313.N.840.WWH.38.TDIM
13 listed configurations · availability requires confirmation
