Product Information
- Category:
- DOWN LIGHT
- Family:
- RAFAL
- Dimension:
- Ø120x120mm
- Input Voltage:
- 220-240V
- Light Source:
- CREE LED
- Material:
- Aluminum
- Life Time:
- 25000h
- Operating Temp:
- -20℃-60℃
- Usage:
- indoor
- LED Quantity:
- 1pcs
Catalogue Specification
- Light Source:
- CREE LED
- Power:
- 30W
- Input Voltage:
- 220-240V
- Lumen Output:
- 2107lm
- Colour Temperature:
- 3000K/4000K/6000K
- Driver:
- EAGLERISE
- LED Quantity:
- 1pcs
- CRI:
- >90
- LED Life Time:
- 25000h
- Power Factor:
- >0.9
- Beam Angle:
- 30°
- Operating Temperature:
- -20℃-60℃
- Diffuser / Optic:
- PC
- Warranty:
- Written eligibility and policy confirmation required
- Material:
- Aluminum
- Body Finish:
- Sand White,Sand Black
- Dimensions:
- Ø120x120mm
- IP Rating:
- IP20
Applications
LB3296: specifications and applications

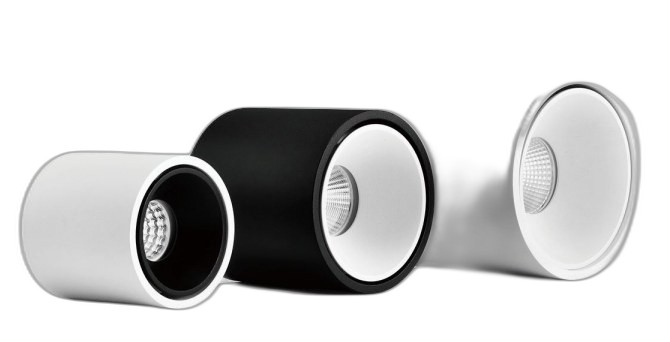

LB3296 is the RAFAL LB3296 - DOWN LIGHT lighting model in the lumi indoor catalogue, listed under DOWN LIGHT. This page keeps the specifications, configuration choices and project notes for LB3296 together, so it can be compared with other RAFAL models without substituting the dimensions or options of a neighbouring article.
The LB3296 catalogue record lists power: 30W. Coordinate this load with the circuit schedule and the selected control gear.
The LB3296 catalogue record lists body dimensions: Ø120x120mm. Check the housing against the architectural detail and the space reserved for installation.
The LB3296 catalogue record lists colour temperature: 3000K, 4000K, 6000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.
The LB3296 catalogue record lists colour rendering: >90. Include this catalogue value in the material and display-lighting comparison for the project.
The LB3296 catalogue record lists optical distribution: 30°. Compare the listed option with target distance, spacing and the surface being illuminated.
The LB3296 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.
The LB3296 catalogue record lists electrical requirement: 220-240V. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.
The LB3296 catalogue record lists finish or material: Sand White,Sand Black. Review the stated construction alongside adjoining architectural materials and sample approvals.
The LB3296 catalogue record lists mounting: ceiling-recessed. Check the fixing arrangement and access for installation before finalising the detail.
Compare LB3296 with the lighting brief for the room, feature or circulation area being designed. Review the available model data alongside the architectural layout, viewing positions and intended control scenes. Keep the article reference visible in the schedule so the design team can coordinate the selected product with its mounting detail and any associated equipment. Project-specific suitability depends on that complete selection.
The current record for LB3296 does not supply a complete list of order-code combinations. Use this base reference when requesting the model schedule, and confirm the exact finish, optical selection, electrical arrangement and included components before an order is specified. Missing options are not presented as available configurations.
For a LB3296 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another RAFAL article.
