RAYOS is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
RAYOS
RAYOS is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 13 article codes under this family, including LBE2008, LBE2009, LBE2010. For LBE2008, published values include power: 7W; colour temperature: 3000K/4000K/6000K (Switchable); IP rating: IP20; dimensions: Ø65x55mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the RAYOS articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

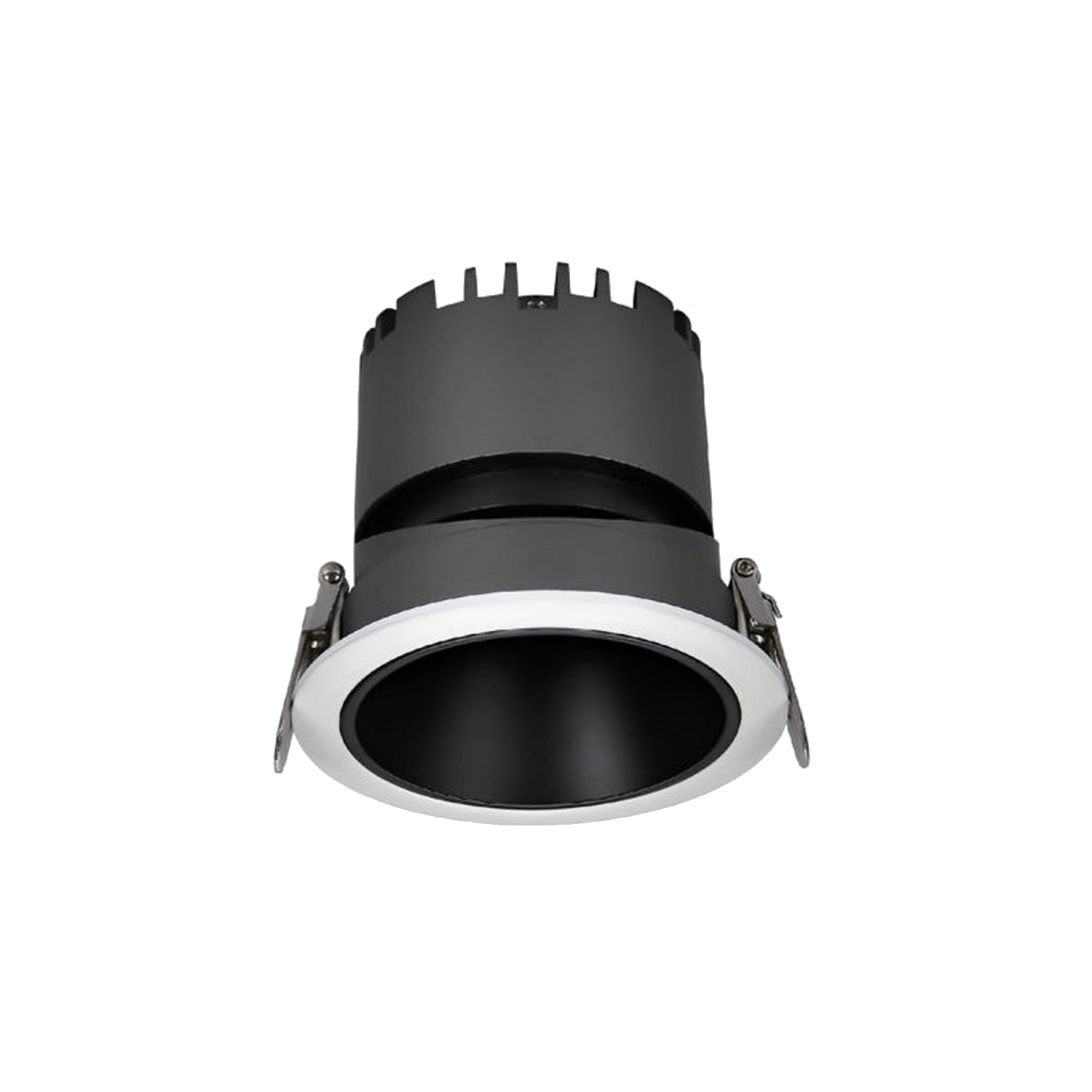

| LBE2008 | Wattage7W | CCT3000K/4000K/6000K (Switchable) | IPIP20 | DimensionsØ65x55mm | Cut-outØ55mm |

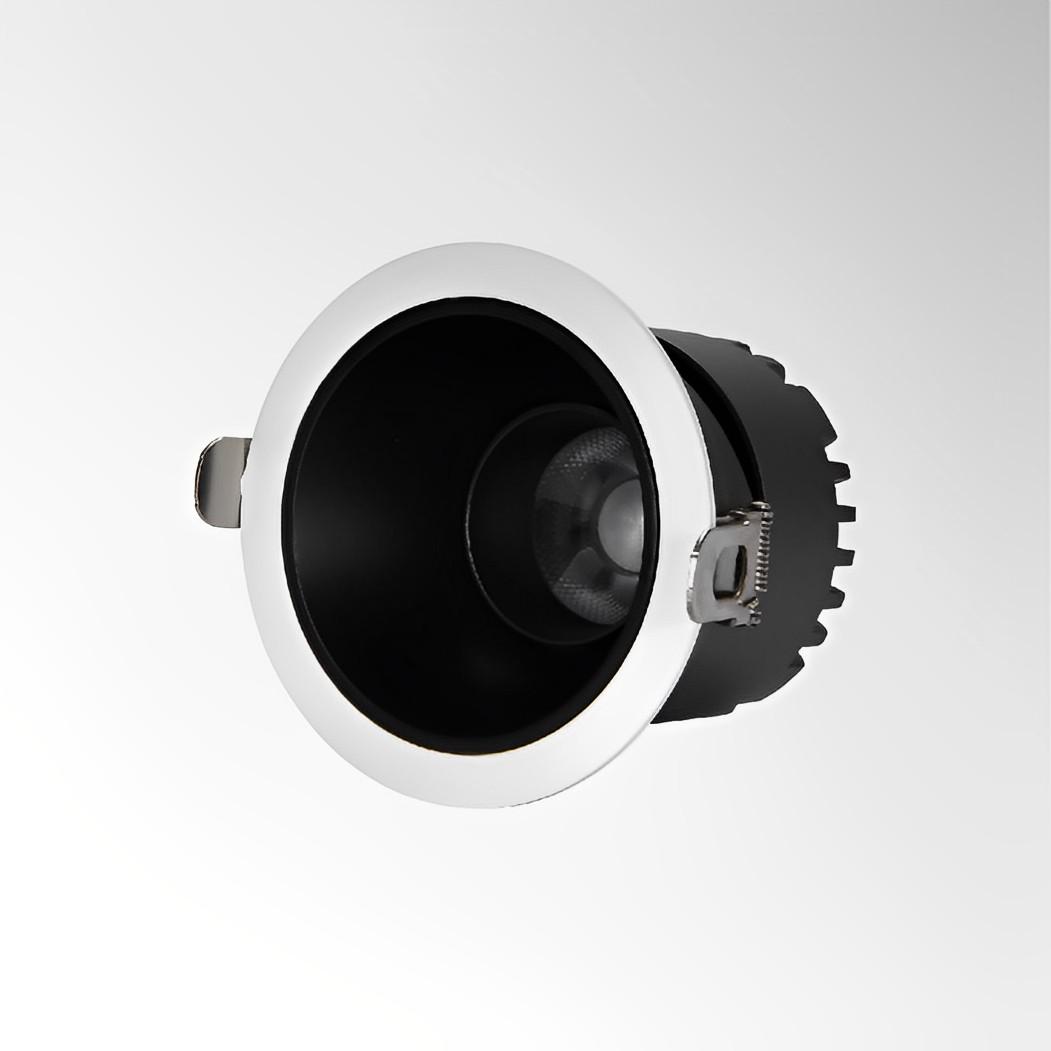

| LBE2009 | Wattage9W | CCT3000K/4000K/6000K (Switchable) | IPIP20 | DimensionsØ85x65mm | Cut-outØ75mm |

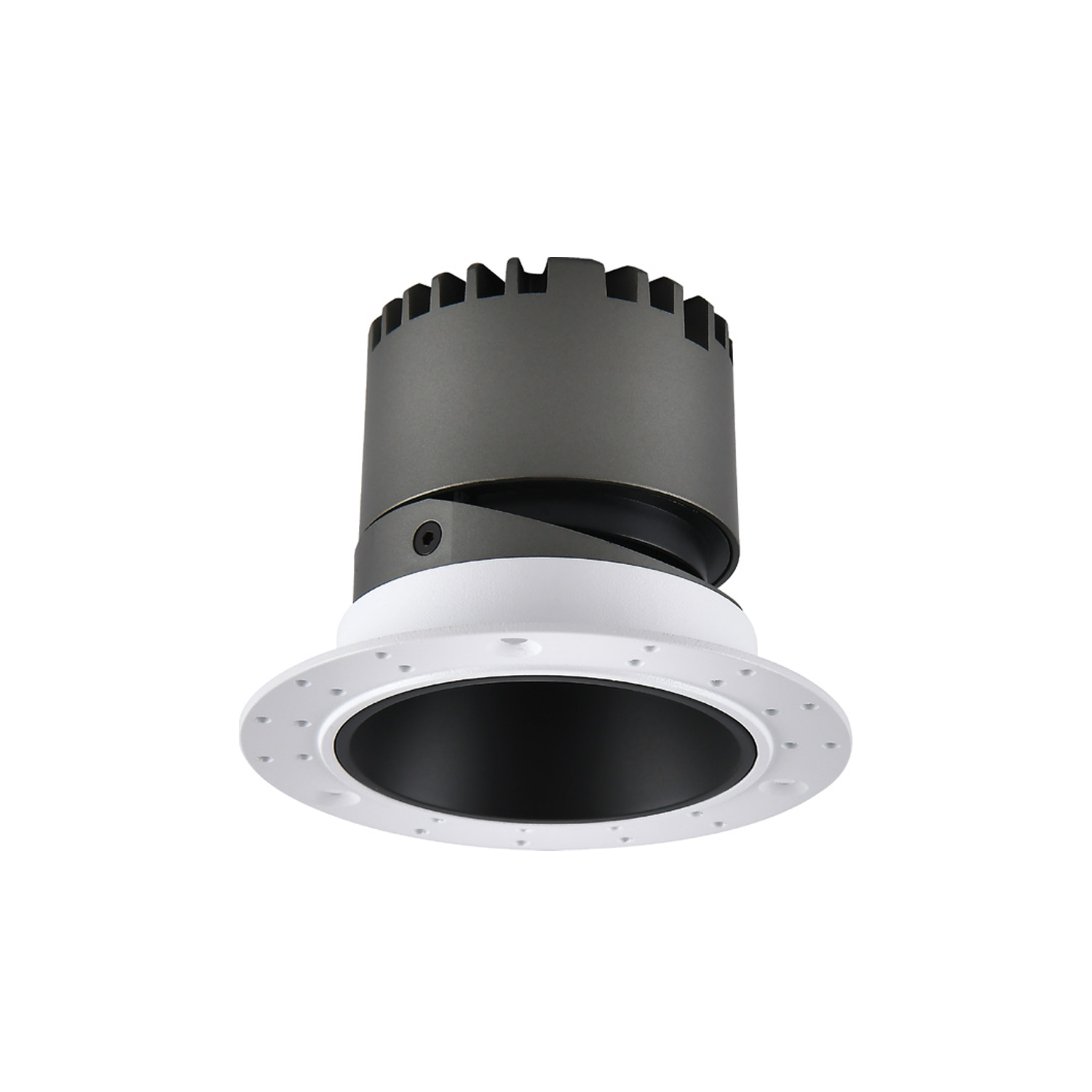

| LBE2010 | Wattage9W | CCT3000K/4000K/6000K (Switchable) | IPIP20 | DimensionsØ105x65mm | Cut-outØ75mm |

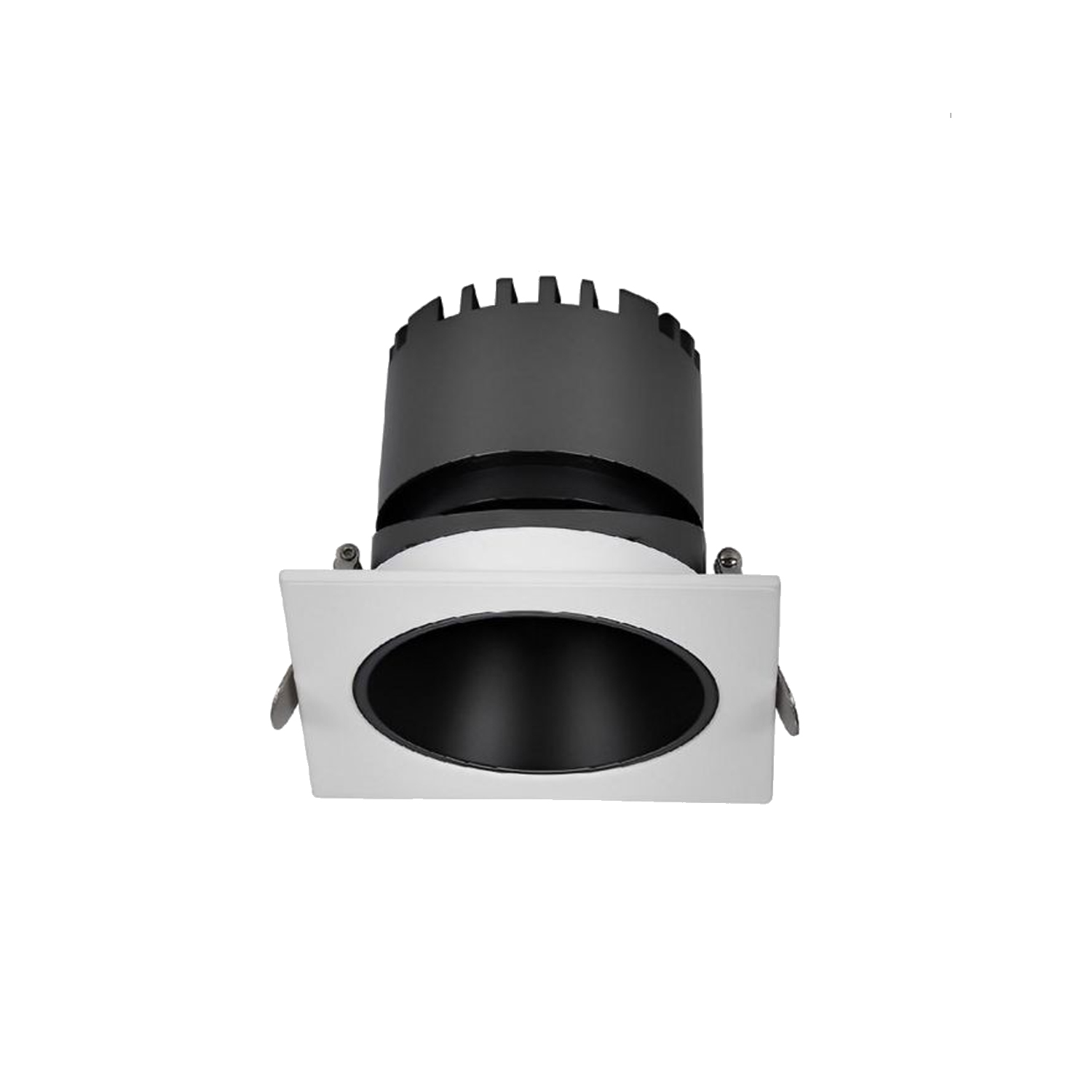

| LBE2011 | Wattage9W | CCT3000K/4000K/6000K (Switchable) | IPIP20 | Dimensions90x90x65mm | Cut-outØ75mm |

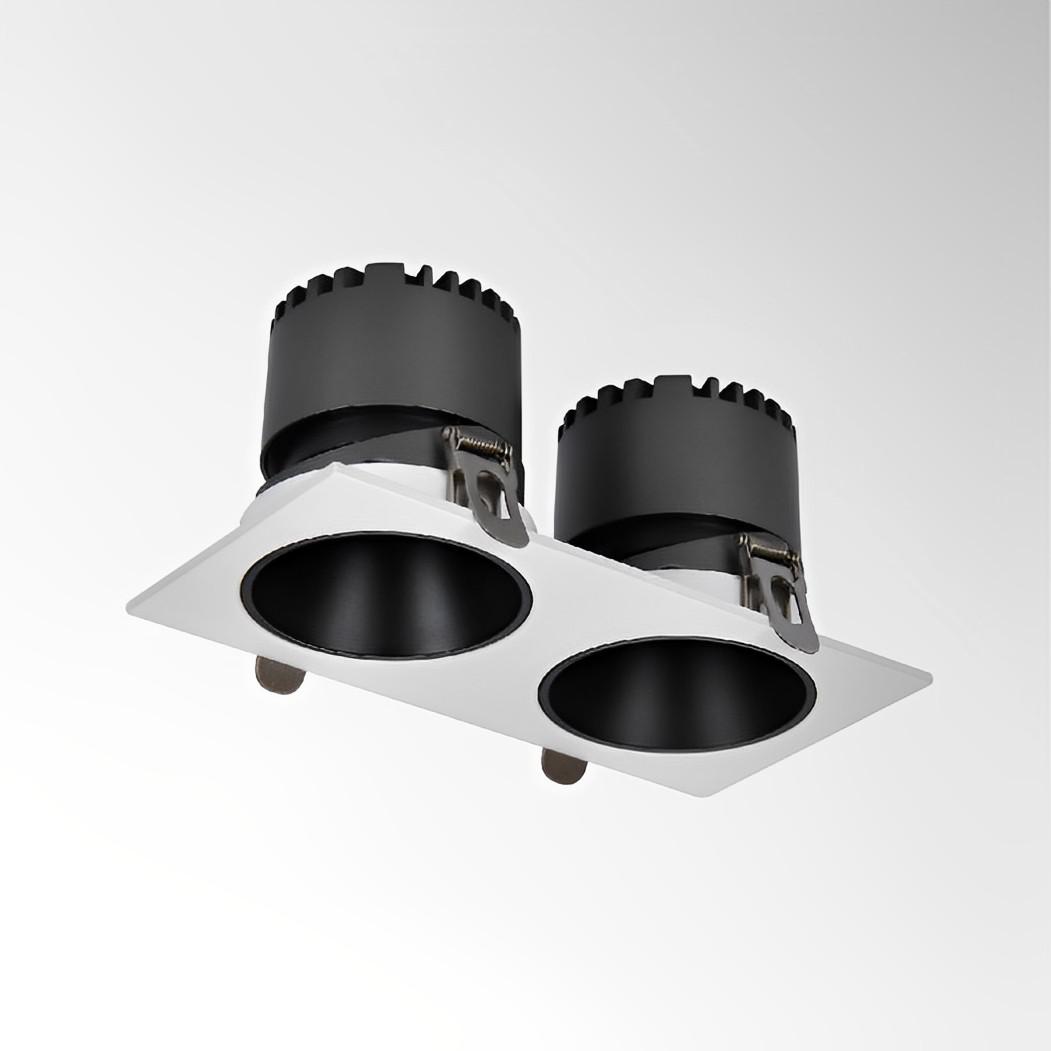

| LBE2012 | Wattage2x9W | CCT3000K/4000K/6000K (Switchable) | IPIP20 | Dimensions180x90x69mm | Cut-out162x75mm |

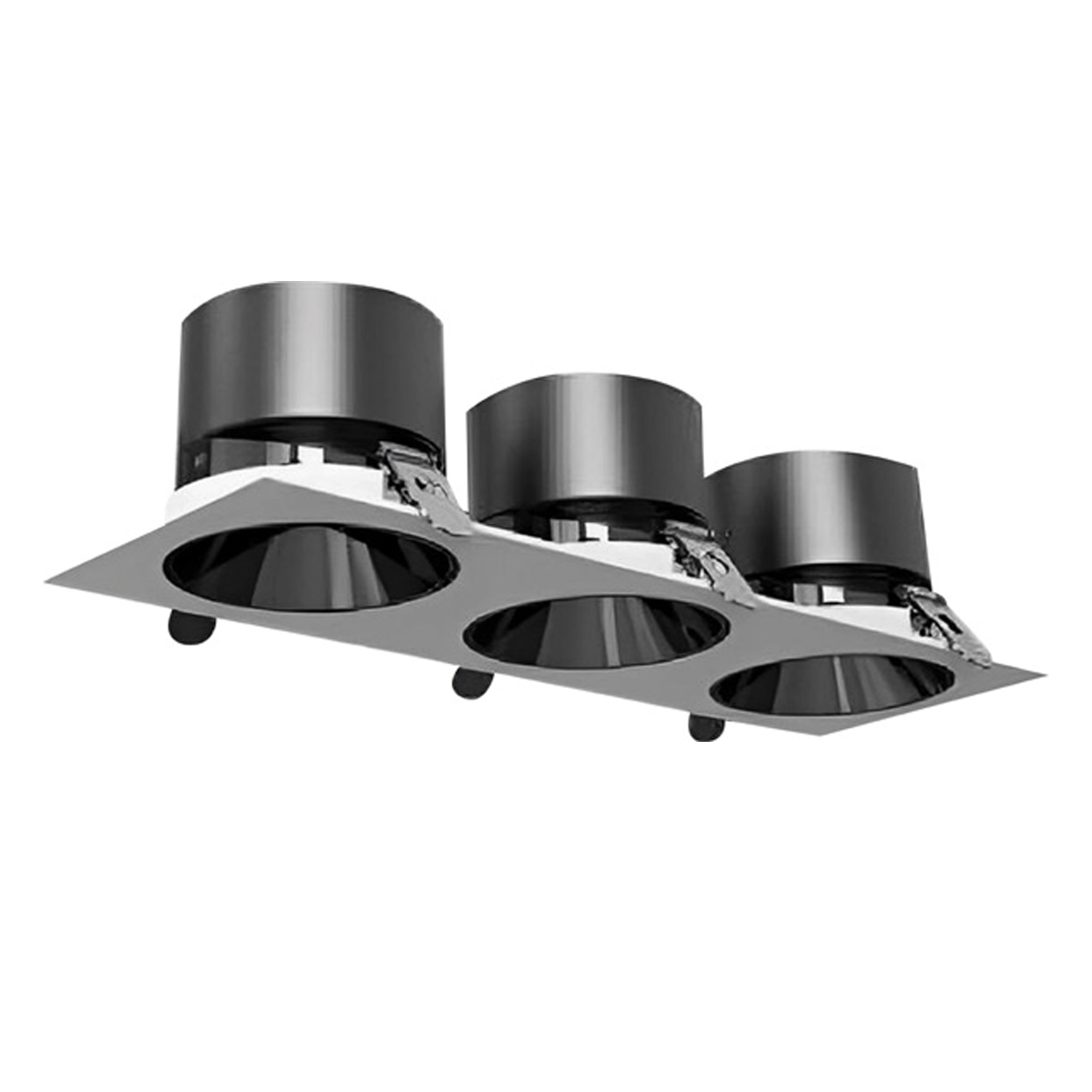

| LBE2013 | Wattage3x9W | CCT3000K/4000K/6000K (Switchable) | IPIP20 | Dimensions270x90x69mm | Cut-out250x75mm |

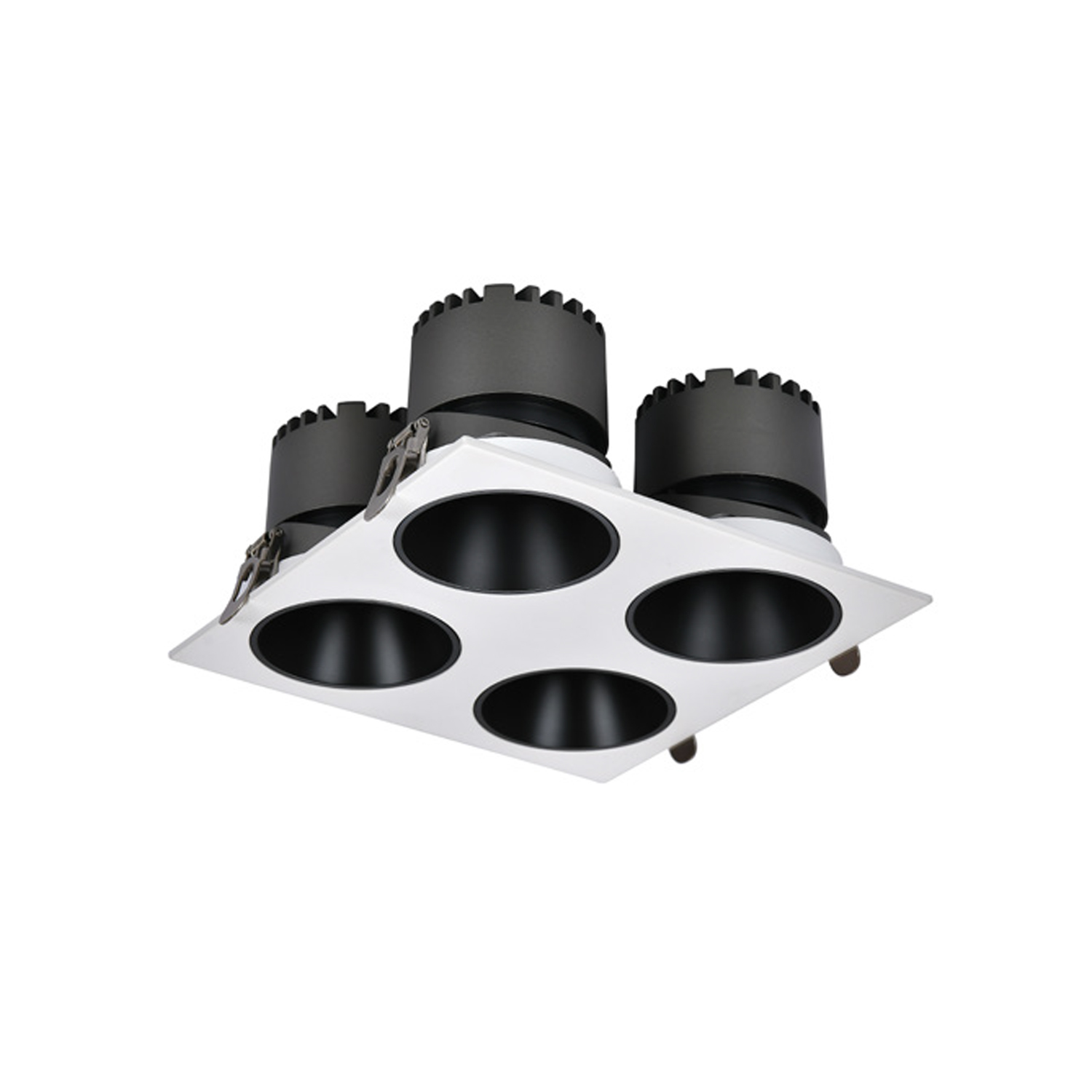

| LBE2014 | Wattage4x9W | CCT3000K/4000K/6000K (Switchable) | IPIP20 | Dimensions180x180x65mm | Cut-out162x162mm |

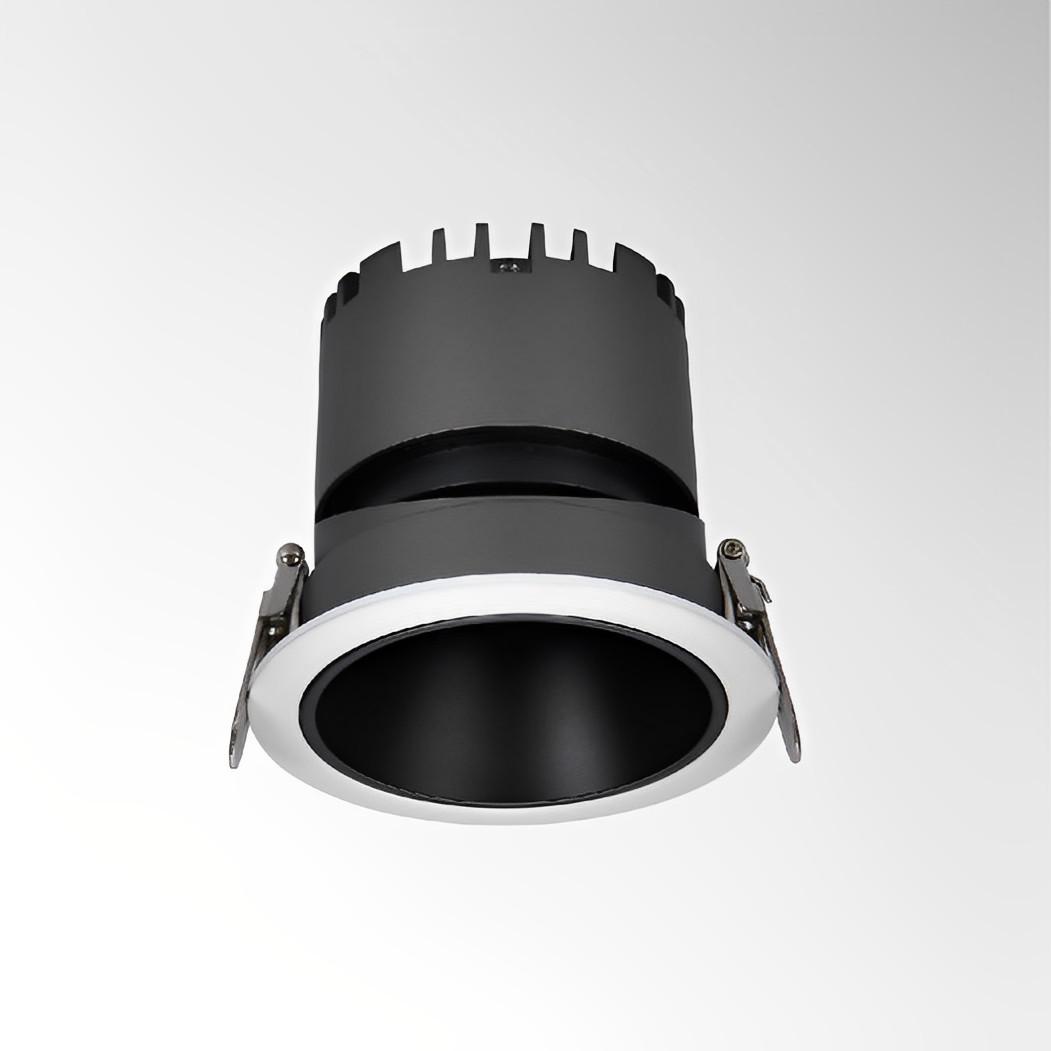

| LBE2015 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ85x75mm | Cut-outØ75mm |
| LBE2016 | Wattage12W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ105x65mm | Cut-outØ75mm |

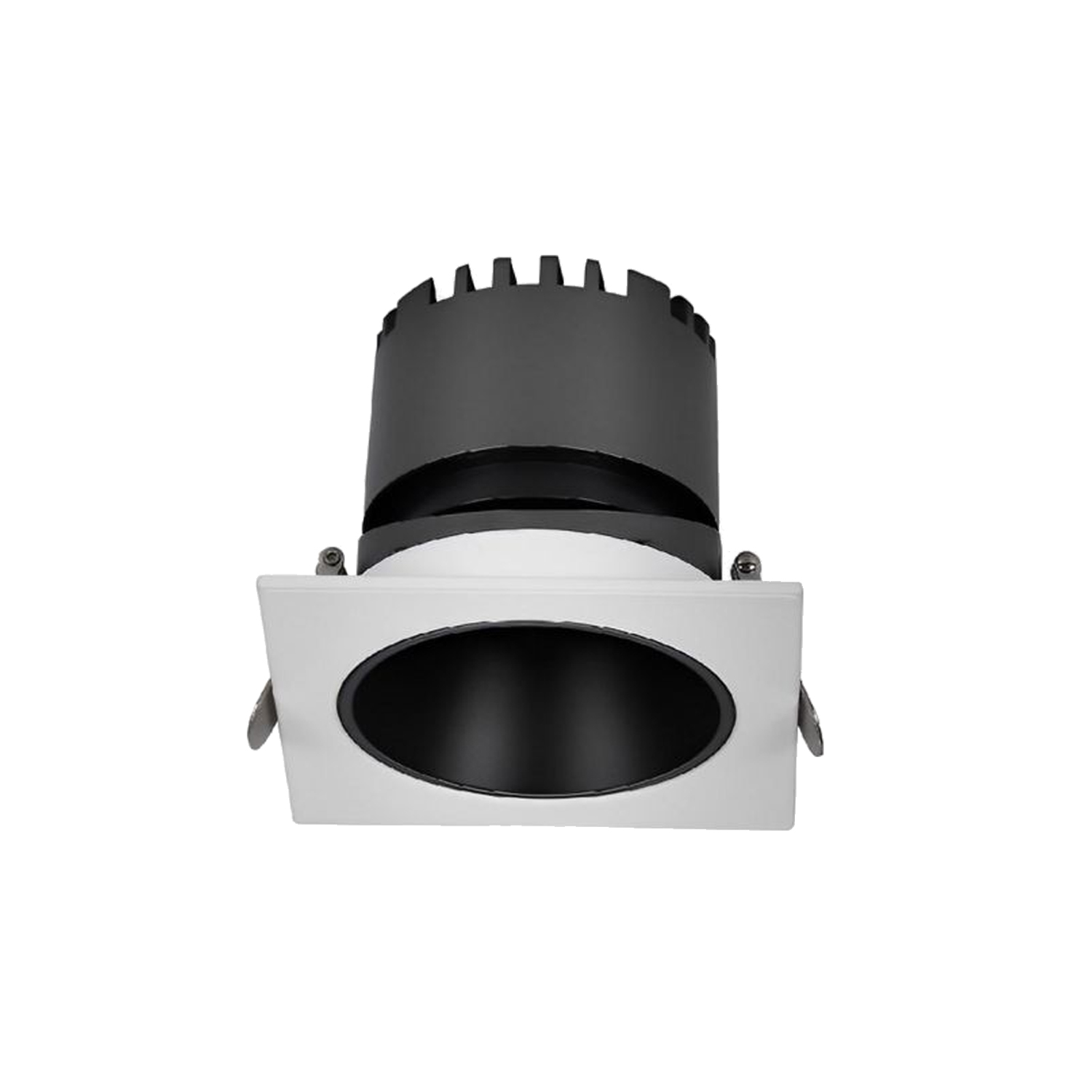

| LBE2017 | Wattage12W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions85x85x75mm | Cut-outØ75mm |
| LBE2018 | Wattage2x12W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions180x90x65mm | Cut-out162x75mm |

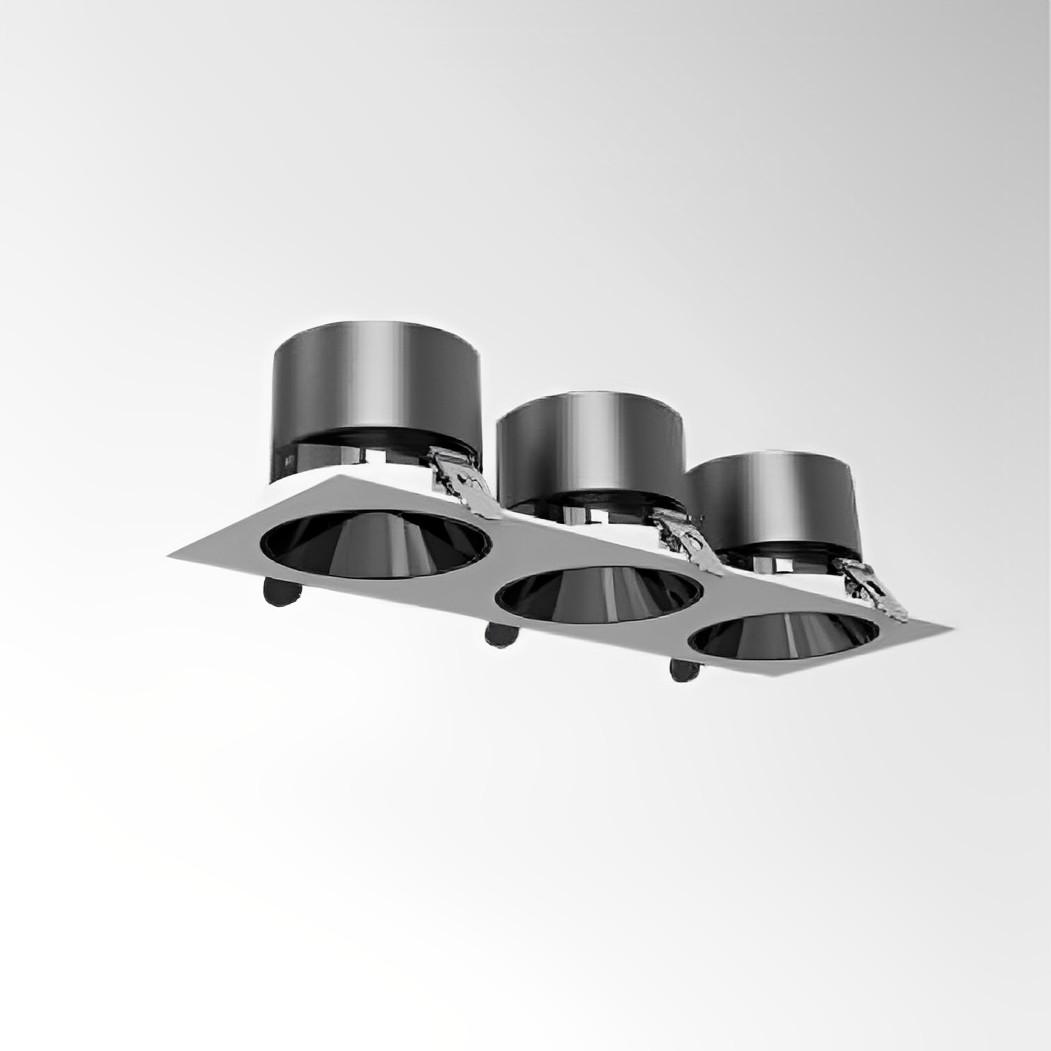

| LBE2019 | Wattage3x12W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions270x90x65mm | Cut-out250x65mm |

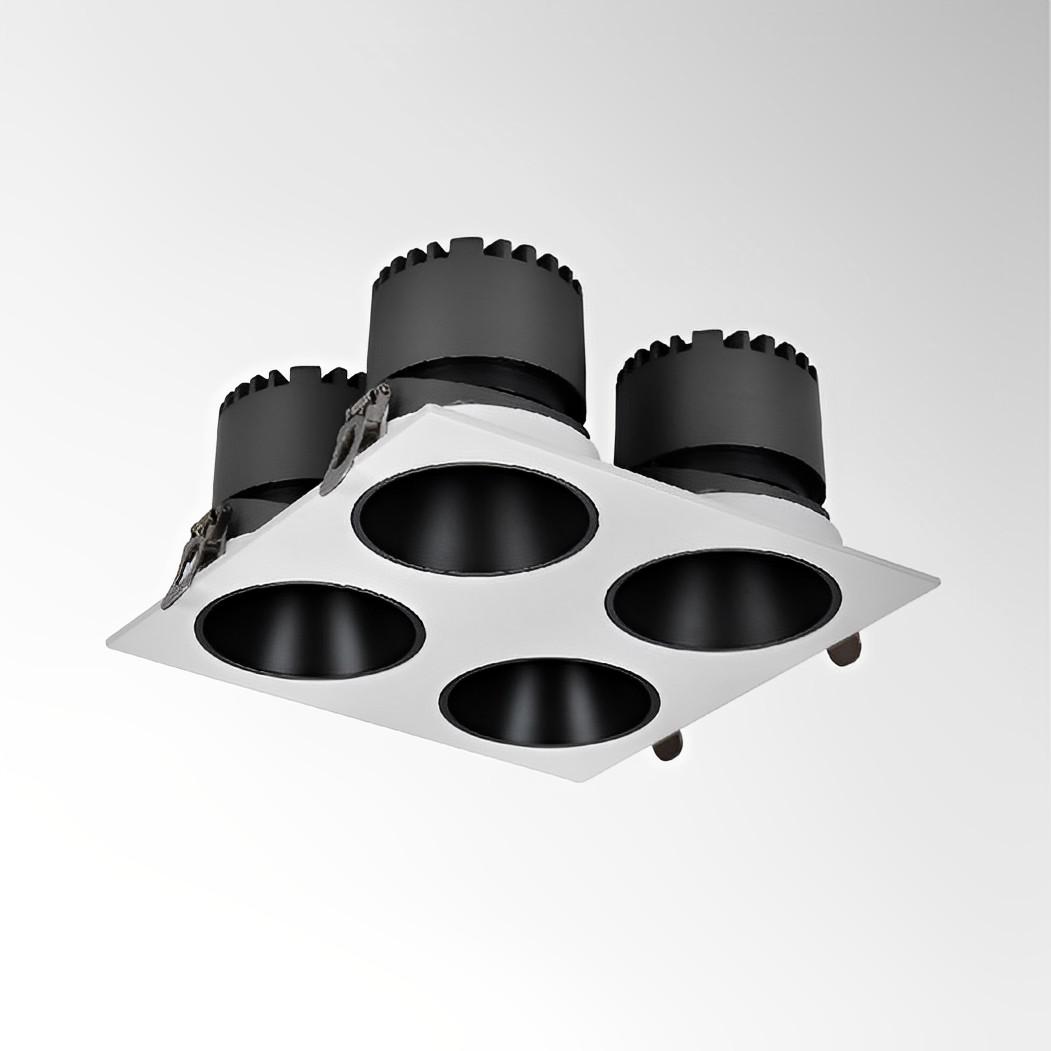

| LBE2020 | Wattage12W | CCT3000K | IPIP20 | Dimensions180x180x65mm | Cut-out162x162mm |
Technical Data
Full Specification
| Dimensions | Ø105x65mm · Ø65x55mm · Ø85x65mm · 90x90x65mm +8 more |
|---|---|
| Cut-out | Ø75mm · Ø55mm · 162x75mm · 250x75mm +2 more |
| Power | 9W · 12W · 7W · 2x9W +5 more |
| Lumen output | 330lm · 430lm · 860lm · 1290lm +5 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +4 more |
| CRI Ra | 90 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white+matt-white · White · black+chrome · black+matt-black +15 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
RAYOS recessed spotlight family
Compare RAYOS spotlight models and their compatible optical accessories in one place. Select the wattage, optic and finish required for the design, then check the exact model record for CCT, driver and installation details. A reflector is an accessory rather than a complete luminaire; show both clearly when assembling a project schedule.
Luminaires and accessories

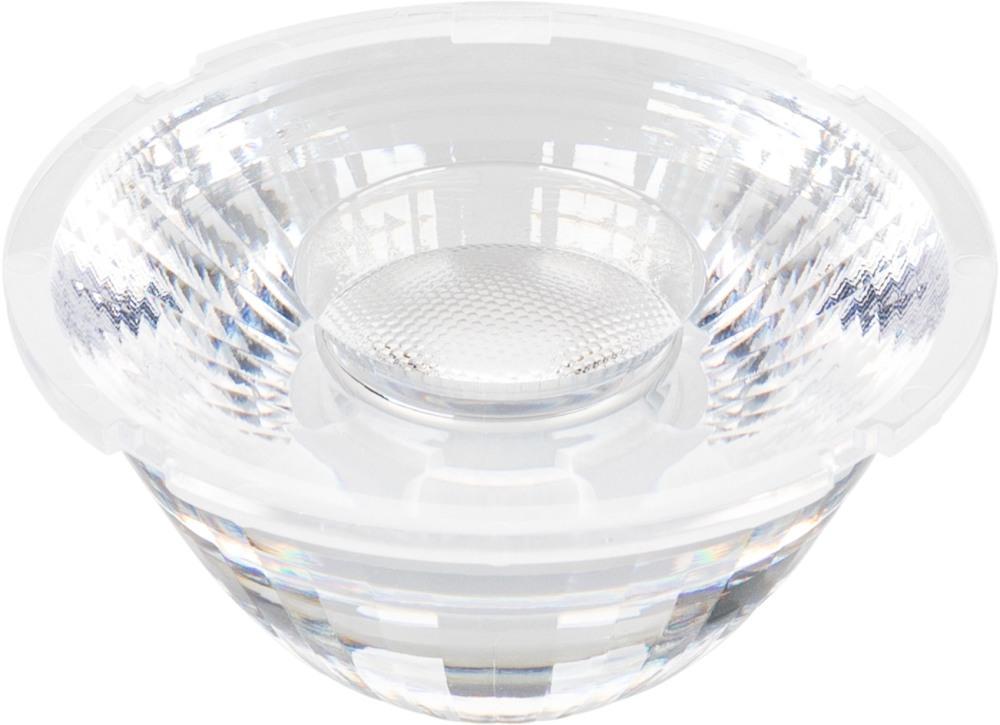

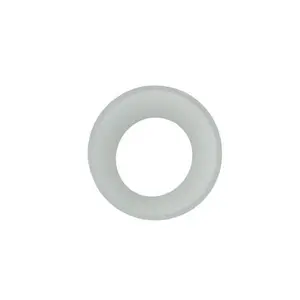

Reflectors and optical accessories are listed as components, not as complete luminaires.
Wattage and optic
Compare delivered output and beam angle per article code, not across the family.
CCT and driver
Confirm the colour temperature and driver for the selected article before the schedule is issued.
Ceiling coordination
Use the model cut-out and recess depth for the ceiling detail.
Technical files
Request the datasheet and photometric file for the exact luminaire and accessory combination.
How to compare beam angle, aiming range, glare accessories and model dimensions →
This family is a ceiling recessed spotlight range. Reflector accessories are counted and described separately from luminaires.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing

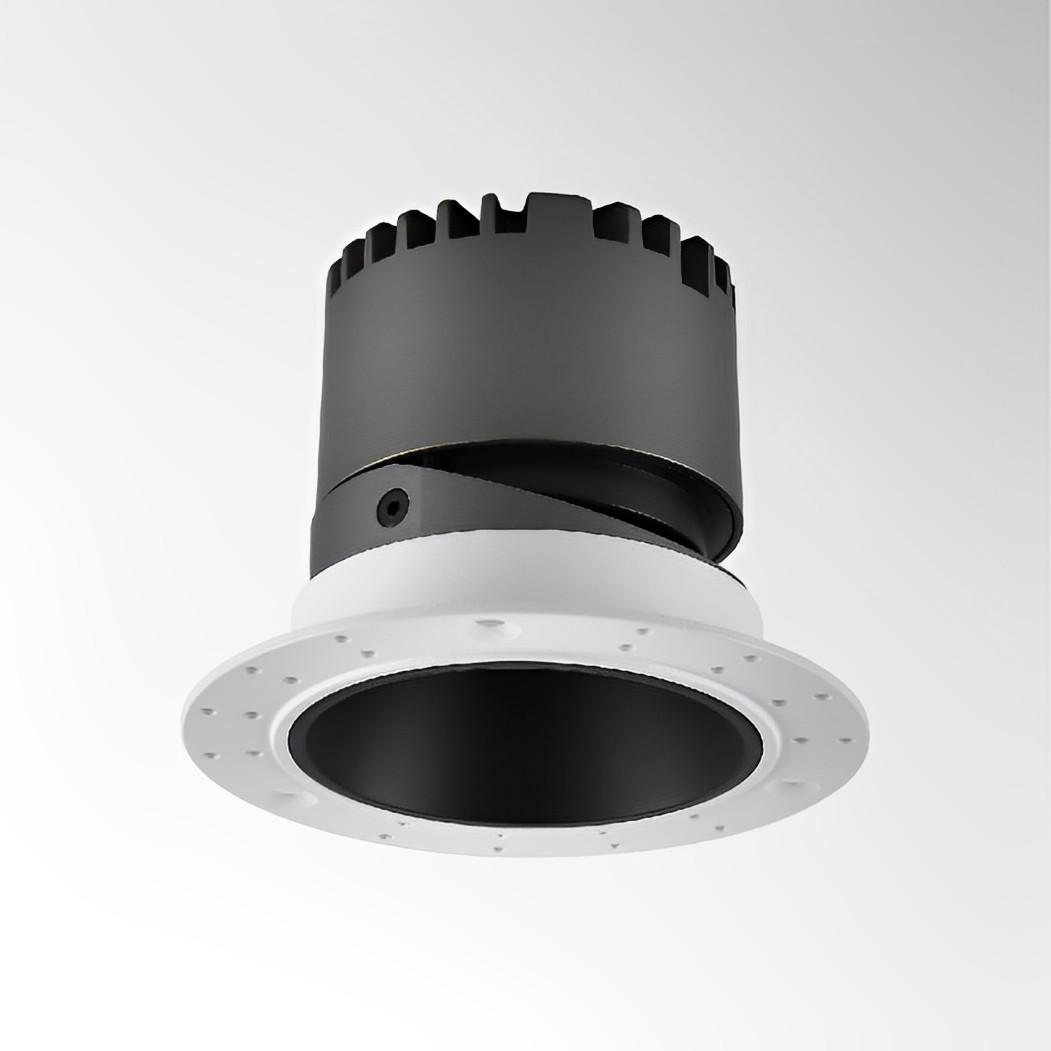

Drawing and sizes shown for model LBE2016. This family has 13 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2016
Ø105x65mm
Cut-Out
Ø75mm
Specifications
At a Glance
7–48W
Power Range
2 options
Beam: 24°, 36°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
Switch / Switch(3000K-4000K-6000K)
Colour Options
CRI 90
Colour Rendering
IP20
Protection Rating
13 finishes
Body Finish Options
12 sizes
105x75mm, 180x180x65mm, 180x90x65mm, 180x90x69mm, 270x90x65mm, 270x90x69mm, 85x85x75mm, 90x90x65mm, Ø105x65mm, Ø65x55mm, Ø85x65mm, Ø85x75mm
6 cut-outs
162x162mm, 162x75mm, 250x65mm, 250x75mm, Ø55mm, Ø75mm
Configure your product
LBE2016
Order code
Listed configurationLBE2016.W.930.WWH+PWH.36.DR
81 listed configurations · availability requires confirmation
