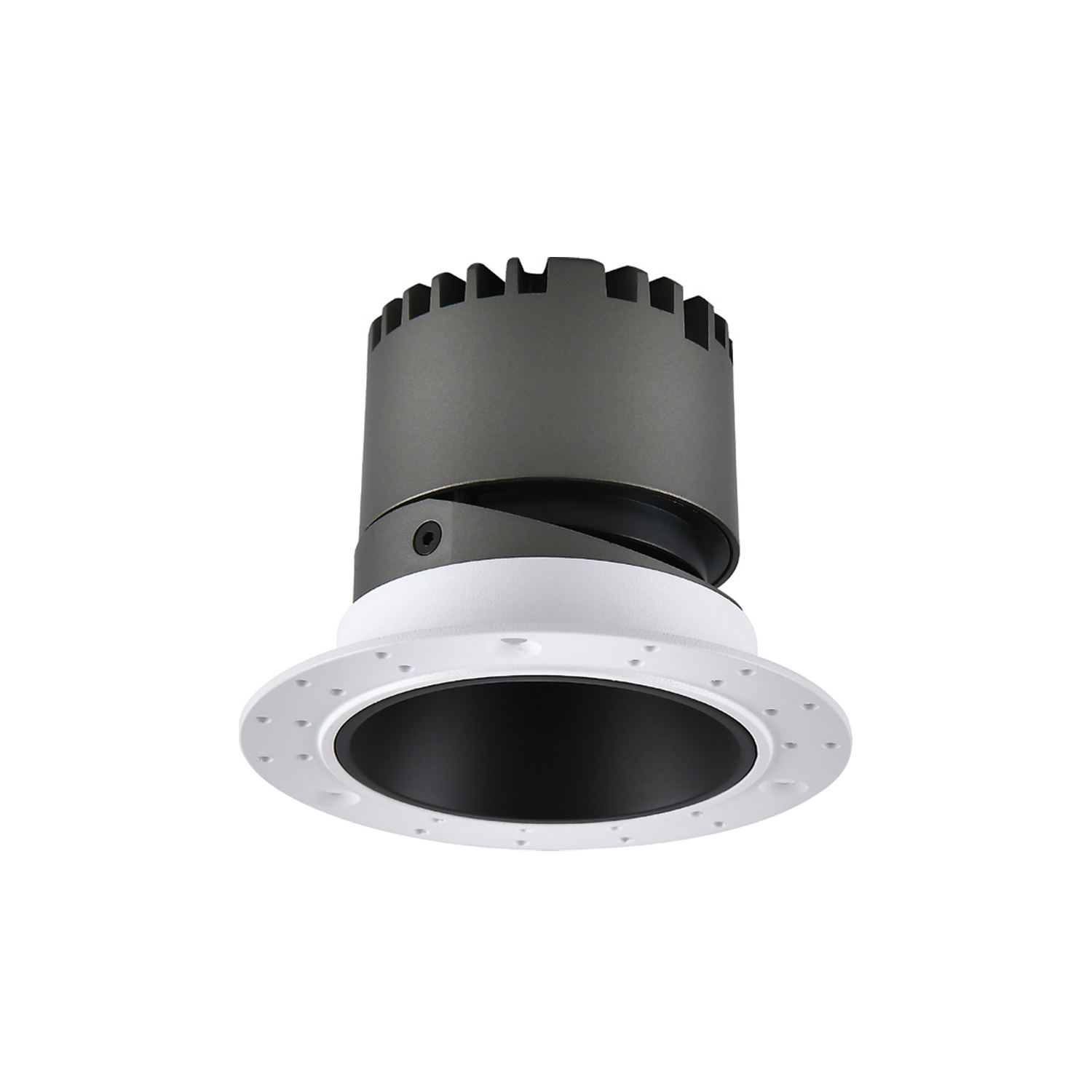

LBE2010 Spot Light
BASE: LBE2010RAYOS lighting solution with professional specifications
Specifications at a Glance
9W
Power
430lm
Lumen Output
Switch(3000K-4000K-6000K)
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
24° / 36°
Beam Angle
220-240VAC(With Driver)
Input
Ø75mm
Cutout Size
Ø105x65mm
Body Dimensions
White
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB
LED Chip
Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
20 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2010.S.9CCTS.WWH+PWH.36.DR
CCT:
Switch(3000K-4000K-6000K)
Power:9W
Lumen:430lm
Beam:
36°
Finish:
CRI >90IP20White
LBE2010.S.9CCTS.WWH+MBK.24.DR
CCT:
Switch(3000K-4000K-6000K)
Power:9W
Lumen:430lm
Beam:
24°
Finish:
CRI >90IP20White
LBE2010.S.9CCTS.WWH+PBK.24.DR
CCT:
Switch(3000K-4000K-6000K)
Power:9W
Lumen:430lm
Beam:
24°
Finish:
CRI >90IP20White
LBE2010.S.9CCTS.WBK+CRM.24.DR
CCT:
Switch(3000K-4000K-6000K)
Power:9W
Lumen:430lm
Beam:
24°
Finish:
CRI >90IP20White
LBE2010.S.9CCTS.WWH+SLV.36.DR
CCT:
Switch(3000K-4000K-6000K)
Power:9W
Lumen:430lm
Beam:
36°
Finish:
CRI >90IP20White
LBE2010.S.9CCTS.WBK+PBK.36.DR
CCT:
Switch(3000K-4000K-6000K)
Power:9W
Lumen:430lm
Beam:
36°
Finish:
CRI >90IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- RAYOS
- Family:
- RAYOS
- Dimension:
- Ø105x65mm
- Input Voltage:
- 220-240VAC(With Driver)
- Light Source:
- Bridgelux COB
- Material:
- Aluminum
- Cut-Out:
- Ø75mm
Catalogue Specification
- Light Source:
- Bridgelux COB
- Power:
- 9W
- Input Voltage:
- 220-240VAC(With Driver)
- Driver:
- 200mA/36VDC
- Lumen Output:
- 430lm
- CRI:
- >90
- Colour Temperature:
- 3000K/4000K/6000K (Switchable)
- Beam Angle:
- 24°/36°
- Material:
- Aluminum
- Body Finish:
- White/Black
- Reflector:
- Chrome/Mirror Black, Matt Black,Matt White, Silver
- IP Rating:
- IP20
- Dimensions:
- Ø105x65mm
- Cut-Out:
- Ø75mm
- Warranty:
- Written eligibility and policy confirmation required
- Catalogue conformity claim (evidence not verified):
- CE,RoHS
Dimension Drawing
Applications
Jewellery Display
Retail
