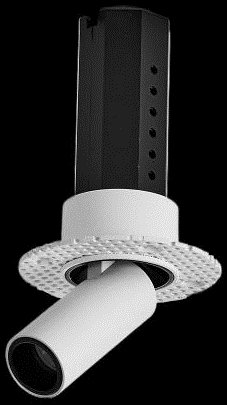

L01005 Spot Light
BASE: L01005REGOLARE lighting solution with professional specifications
Specifications at a Glance
8W
Power
620-776lm
Lumen Output
2700K3000K4000K6500K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP20
Protection Rating
15° / 24° / 36° / 60°
Beam Angle
LENS
UGR / Optics
AC220-240V
Input
Ø55mm
Cutout Size
Ø38*H74mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
32 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01005.927.01.24.DR
CCT:
2700K
Power:8W
Lumen:620-776lm
Beam:
24°
Finish:
CRI 90IP20White
L01005.927.01.36.DR
CCT:
2700K
Power:8W
Lumen:620-776lm
Beam:
36°
Finish:
CRI 90IP20White
L01005.927.01.60.DR
CCT:
2700K
Power:8W
Lumen:620-776lm
Beam:
60°
Finish:
CRI 90IP20White
L01005.930.01.24.DR
CCT:
3000K
Power:8W
Lumen:620-776lm
Beam:
24°
Finish:
CRI 90IP20White
L01005.930.01.36.DR
CCT:
3000K
Power:8W
Lumen:620-776lm
Beam:
36°
Finish:
CRI 90IP20White
L01005.930.01.60.DR
CCT:
3000K
Power:8W
Lumen:620-776lm
Beam:
60°
Finish:
CRI 90IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- REGOLARE
- Family:
- REGOLARE
- Dimension:
- Ø38*H74mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM
- Cut-Out:
- Ø55mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 8W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 620-776lm
- Beam Angle:
- 15°/24°/36°/60°
- CRI:
- 90
- IP Rating:
- IP20
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø38*H74mm
- Cut-Out:
- Ø55mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM
Applications
Hospitality
Jewellery Display
Office
Retail
Configure your product
L01005
Order code
Listed configurationL01005.927.01.24.DR
32 listed configurations · availability requires confirmation
