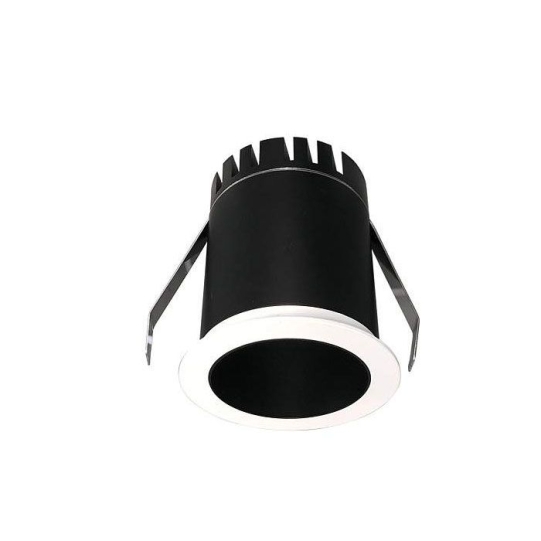

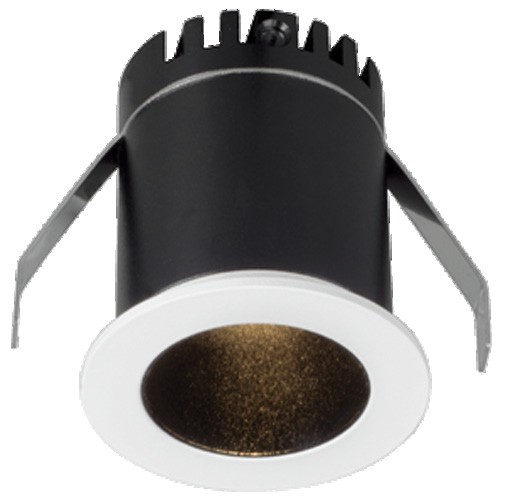

LB2827 Spot Light
BASE: LB2827ROUR lighting solution with professional specifications
Specifications at a Glance
5W
Power
2700K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
220-240VAC
Input
Ø40mm
Cutout Size
Ø45x50mm
Body Dimensions
BlackWhite+Black
Available Finishes
ceiling-recessed, track-mounted
Mounting Type
Osram3030
LED Chip
Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
2 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB2827.W.927.WWH+WBK.24.DR
CCT:
2700K
Power:5W
Lumen:80-85lm/
Beam:
24°
Finish:
CRI >90IP20White+Black
LB2827.W.927.WBK.24.DR
CCT:
2700K
Power:5W
Lumen:80-85lm/
Beam:
24°
Finish:
CRI >90IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- ROUR
- Family:
- ROUR
- Dimension:
- Ø45x50mm
- Input Voltage:
- 220-240VAC
- Light Source:
- Osram3030
- Material:
- Aluminum
- Cut-Out:
- Ø40mm
Catalogue Specification
- Light Source:
- Osram3030
- Power:
- 5W
- Input Voltage:
- 220-240VAC
- Driver:
- 1200mA/2-4VDC
- CRI:
- >90
- Colour Temperature:
- 2700K/3000K/4000K/5000K/6000K
- Beam Angle:
- 15° / 24° / 36° / 60°
- Dimensions:
- Ø45x50mm
- Cut-Out:
- Ø40mm
- Material:
- Aluminum
- Body Finish:
- White+Black
- IP Rating:
- IP20
- Warranty:
- Written eligibility and policy confirmation required
- Luminous Efficacy:
- 80-85lm/W
Applications
Hospitality
Jewellery Display
Residential
Retail
