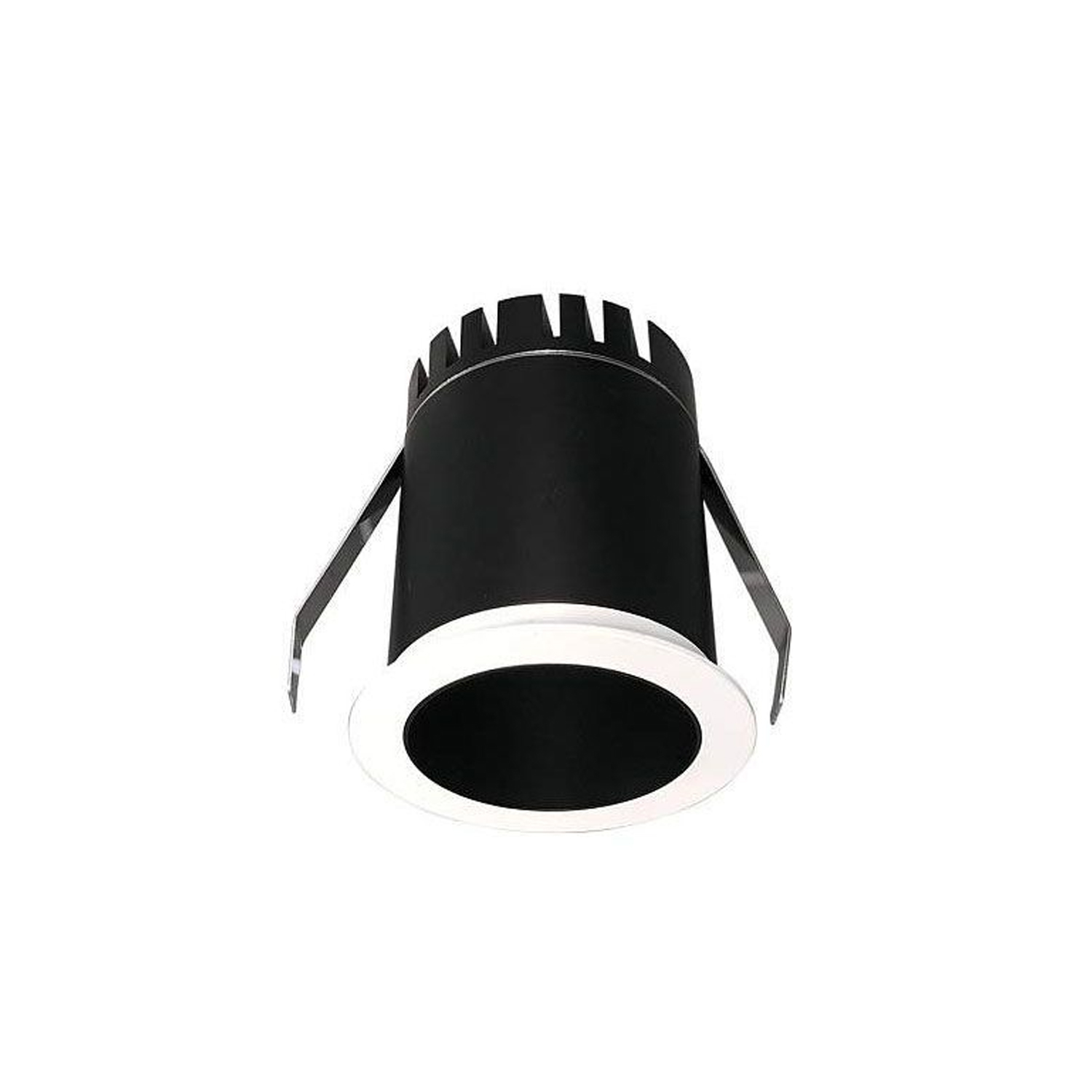

LB2828 Spot Light
BASE: LB2828ROUR lighting solution with professional specifications
Specifications at a Glance
7W
Power
2700K3000K4000K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
32° / 36°
Beam Angle
220-240VAC
Input
Ø50mm
Cutout Size
Ø57x68mm
Body Dimensions
WhiteWhite+Black
Available Finishes
ceiling-recessed, track-mounted
Mounting Type
Osram3030
LED Chip
Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
5 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB2828.W.927.WWH+WBK.36.DR
CCT:
2700K
Power:7W
Lumen:80-85lm/
Beam:
36°
Finish:
CRI >90IP20White+Black
LB2828.W.930.WWH.32.DR
CCT:
3000K
Power:7W
Lumen:80-85lm/
Beam:
32°
Finish:
CRI >90IP20White
LB2828.W.930.WWH+WBK.36.DR
CCT:
3000K
Power:7W
Lumen:80-85lm/
Beam:
36°
Finish:
CRI >90IP20White+Black
LB2828.W.930.WBK.36.DR
CCT:
3000K
Power:7W
Lumen:80-85lm/
Beam:
36°
Finish:
CRI >90IP20White+Black
LB2828.N.940.WWH+WBK.32.DR
CCT:
4000K
Power:7W
Lumen:80-85lm/
Beam:
32°
Finish:
CRI >90IP20White+Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- ROUR
- Family:
- ROUR
- Dimension:
- Ø57x68mm
- Input Voltage:
- 220-240VAC
- Light Source:
- Osram3030
- Material:
- Aluminum
- Cut-Out:
- Ø50mm
Catalogue Specification
- Light Source:
- Osram3030
- Power:
- 7W
- Input Voltage:
- 220-240VAC
- Driver:
- 180mA/25-40VDC
- CRI:
- >90
- Colour Temperature:
- 2700K/3000K/4000K/5000K/6000K
- Beam Angle:
- 15° / 24° / 36° / 60°
- Dimensions:
- Ø57x68mm
- Cut-Out:
- Ø50mm
- Material:
- Aluminum
- Body Finish:
- White+Black
- IP Rating:
- IP20
- Warranty:
- Written eligibility and policy confirmation required
- Luminous Efficacy:
- 80-85lm/W
Applications
Hospitality
Jewellery Display
Residential
Retail
Configure your product
LB2828
Order code
Listed configurationLB2828.W.927.WWH+WBK.36.DR
5 listed configurations · availability requires confirmation
