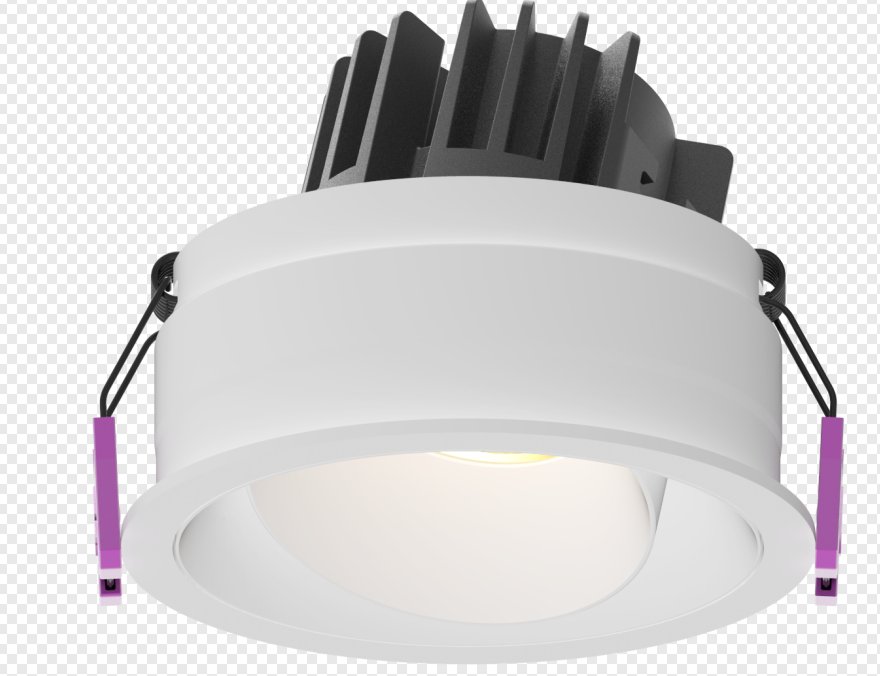

L01247 Ceiling Light
BASE: L01247RUSTAVI-AD lighting solution with professional specifications
Specifications at a Glance
15W
Power
1000lm
Lumen Output
2700K3000K4000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP32
Protection Rating
16° / 25° / 36°
Beam Angle
REFLECTOR
UGR / Optics
220-240VAC
Input
Ø92mm
Cutout Size
Ø100xH80mm
Body Dimensions
Non-DimmableDALITriac
Dimming Options
ceiling-recessed
Mounting Type
BridgeluxCOB
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
18 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01247.927.01.25.DR
CCT:
2700K
Power:15W
Lumen:1000lm
Beam:
CRI 90IP3225°
L01247.930.01.25.DR
CCT:
3000K
Power:15W
Lumen:1000lm
Beam:
CRI 90IP3225°
L01247.940.01.25.DR
CCT:
4000K
Power:15W
Lumen:1000lm
Beam:
CRI 90IP3225°
L01247.927.01.36.DR
CCT:
2700K
Power:15W
Lumen:1000lm
Beam:
CRI 90IP3236°
L01247.930.01.36.DR
CCT:
3000K
Power:15W
Lumen:1000lm
Beam:
CRI 90IP3236°
L01247.940.01.36.DR
CCT:
4000K
Power:15W
Lumen:1000lm
Beam:
CRI 90IP3236°
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- RUSTAVI-AD
- Family:
- RUSTAVI-AD
- Dimension:
- Ø100xH80mm
- Input Voltage:
- 220-240VAC
- Light Source:
- BridgeluxCOB
- Material:
- ALUMINUM
- Cut-Out:
- Ø92mm
Catalogue Specification
- Light Source:
- BridgeluxCOB
- Power:
- 15W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 1000lm
- Beam Angle:
- 16°/25°/36°
- CRI:
- 90
- IP Rating:
- IP32
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø100xH80mm
- Cut-Out:
- Ø92mm
- Optics:
- REFLECTOR
- Cover / Lens:
- PC
- Material:
- ALUMINUM
- Reflector:
- Matt White/Matt Black
Applications
Jewellery Display
Office
Configure your product
L01247
Order code
Listed configurationL01247.927.01.25.DR
18 listed configurations · availability requires confirmation
