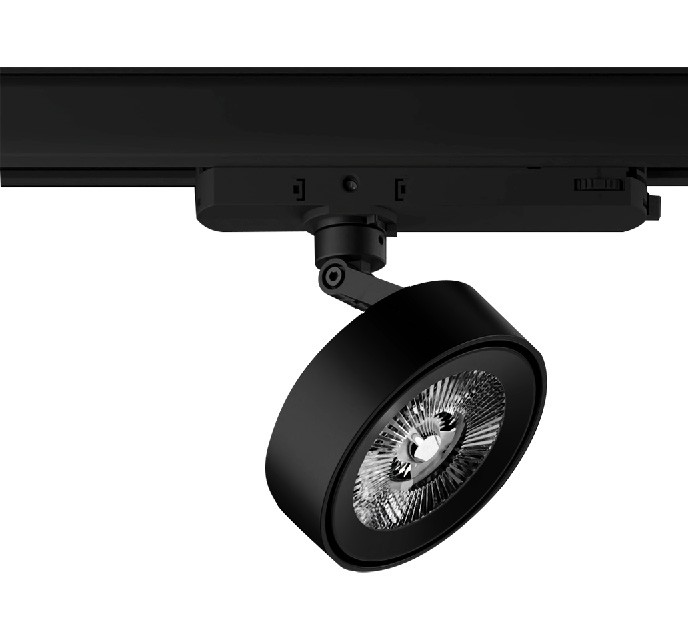

Specifications at a Glance
28W
Power
2520lm
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
IP20
Protection Rating
36°
Beam Angle
100-240VAC (ON/OFF)
Input
φ100*70*169mm
Body Dimensions
White With Sand
Available Finishes
track-mounted
Mounting Type
Bridgelux/TYF
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
indoor
Usage
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBP1011.W.930.PAW.36
Power:28W
Lumen:2520lm
Beam:
36°
Finish:
IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- TRACK LIGHT
- Family:
- SCHALTEN
- Dimension:
- φ100*70*169mm
- Input Voltage:
- 100-240VAC (ON/OFF)
- Light Source:
- Bridgelux/TYF
- Material:
- Aluminum
- Life Time:
- 50,000Hrs
- Usage:
- indoor
Catalogue Specification
- Light Source:
- Bridgelux/TYF
- Power:
- 28W
- Input Voltage:
- 100-240VAC (ON/OFF)
- Lumen Output:
- 2520lm
- CRI:
- 80+/ 90+
- Colour Temperature:
- 2700K/3000K/4000K/5000K/6000K
- Optional CCT:
- 6500K
- Beam Angle:
- 15°/24°/36°/60°/75°
- Tilt / Rotation:
- 90°/ 350°
- IP Rating:
- IP 20
- LED Life Time:
- 50,000Hrs
- Dimensions:
- φ100*70*169mm
- Body Finish:
- Black / White
- Material:
- Aluminum
- Track Adaptor:
- 4 wires 3phase Track adaptor 51mm
- Warranty:
- Written eligibility and policy confirmation required
Dimension Drawing
Applications
Jewellery Display
Retail
Configure your product
LBP1011
Order code
Listed configurationLBP1011.W.930.PAW.36
1 listed configurations · availability requires confirmation
