LBP2000 Spot Light
BASE: LBP2000SPOT lighting solution with professional specifications
.jpg)
Specifications at a Glance
20W
Power
2200lm
Lumen Output
2700K3000K
Available Colour Temperatures
CRI 80+/90+
Colour Rendering Index
IP20
Protection Rating
15° / 24° / 36°
Beam Angle
500mA/20-40VDC
Input
Ø80mm
Cutout Size
Ø86*H110mm
Body Dimensions
Black With SandWhite With SandWhite With Sand+Black
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
TYF COB
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
18 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBP2000.W.927.PAB.15
CCT:
2700K
Power:20W
Lumen:2200lm
Beam:
15°
Finish:
CRI 80+/90+IP20Black
LBP2000.W.927.PAB.24
CCT:
2700K
Power:20W
Lumen:2200lm
Beam:
24°
Finish:
CRI 80+/90+IP20Black
LBP2000.W.927.PAB.36
CCT:
2700K
Power:20W
Lumen:2200lm
Beam:
36°
Finish:
CRI 80+/90+IP20Black
LBP2000.W.927.PAW.15
CCT:
2700K
Power:20W
Lumen:2200lm
Beam:
15°
Finish:
CRI 80+/90+IP20White
LBP2000.W.927.PAW.24
CCT:
2700K
Power:20W
Lumen:2200lm
Beam:
24°
Finish:
CRI 80+/90+IP20White
LBP2000.W.927.PAW.36
CCT:
2700K
Power:20W
Lumen:2200lm
Beam:
36°
Finish:
CRI 80+/90+IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Family:
- SENSE
- Dimension:
- Ø86*H110mm
- Input Voltage:
- 500mA/20-40VDC
- Light Source:
- TYF COB
- Material:
- Aluminum
- Life Time:
- 50,000Hrs
- Cut-Out:
- Ø80mm
Catalogue Specification
- Light Source:
- TYF COB
- Power:
- 20W
- Input Voltage:
- 500mA/20-40VDC
- Lumen Output:
- 2200lm
- CRI:
- 80+/90+
- Colour Temperature:
- 2700K/3000K/3500K/4000K
- Beam Angle:
- 15/24/36°
- Power Factor:
- 0.90
- IP Rating:
- IP20
- LED Life Time:
- 50,000Hrs
- Dimensions:
- Ø86*H110mm
- Cut-Out:
- Ø80mm
- Body Finish:
- Black / White / Silver
- Material:
- Aluminum
- Reflector:
- Aluminum
- Heatsink:
- Die cast aluminum
- Warranty:
- Written eligibility and policy confirmation required
- Catalogue conformity claim (evidence not verified):
- CE

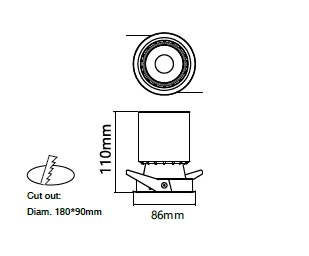

Dimension Drawing
Applications
Jewellery Display
Retail
Configure your product
LBP2000
Order code
Listed configurationLBP2000.W.927.PAB.15
18 listed configurations · availability requires confirmation
