Lumi Indoor
SPARK
Application inspiration · not a project reference
SPARK is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
SPARK
SPARK is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 5 article codes under this family, including LB3326, LBP3000, LBP3003. For LB3326, published values include power: 15W; colour temperature: 2700K, 3000K, 4000K, 6000K; IP rating: IP65; dimensions: Ø106x43mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the SPARK articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB3326 | Wattage15W | CCT2700K, 3000K, 4000K, 6000K | IPIP65 | DimensionsØ106x43mm | Cut-outØ90mm |

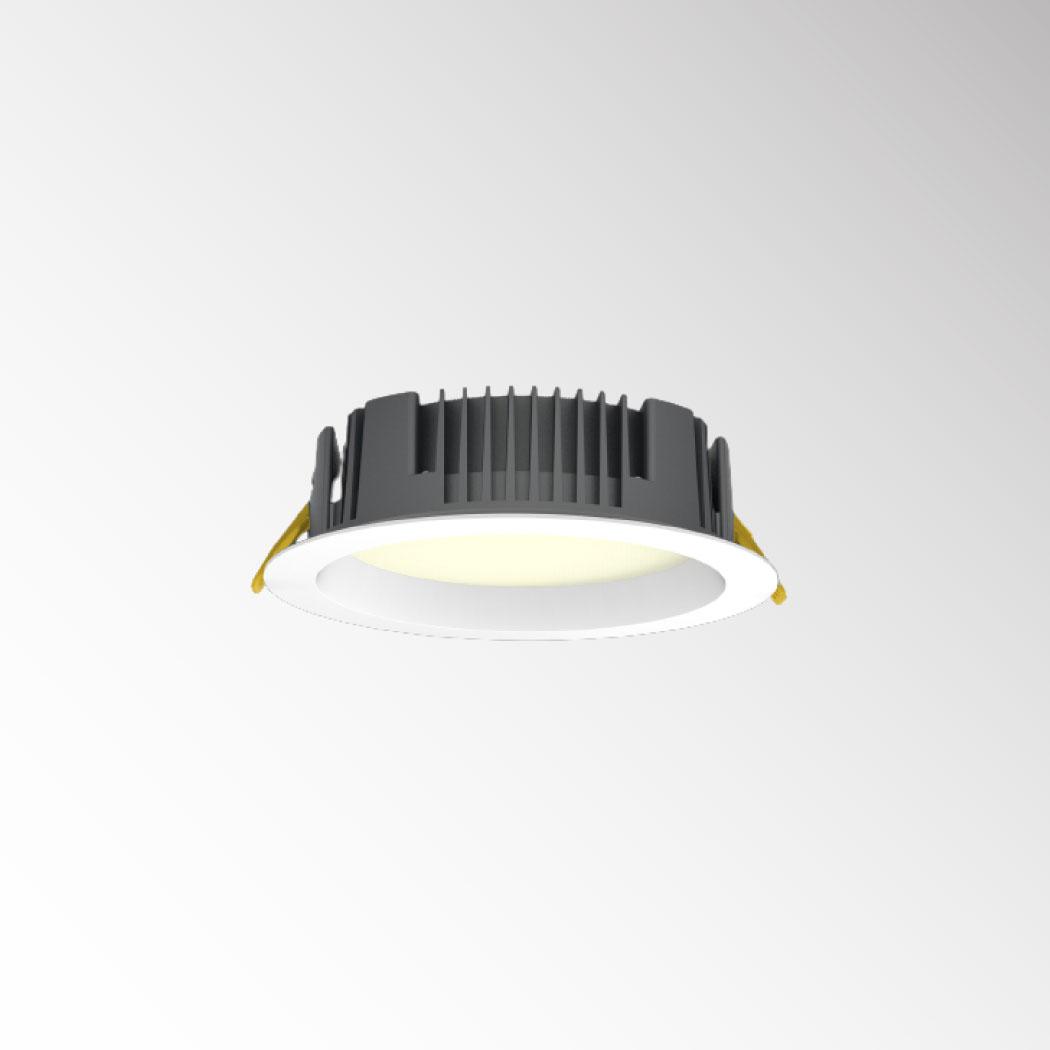

| LBP3000 | Wattage25W | CCT3000K/4000K/5000K (Tunable) | IPIP20 | DimensionsØ142xH52mm | Cut-outØ125-130mm |

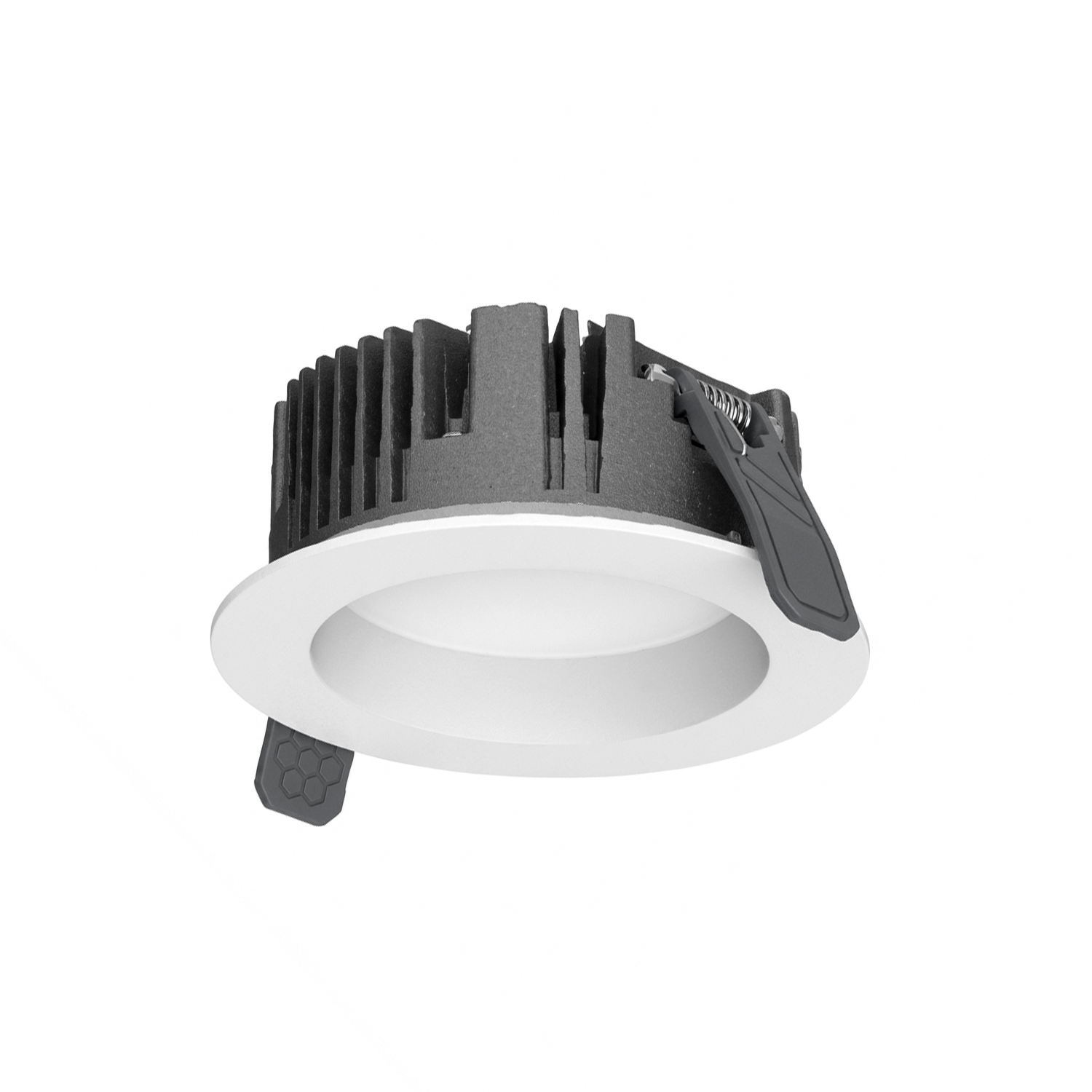

| LBP3003 | Wattage25W | CCT2700K/6000K (Tunable) | IPIP65 | DimensionsØ142xH52mm | Cut-outØ125-130mm |

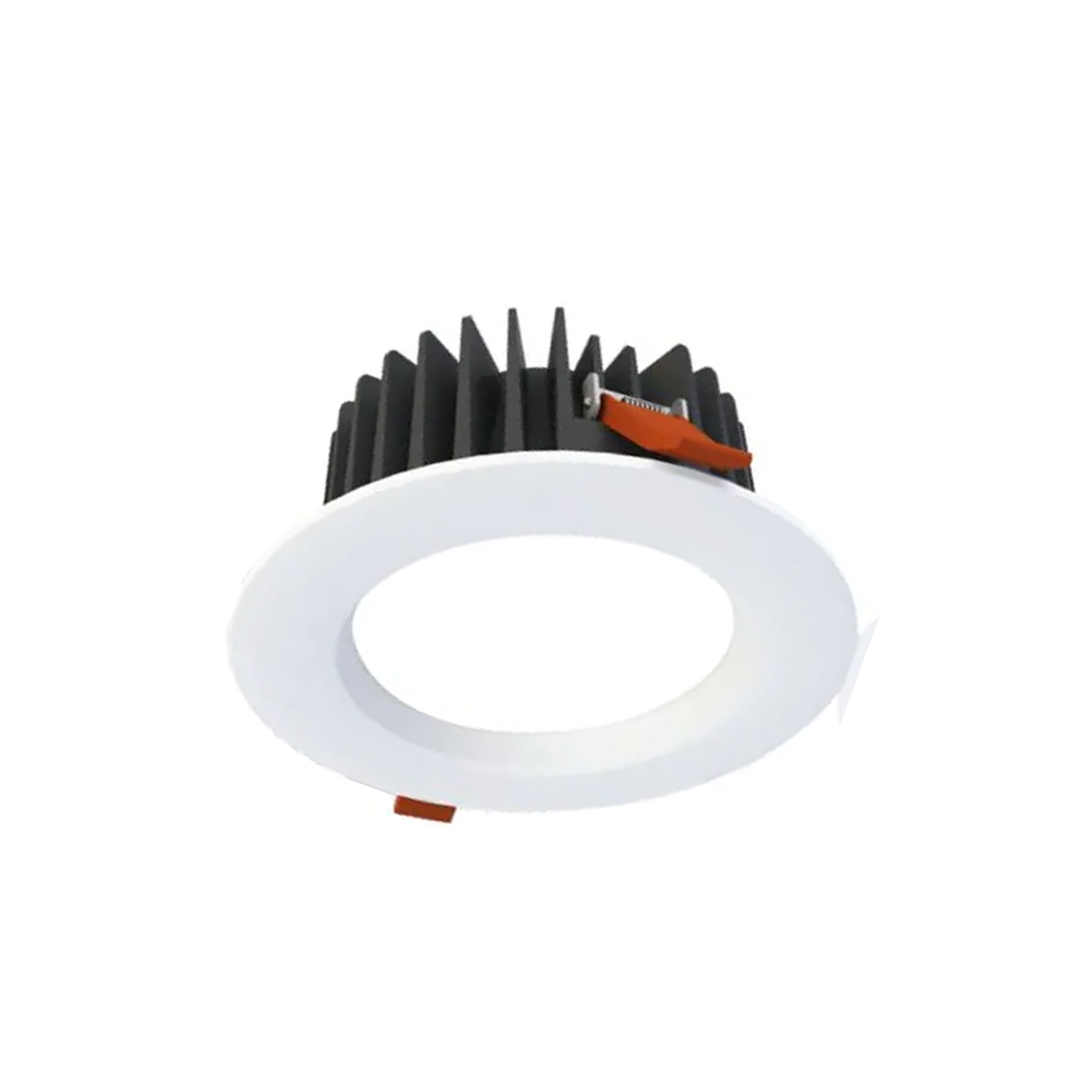

| LBP3004 | Wattage24W(R=6W, G=6W, B=6W, W=6W) | CCT3000K | IPIP20 | DimensionsØ147xH64mm | Cut-outØ125 |

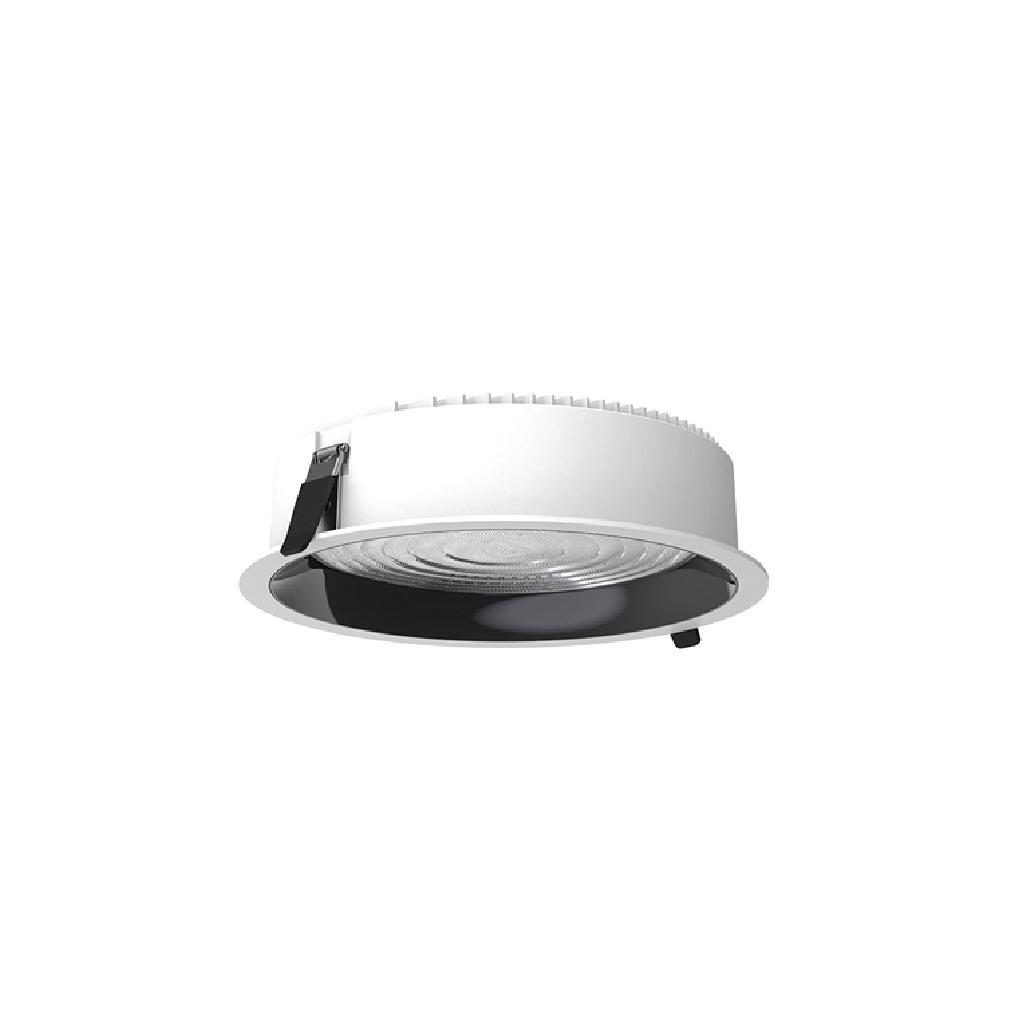

| LBP3005 | Wattage30W | CCT3000K | IPIP20 | DimensionsØ220*60mm | Cut-outØ200mm |
Technical Data
Full Specification
| Dimensions | Ø142xH52mm · Ø106x43mm · Ø147xH64mm · Ø220*60mm |
|---|---|
| Cut-out | Ø125-130mm · Ø90mm · Ø125 · Ø200mm |
| Power | 25W · 24W(R=6W, G=6W, B=6W, W=6W) |
| Lumen output | R=128Lm G=412Lm B=70Lm W=565Lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° · 90° · 100° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +5 more |
| CRI Ra | 80 · 90 · Ra>80(90 Option) · Ra>90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 24VDC |
| Light source | Not published — technical review required |
| Material | Die-casting Aluminium |
| Finish | white · black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP3000. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP3000
Ø142xH52mm
Cut-Out
Ø125-130mm
Specifications
At a Glance
15–30W
Power Range
3 options
Beam: 60°, 90°, 100°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CCT TUNABLE / RGBW(3000K) / TUNABLE(3000K,4000K,5000K)
Colour Options
CRI 80/90
Colour Rendering
IP20 / IP65
Protection Rating
3 finishes
Body Finish Options
4 sizes
Ø106x43mm, Ø142xH52mm, Ø147xH64mm, Ø220*60mm
4 cut-outs
Ø125, Ø125-130mm, Ø200mm, Ø90mm
Configure your product
LBP3000
Order code
Listed configurationLBP3000.T.8TW1.WWH.90.DDR
2 listed configurations · availability requires confirmation
